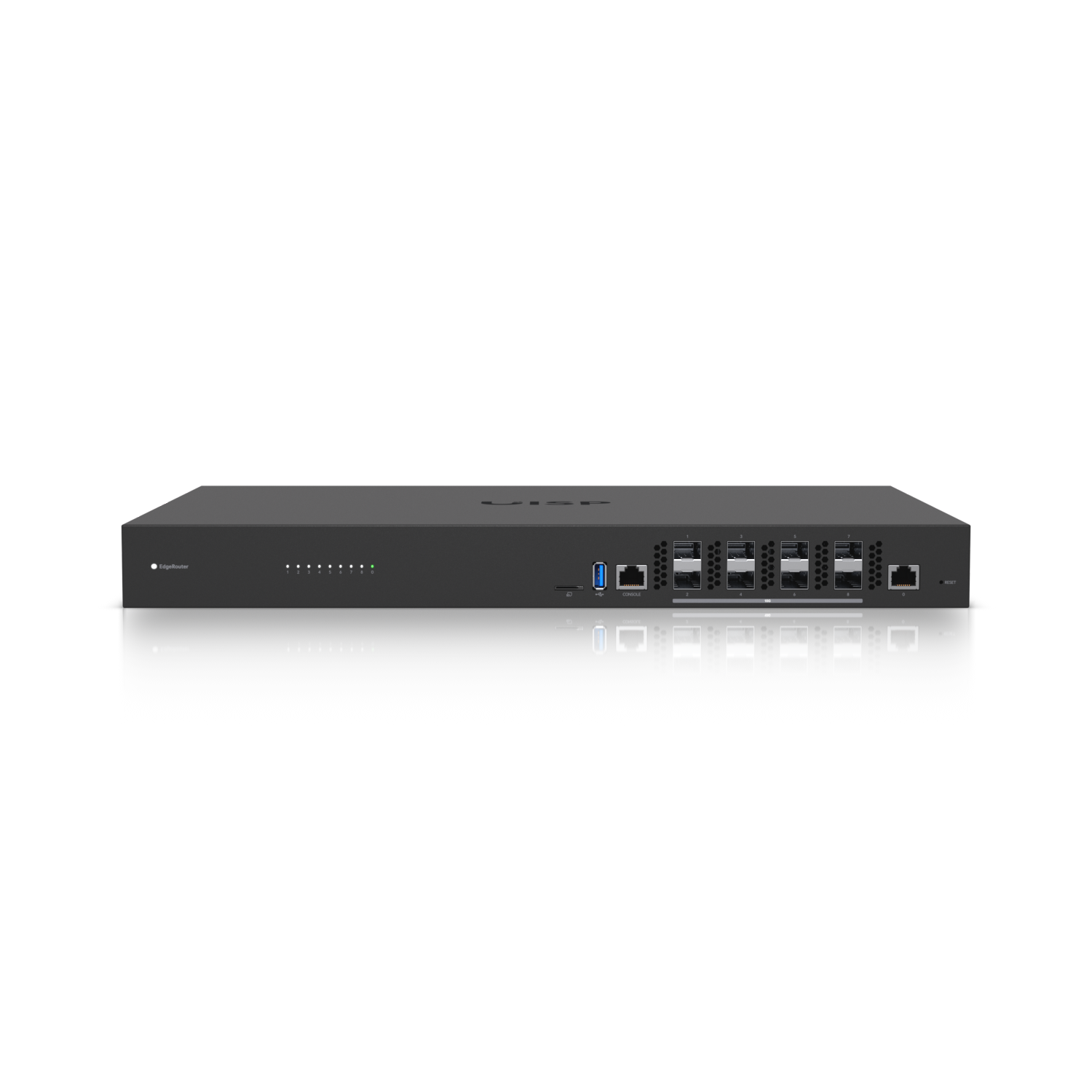

ER-8-XG

ER-8-XG

Product Overview

Mechanical
Dimensions442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight5 kg (10.9 lb)
Enclodure materialSGCC steel
Hardware
System memory16 GB DDR4 RAM
On-board flash storage8 MB NOR
4 GB eMMC NAND
Management interface(1) RJ45 CLI management port
Networking interface(1) GbE RJ45 port
(8) 10G SFP+ ports
Total non-blocking throughput80 Gbps
Switching capacity160 Gbps
Forwarding rate18 Mpps
Power method(2) Hot-swappable AC/DC (Included) or DC/DC (Not included) PSU, 100W
Supported voltage rangeAC/DC: 100–240V AC, 24V DC output
DC/DC: 38–54V DC, 24V DC output
Max. power consumption100W
ESD/EMP protectionAir/contact: ± 24kV
LEDsSystem: status
Ethernet ports: link/activity
SFP+ ports: link/activity
ButtonFactory reset
MountingYes, 1U
Ambient operating temperature-5 to 40° C (23 to 104° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC

Technical Specifications

Mechanical
Dimensions442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight5 kg (10.9 lb)
Enclodure materialSGCC steel
Hardware
System memory16 GB DDR4 RAM
On-board flash storage8 MB NOR
4 GB eMMC NAND
Management interface(1) RJ45 CLI management port
Networking interface(1) GbE RJ45 port
(8) 10G SFP+ ports
Total non-blocking throughput80 Gbps
Switching capacity160 Gbps
Forwarding rate18 Mpps
Power method(2) Hot-swappable AC/DC (Included) or DC/DC (Not included) PSU, 100W
Supported voltage rangeAC/DC: 100–240V AC, 24V DC output
DC/DC: 38–54V DC, 24V DC output
Max. power consumption100W
ESD/EMP protectionAir/contact: ± 24kV
LEDsSystem: status
Ethernet ports: link/activity
SFP+ ports: link/activity
ButtonFactory reset
MountingYes, 1U
Ambient operating temperature-5 to 40° C (23 to 104° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
