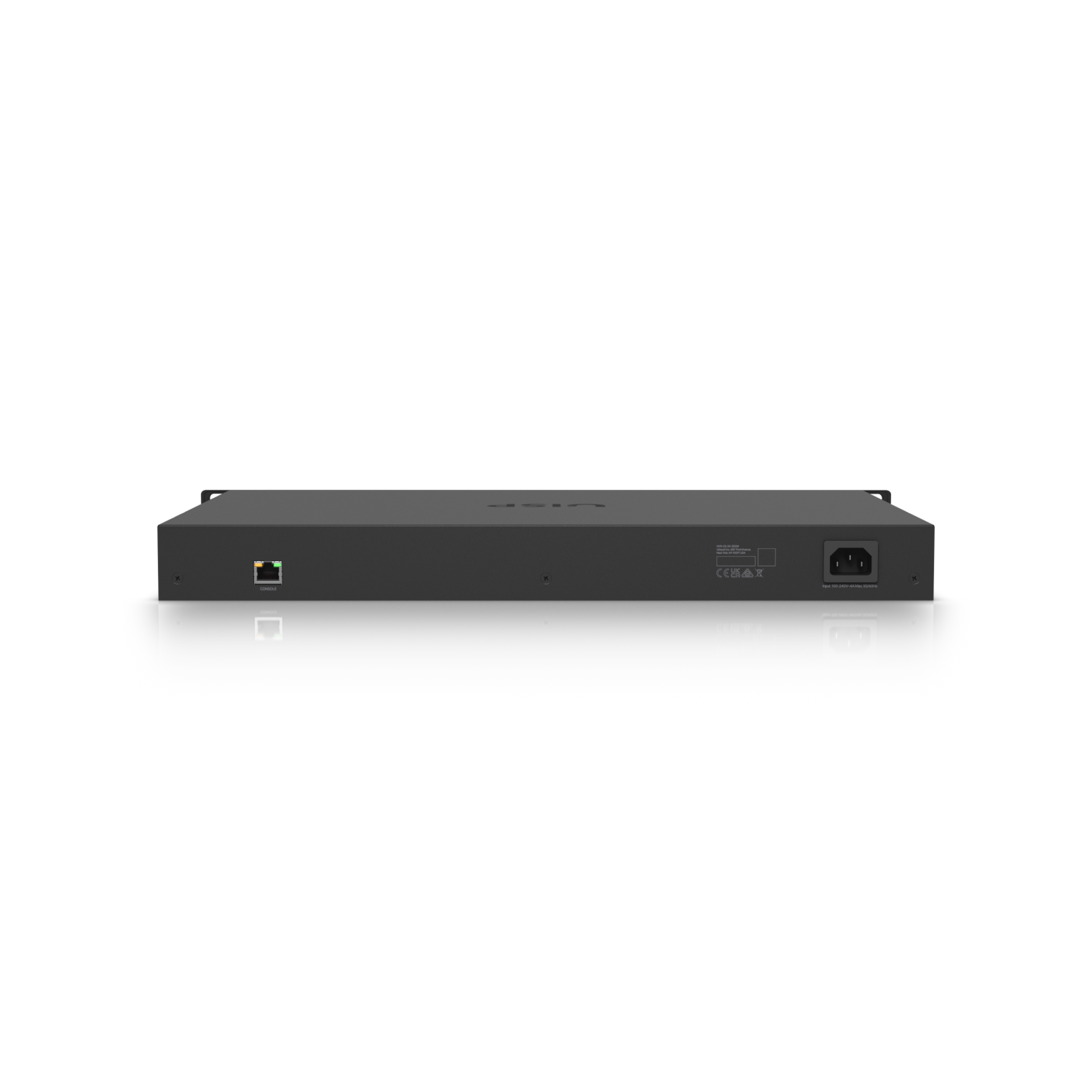

ES-24-250W

Product Overview

Mechanical
Dimensions	485 x 43.7 x 285.4 mm (19.1 x 1.7 x 11.2")
Weight	4.7 kg (10.4 lb)
Hardware
Management interface	(1) RJ45 serial port, Ethernet In/Out-Band
Networking interface	(24) GbE RJ45 ports (2) 1G SFP ports
PoE interface	(24) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-) (24) 24V DC passive PoE 2-pair (Pins 4, 5+; 7, 8-)
Total non-blocking throughput	26 Gbps
Switching capacity	52 Gbps
Forwarding rate	38.69 Mpps
Power method	100-240V AC, universal input, 50/60 Hz
Power supply	AC/DC, internal, 250W
Max. power consumption	30W (Excludes PoE output)
Total PoE available	250W
Max. PoE wattage per portby PSE	PoE+: 34.2W Passive PoE: 17W
Voltage range PoE mode	PoE+: 50–57V Passive PoE: 20–27V
ESD/EMP protection	Air/contact: ±24 kV
LEDs	Ethernet ports: PoE, speed/link/activity SFP ports: speed/link/activity
Button	Factory reset
Rackmount	Yes, 1U
Shock and vibration	ETSI300-019-1.4 Standard
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC

Mechanical
Dimensions	485 x 43.7 x 285.4 mm (19.1 x 1.7 x 11.2")
Weight	4.7 kg (10.4 lb)
Hardware
Management interface	(1) RJ45 serial port, Ethernet In/Out-Band
Networking interface	(24) GbE RJ45 ports (2) 1G SFP ports
PoE interface	(24) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-) (24) 24V DC passive PoE 2-pair (Pins 4, 5+; 7, 8-)
Total non-blocking throughput	26 Gbps
Switching capacity	52 Gbps
Forwarding rate	38.69 Mpps
Power method	100-240V AC, universal input, 50/60 Hz
Power supply	AC/DC, internal, 250W
Max. power consumption	30W (Excludes PoE output)
Total PoE available	250W
Max. PoE wattage per portby PSE	PoE+: 34.2W Passive PoE: 17W
Voltage range PoE mode	PoE+: 50–57V Passive PoE: 20–27V
ESD/EMP protection	Air/contact: ±24 kV
LEDs	Ethernet ports: PoE, speed/link/activity SFP ports: speed/link/activity
Button	Factory reset
Rackmount	Yes, 1U
Shock and vibration	ETSI300-019-1.4 Standard
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
