Ethernet to SC MM Fiber Media Converter
Ethernet to SC MM Fiber Media Converter
Product Overview
StarTech.com Transceiver/Media Converter - TAA Compliant - 2 Port(s) - 1 x Network (RJ-45) - 1 x SC - Duplex SC Port - Optical Fiber, Twisted Pair - Multi-mode - Fast Ethernet - 10/100Base-TX, 100Base-FX - 2 km - AC Adapter - Desktop, Rack-mountable
The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

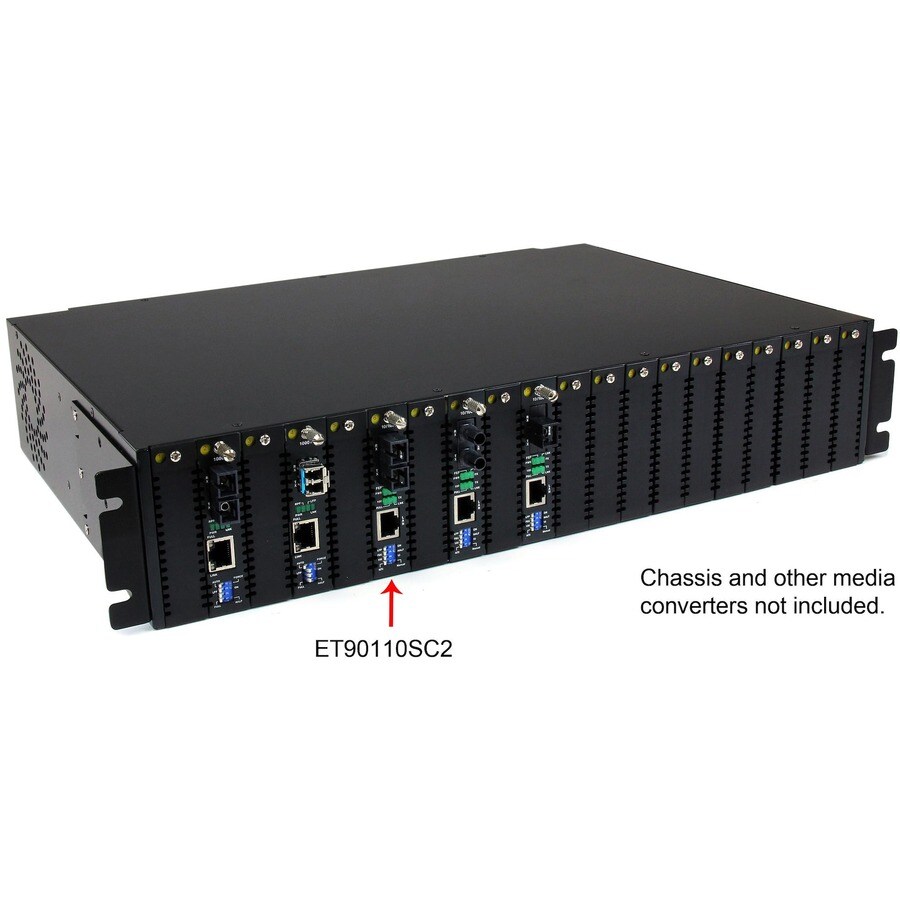

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Technical Specifications
Network & Communication
| Network Technology | 100Base-FX |
| 10/100Base-TX |
Power Description
| Input Voltage | 12 V DC |
| Power Source | AC Adapter |
| Plug/Connector Type | Type M |
Miscellaneous
| Compatibility | ETCHS2U Rackmount Chassis |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
Interfaces/Ports
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Digital Audio | No |
| Number of SC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
Media & Performance
| Maximum Distance Supported | 2 km |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Wavelength | 1310 nm |
Physical Characteristics
| Weight (Approximate) | 391.2 g |
| Height | 22.9 mm |
| Width | 86.4 mm |
| Depth | 152.4 mm |
| Product Color | Black |
| Color Family | Black |
General Information
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | ET90110SC2 |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km |
| Brand Name | StarTech.com |
