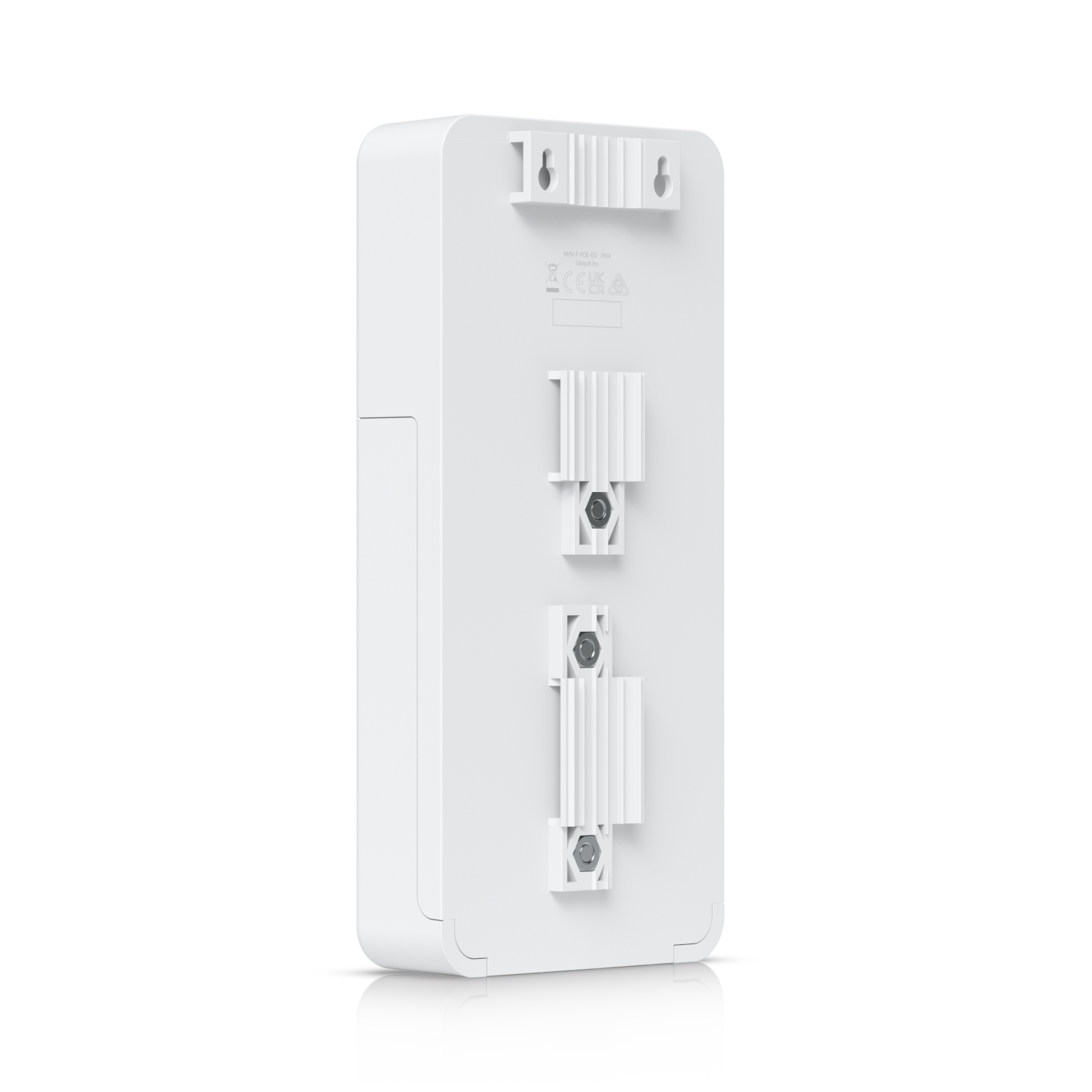

F-POE-G2

Product Overview

Mechanical
Dimensions	196.4 x 93.5 x 32.4 mm ( 7.7 x 3.7 x 1.3")
Weight	288 g (10.2 oz)
Enclosure material	Polycarbonate
Hardware
Networking interface	(1) 1 Gbps SFP port (1) DC terminal block (1) DC RJ45 port DC injection (1) GbE PoE port* *10/100 MbE not supported.
Typical power consumption	1.5W
Power method	DC terminal block, 2-wire, 24V DC/50 VDC DC in RJ45 port, 2-pair (4, 5+; 7, 8-) (24V DC input), or 4-pair (24V DC/50V DC input) passthrough PoE RJ45 port, 2-pair (4, 5+; 7, 8-) (24V DC input), or 4-pair (24V DC/50V DC input) PoE passthrough
PoE output	PoE RJ45 port, 24V DC, 2-pair (4, 5+; 7, 8-), or 24V DC/50V DC 4-pair PoE
DC output	Terminal block, 24V DC/50V DC, 2-wire
Input DC voltage	16–57V
Surge protection	Built-in high-current gas discharge tube for DC terminal block and PoE port
ESD/EMP protection	± 24kV Contact / Air for Ethernet
LED	White: power On Blue: connected Flashin blue: activity
Ambient operating temperature	-40 to 60° C (-40 to 140° F)* *May be further restricted by the operating temperature range of the SFP module being used.
Ambient operating humidity	10 to 95% noncondensing
Certifications	CE, FCC, IC

Mechanical
Dimensions	196.4 x 93.5 x 32.4 mm ( 7.7 x 3.7 x 1.3")
Weight	288 g (10.2 oz)
Enclosure material	Polycarbonate
Hardware
Networking interface	(1) 1 Gbps SFP port (1) DC terminal block (1) DC RJ45 port DC injection (1) GbE PoE port* *10/100 MbE not supported.
Typical power consumption	1.5W
Power method	DC terminal block, 2-wire, 24V DC/50 VDC DC in RJ45 port, 2-pair (4, 5+; 7, 8-) (24V DC input), or 4-pair (24V DC/50V DC input) passthrough PoE RJ45 port, 2-pair (4, 5+; 7, 8-) (24V DC input), or 4-pair (24V DC/50V DC input) PoE passthrough
PoE output	PoE RJ45 port, 24V DC, 2-pair (4, 5+; 7, 8-), or 24V DC/50V DC 4-pair PoE
DC output	Terminal block, 24V DC/50V DC, 2-wire
Input DC voltage	16–57V
Surge protection	Built-in high-current gas discharge tube for DC terminal block and PoE port
ESD/EMP protection	± 24kV Contact / Air for Ethernet
LED	White: power On Blue: connected Flashin blue: activity
Ambient operating temperature	-40 to 60° C (-40 to 140° F)* *May be further restricted by the operating temperature range of the SFP module being used.
Ambient operating humidity	10 to 95% noncondensing
Certifications	CE, FCC, IC

Current Price

AUD 62.73
