Product Overview

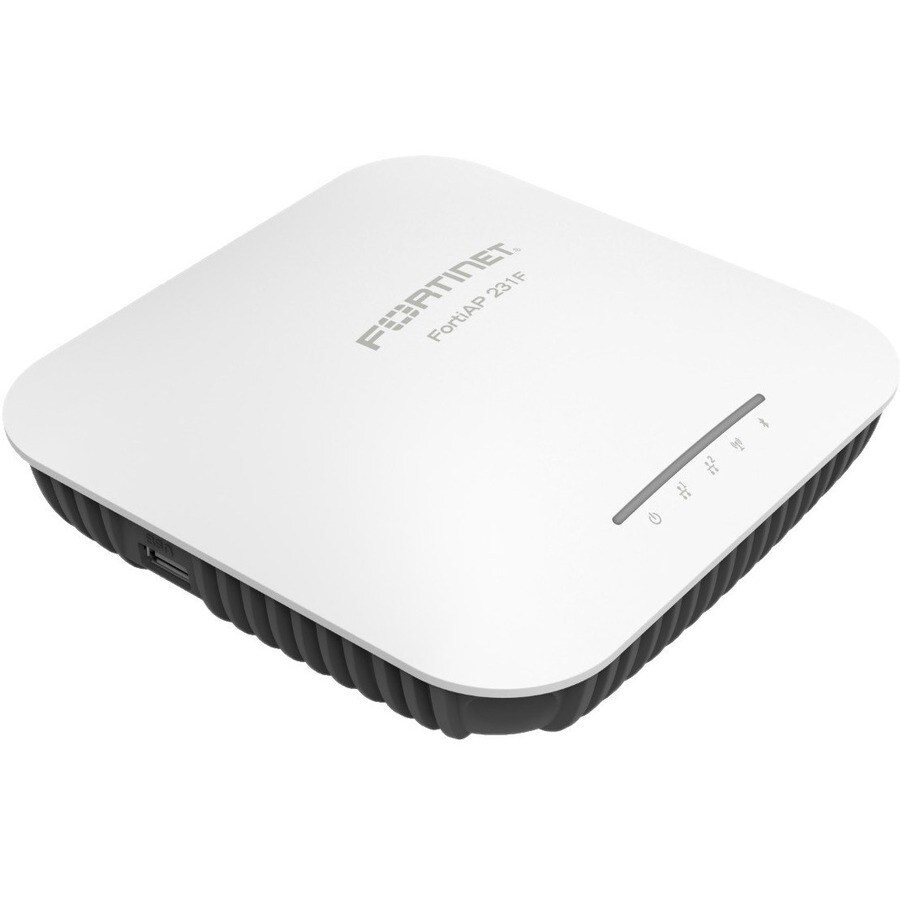

Fortinet FortiAP 231F Dual Band 802.11ax 1.73 Gbit/s Wireless Access Point - Indoor - 2.40 GHz, 5 GHz - 3 x Internal Antenna(s) - Internal - MIMO Technology - 2 x Network (RJ-45) - Gigabit Ethernet - 17 W - Ceiling Mountable, Wall Mountable, Desktop, Rail-mountable
This enterprise class Wi-Fi 6 indoor AP provides three radios as well as features such as OFDMA and dual 1 Gbps Ethernet ports for PoE diversity. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.- Gigabit Ethernet port for ultra-fast wired network speeds
- Its management capability provides efficient control over setup and configuration of your network
- Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
Technical Specifications
Power Description
| Power Consumption | 17 W |
Miscellaneous
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Interfaces/Ports
| Ethernet Technology | Gigabit Ethernet |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Management Port | Yes |
| PoE PD Port | Yes |
Technical Information
| Network Band | Dual Band |
| Wireless Transmission Speed | 1.73 Gbit/s |
| Frequency Band | 2.40 GHz |
| 5 GHz | |
| Wireless LAN Standard | 802.11ax |
| Encryption Standard | WPA3-PSK |
| WPA3 | |
| WPA2-PSK | |
| WPA2 | |
| WPA-PSK | |
| WPA | |
| WEP | |
| Total Number of Antennas | 3 |
| Number of Internal Antennas | 3 |
| Data Encryption | Yes |
| MIMO Technology | Yes |
| Indoor/Outdoor | Indoor |
General Information
| Product Type | Wireless Access Point |
| Manufacturer Part Number | FAP-231F-N |
| Manufacturer Website Address | http://www.fortinet.com |
| Manufacturer | Fortinet, Inc |
| Product Model | 231F |
| Product Name | FortiAP 231F Wireless Access Point |
| Product Line | FortiAP |
| Brand Name | Fortinet |
Physical Characteristics
| Weight (Approximate) | 453.6 g |
| Form Factor | Wall Mountable |
| Ceiling Mountable | |
| Desktop | |
| Rail-mountable | |
| Height | 72.6 mm |
| Width | 152.4 mm |
| Depth | 152.4 mm |
| Antenna Form Factor | Internal |
Price Trend
Current Price
AUD 696.00
