FORTIEXTENDERVEHICLE-211F SEMI-RUGGED BR

FORTIEXTENDERVEHICLE-211F SEMI-RUGGED BR

FORTIEXTENDERVEHICLE-211F SEMI-RUGGED BR

Product Overview

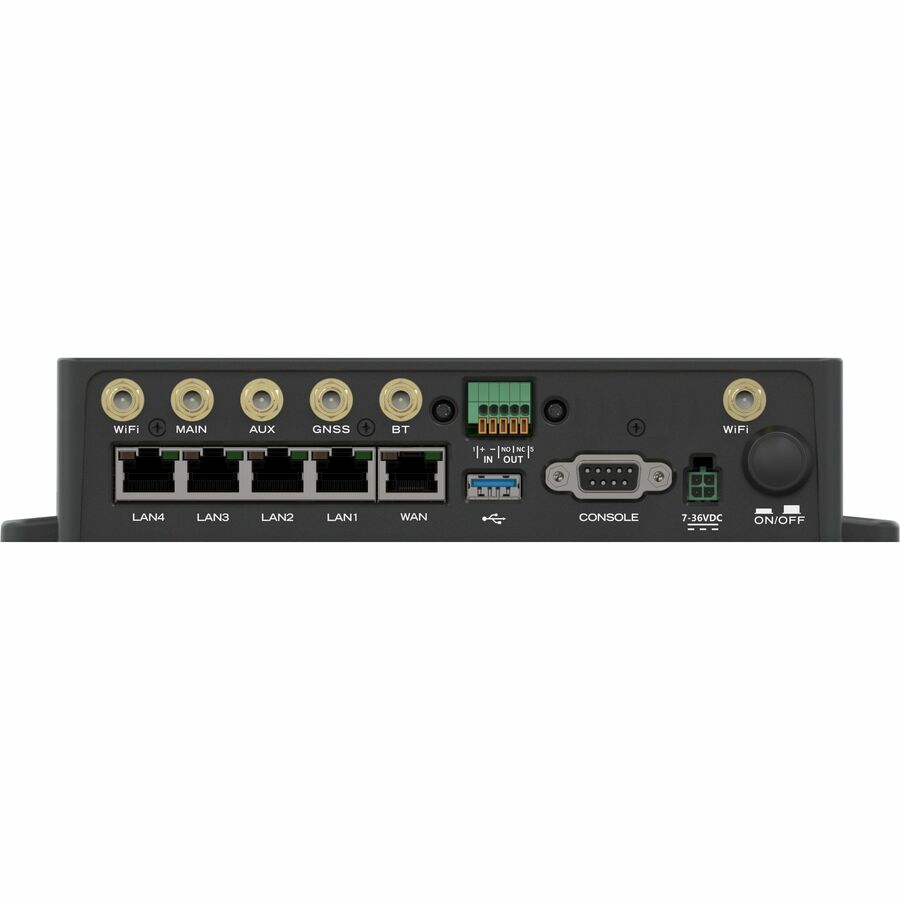

Fortinet FortiExtender FEV-211F Wi-Fi 5 IEEE 802.11a/b/g/n/ac 2 SIM Ethernet, Cellular Modem/Wireless Router - 4G - HSPA+, LTE, UMTS, WCDMA - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 2 x Antenna(2 x External) - 4 x Network Port - 1 x Broadband Port - USB - Gigabit Ethernet - Desktop, Wall Mountable, Vehicle Mount

Extend, Ensure, and Secure Your Network

FortiExtender offers scalable, cost-effective, and resilient 5G, LTE, and Ethernet solutions. Driven by Fortinet's unique approach of Security-driven networking FortiExtender allows organizations business continuity, improved network availability while securing connectivity with wired broadband and cellular networks. From secure point of sale (POS) systems to vehicle fleet communication, FortiExtender provides reliable broadband access to the internet and extends the value of the Fortinet Security Fabric to support fluid business operations dependent on remote device connectivity.

Security-Driven Networking | Security Fabric Integration

Integration with Fortinet SD-WAN and FortiGate appliances secures internet edge breakouts with a complete set of Web, Content, and Device security controls far beyond other industry solutions.

Optimal Signal Strength

A single PoE cable provides optimal 5G/LTE signal vs complex, lossy antenna cables or limited strength USB modems. Dual SIM and Dual Modem options offer up to 5X network reliability

Simplified Management

Manage your FortiExtender from the FortiManager, FortiGate, or FortiExtender Cloud dashboard, making network changes, security controls, and policy automation simple.

Features | Superior Management, Security, and Control

FortiExtenders are a true plug-and-play device. Once connected to the FortiGate, they appear as a regular network interface in FortiOS management. IT administrators can manage the connection as well as implement complete UTM security and control, just like any other FortiGate interface. In addition, FortiOS will display data quota usage on the wireless WAN interface, providing complete visibility of the connection to ensure costly carrier data limits are not exceeded. The superior management, security, and control of the FortiExtender ultimately reduces IT costs while extending, ensuring, and securing the network.

Flexible Deployment for Optimal Signal Strength

FortiExtender devices are designed to receive the best possible 5G/LTE signal. The device utilizes Power over Ethernet (PoE) so you can run a high-quality ethernet cable to a location with optimal signal strength, up to 100 m away from the FortiGate or Network Switch.

  • Improves user experience though optimal 5G and LTE wireless signal
  • Provides secure network failover with out of band management (OBM), dual SIM, and dual Modem capabilities
  • Integrates with Fortinet Secure SD-WAN for ease of deployment, management, and security
  • Offers dynamic, flexible edge connectivity-switch links among ISPs based on data consumption, schedules, or ad hoc
  • Enables network access for remote sites and branches located beyond fixed broadband
  • Accelerates cloud connectivity for any user with flexible on-ramp paths to SaaS/IaaS
  • Reduces overall WAN TCO with FortiGate Network Security Platform integration
  • Cloud-based management empowers businesses with globally distributed locations
  • Four LAN ports and routing capabilities enable remote connectivity and networking

Technical Specifications

Miscellaneous
Package Contents
  • FortiExtender FEV-211F Modem/Wireless Router
  • 2 x Wi-FI Antenna
  • 1 x BT Antenna
Certifications & Standards
    • FCC Part 15B, 15C, 2.1091
    • ICES-003
    • RSS-247
    • RSS-102
    • IEC/EN 62368-1
    • EN 50155 Class S1
    • MIL STD 810H
    • SAE J1455
    • CE (4.1) RR&TTE Directive 1999 / 5 / EC (4.2)
    • EN 300 328 / EN 301 489 / EN 301 893 / EN
    • 50385 (4.3) EU Directive 2004 / 108 / EC
    • EMC (4.4) EU Directive 2006 /95 / EC LVD
    • (4.5) EN 55022 / EN 55024 / EN 61000
    • IC
    • GCF
    • PTCRB
    • CB IEC 60950-1:2005
    • UL UL 60950-1, CSA C22.2 No. 60950-1-07
    • FCC FCC Part 15,Class B and Subpart Cand EICES-003
    • CE
    • RR&TTE Directive 1999 / 5 / EC
    • EN 300 328 / EN 301 489 / EN 301 893 / EN 50385
    • EU Directive 2004 / 108 / EC EMC
    • EU Directive 2006 /95 / EC LVD
    • EN 55022 / EN 55024 / EN 61000
    • IC
    • Canada RSS-210 Issue 7 /
    • Canada RSS-Gen Issue 2
    • RSS102, Issue 4
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Technical Information
Network BandDual Band
Wi-Fi GenerationWi-Fi 5
High Availability SupportedYes
Network & Communication
Ethernet TechnologyGigabit Ethernet
Multi-SIM SupportedYes
Number of SIM Card Supported2
SIM Size SupportedMicro
Interfaces/Ports
USBYes
Number of Network (RJ-45) Ports4
USB StandardUSB 2.0 Type A
Number of Broadband (RJ-45) Ports1
Total Number of Network Ports5
PoE (RJ-45) PortNo
Physical Characteristics
Weight (Approximate)952.5 g
Form FactorVehicle Mount
Desktop
Wall Mountable
Height45 mm
Width129.8 mm
Depth181.9 mm
General Information
Product TypeModem/Wireless Router
Manufacturer Part NumberFEV-211F-N
Manufacturer Website Addresshttp://www.fortinet.com
ManufacturerFortinet, Inc
Product ModelFEV-211F
Product NameFortiExtender FEV-211F Modem/Wireless Router
Product LineFortiExtender
Brand NameFortinet
Wireless Specifications
Broadband Transmission TechnologyEthernet
Cellular
Wireless LAN StandardIEEE 802.11a/b/g/n/ac
ISM BandYes
UNII BandYes
ISM Maximum Frequency2.40 GHz
UNII Maximum Frequency5 GHz
Cellular Generation4G
Total Number of Antennas2
Number of External Antennas2
