FORTIGATE-101F-USG HW
FORTIGATE-101F-USG HW
Product Overview

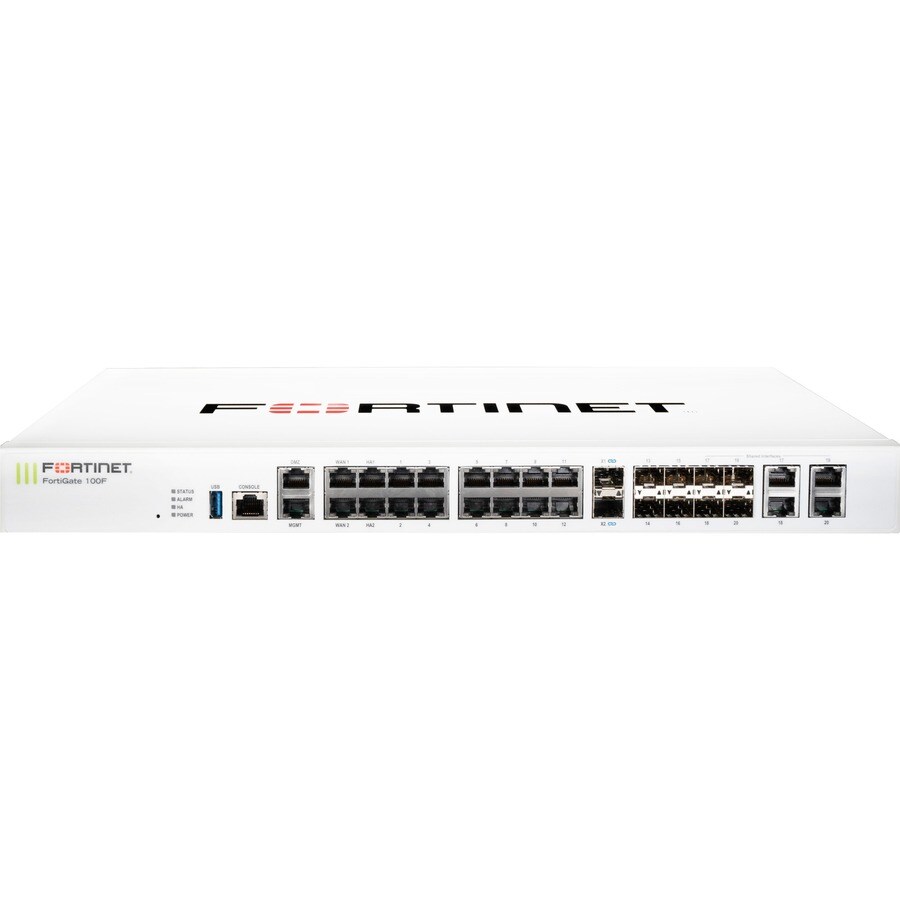

Fortinet FortiGate FG-101F Network Security/Firewall Appliance Support/Service - TAA Compliant - 22 Port - 10GBase-X - 10 Gigabit Ethernet, 1000Base-T, 1000Base-X - 20 Gbit/s Firewall Throughput - AES (256-bit) - 500 VPN - 21 x RJ-45 - 10.0 Total Expansion Slots - 1U - Rack-mountable
The FortiGate 100F series provides an application-centric, scalable, and secure SD-WAN solution with Next Generation Firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or branch level. Protects against cyber threats with system-on-a-chip acceleration and industryleading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.Security
- Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
- Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
- Prevents and detects against known attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
- Proactively blocks unknown sophisticated attacks in realtime with the Fortinet Security Fabric integrated AI-powered FortiSandbox
- Engineered for innovation using Fortinet's purpose-built security processors (SPU) to deliver the industry's best threat protection performance and ultra-low latency
- Provides industry-leading performance and protection for SSL encrypted traffic including the first firewall vendor to provide TLS 1.3 deep inspection
- Independently tested and validated best security effectiveness and performance
- Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin, and AV Comparatives
- Dynamic Path Selection over any WAN transport to provide better application experience based on self-healing SD-WAN capabilities
- Advanced routing, scalable VPN, multi-cast, and IPV4/IPV6 forwarding powered by purpose-built network processors
- SD-WAN orchestration provides intuitive and simplified workflow for centralized management and provisioning of business policies in a few easy clicks
- Expedited deployment with zero touch provisioning well-suited for large and distributed infrastructure
- Automated VPN tunnels for flexible hub-to-spoke and full-mesh deployment at scale to provide bandwidth aggregation and encrypted WAN paths
- Predefined compliance checklists analyze the deployment and highlight best practices to improve the overall security posture
- Enables Fortinet and Fabric-ready partners' products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation
- Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products
- Keep all your data safe and secure from hackers and thieves by utilizing cipher based AES (256-bit) encryption that encrypts and decrypts data in blocks of 128 bits using cryptographic keys of 256-bit
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Proven firewall appliance with Threat Protection firewall protection support provides secure data transfer on your network
- Rack mounting enables you to organize wires & secure cables for professional installation
- 22 ports Firewall is designed to fulfil the issues of the most demanding workgroup and departmental security requirements
Technical Specifications
Management & Protocols
| Manageable | Yes |
Media & Performance
| VPN Throughput | 1.44 GB/s |
Miscellaneous
| TAA Compliant | Yes |
Power Description
| Frequency | 60 Hz |
Wireless Specifications
| Wireless LAN | No |
Interfaces/Ports
| USB | Yes |
| Number of Network (RJ-45) Ports | 21 |
| Total Number of Ports | 22 |
Technical Information
| Firewall Protection Supported | Cyber Assault Protection |
| Deep Inspection Firewall | |
| Gateway Antivirus | |
| ICSA Certified OS | |
| Malware Protection | |
| Secure IPsec VPN Connectivity | |
| SSL Encrypted Traffic Protection | |
| Threat Protection | |
| Web Content Filtering | |
| Advanced Threat Intelligence | |
| Anti-spam | |
| Antivirus | |
| Application Control | |
| Botnet Detection | |
| Encryption Standard | AES (256-bit) |
| SHA-256 | |
| Firewall Throughput | 20 Gbit/s |
| Number of VPN Supported | 500 |
Network & Communication
| Network Standard | 10GBase-X |
| 1000Base-T | |
| 1000Base-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
Physical Characteristics
| Weight (Approximate) | 3.43 kg |
| Height | 43.9 mm |
| Width | 431.8 mm |
| Depth | 254 mm |
I/O Expansions
| Expansion Slot Type | SFP+ |
| SFP (mini-GBIC) | |
| Number of SFP Slots | 8 |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 10.0 |
General Information
| Product Type | Network Security/Firewall Appliance |
| Manufacturer Part Number | FG-101F-USG |
| Manufacturer Website Address | http://www.fortinet.com |
| Manufacturer | Fortinet, Inc |
| Product Model | FG-101F |
| Product Name | FortiGate FG-101F Network Security/Firewall Appliance |
| Product Line | FortiGate |
| Product Series | 100F |
| Brand Name | Fortinet |
