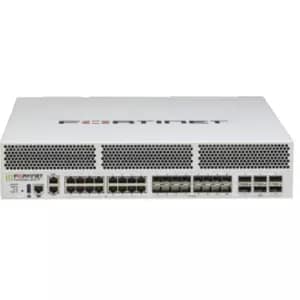

FortiGate-3000F
FortiGate-3000F
Product Overview
Fortinet FortiGate FG-3000F Network Security/Firewall Appliance - 18 Port - 10GBase-T - 100 Gigabit Ethernet, 100GBase-X - 397 Gbit/s Firewall Throughput - AES (256-bit) - 30000 VPN - 16 x RJ-45 - 22.0 Total Expansion Slots - 2U - Rack-mountable, Rail-mountable
High Performance with Flexibility
The FortiGate 3000F Series enables organizations to build security-driven networks that can weave security deep into their datacenter and across their hybrid IT architecture to protect any edge at any scale.
Powered by a rich set of AI/ML-based FortiGuard Services and an integrated security fabric platform, the FortiGate 3000F Series delivers coordinated, automated, end-to-end threat protection across all use cases.
The industry's first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, FortiGate 3000F automatically controls, verifies, and facilitates user access to applications delivering consistent convergence with a seamless user experience.
- Gartner Magic Quadrant Leader for both Network Firewalls and SD-WAN.
- Security-Driven Networking FortiOS delivers converged networking and security.
- Unparalleled Performance with Fortinet's patented / SPU / vSPU processors.
- Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
- Hyperscale Security to secure any edge at any scale.
Technical Specifications
| Manageable | Yes |
| VPN Throughput | 13.13 GB/s |
| Certifications & Standards |
|
| USB | Yes |
| Number of Network (RJ-45) Ports | 16 |
| Total Number of Ports | 18 |
| Network Standard | 10GBase-T |
| 100GBase-X | |
| Ethernet Technology | 100 Gigabit Ethernet |
| Firewall Protection Supported | Zero Day Event |
| Antivirus | |
| Application Control | |
| Enterprise Security | |
| Firewall Authentication | |
| Intrusion Prevention | |
| Malware Protection | |
| Network Protection | |
| Advanced Threat Intelligence | |
| Secure IPsec VPN Connectivity | |
| Threat Protection | |
| URL Filtering | |
| Encryption Standard | SHA-256 |
| AES (256-bit) | |
| Firewall Throughput | 397 Gbit/s |
| Number of VPN Supported | 30000 |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 680 W |
| Weight (Approximate) | 16.92 kg |
| Height | 88.9 mm |
| Width | 443 mm |
| Depth | 556 mm |
| Expansion Slot Type | SFP (mini-GBIC) |
| SFP+ | |
| QSFP28 | |
| QSFP+ | |
| SFP28 | |
| Total Number of Expansion Slots | 22.0 |
| Product Type | Network Security/Firewall Appliance |
| Manufacturer Part Number | FG3000F |
| Manufacturer Website Address | http://www.fortinet.com |
| Manufacturer | Fortinet, Inc |
| Product Model | FG-3000F |
| Product Name | FortiGate FG-3000F Network Security/Firewall Appliance |
| Product Line | FortiGate |
| Product Series | 3000F |
| Brand Name | Fortinet |
