Product Overview
StarTech.com Dual TV Ceiling Mount, Back-to-Back Hanging Dual Screen VESA Pole Mount for 32"-75" TVs - Height Adjustable Telescopic Pole - Adjustable back-to-back dual TV ceiling mount w/ telescopic pole for large VESA mount displays/curved TVs up to 75in (110lb) per screen - Swivel/rotate/tilt - Works on angled/slanted ceilings - Incl hardware - Cable management | Hook-and-mount design
Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.
Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.
Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment
For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.
Swivels to Suit Your Ceiling
The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.

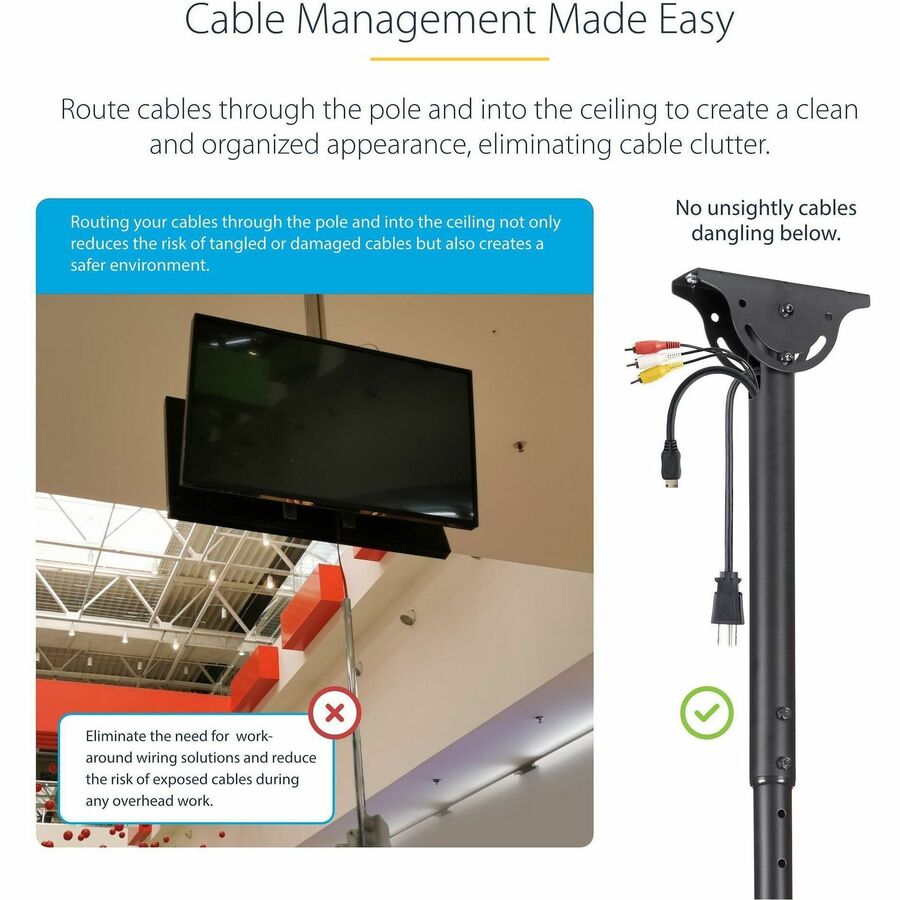

Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
- BACK TO BACK DUAL 75" TV CEILING MOUNT: Heavy-duty VESA compatible ceiling mount supports displays incl. curved TVs up to 75" (110lb/50kg) per screen; Height adjustable pole, 3.5' (1,0m) to 5.0' (1,5m) from ceiling
- WIDE RANGE OF MOTION: Ceiling TV mount allows for both displays to be swiveled 360° around the telescopic pole, and individually rotated +/-3° & tilted +5/-20°; TV position secured w/ provided tools
- VERSATILE INSTALLATION: Adjustable mounted ceiling bracket for multiple screens allows the pole to be adjusted and secured +/-60 degrees for angled/sloped/slanted ceilings to ensure displays are level
- COMPATIBILITY: Universal hanging TV ceiling mount supports LG, Samsung, Sony, and Sharp TVs among others (screws/spacers incl) & VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
- TIDY AESTHETIC: The double television ceiling mount for two large displays provides a hook-and-mount design for easy setup and integrated cable management; ideal for digital signage applications
Technical Specifications
| Environmentally Friendly | Yes |
| Product Type | Ceiling Mount |
| Manufacturer Part Number | FPCEILBTB |
| Manufacturer Website Address | http://www.startech.com/au |
| Manufacturer | StarTech.com |
| Product Name | Ceiling TV Mount for Back-to-Back Displays - 3.5' to 5' Pole |
| Brand Name | StarTech.com |
| Weight (Approximate) | 9.84 kg |
| Length | 68.1 cm |
| Height | 83.6 cm |
| Width | 16.5 cm |
| Mounting Pattern | 200 x 200 |
| 600 x 300 | |
| 600 x 400 | |
| 200 x 300 | |
| 200 x 400 | |
| 300 x 200 | |
| 300 x 300 | |
| 400 x 200 | |
| 400 x 300 | |
| 400 x 400 | |
| 600 x 200 | |
| Product Color | Black |
| Product Material | Steel |
| Device Supported | Flat Panel Display |
| Curved Screen Display | |
| Features | Tilt |
| Telescoping | |
| Rotate | |
| Swivel | |
| 360° Rotation | |
| 360° Swivel | |
| Adjustable | |
| Cable Management | |
| Pivot | |
| Heavy Duty | |
| Maximum Load Capacity | 99.79 kg |
| Minimum Screen Size Supported | 81.3 cm |
| Maximum Screen Size Supported | 190.5 cm (75") |
| Number of Displays Supported | 2 |
| Height Adjustable | Yes |
