23.8IN HD INDUSTRIAL MONITOR W P-CAP TOU
23.8IN HD INDUSTRIAL MONITOR W P-CAP TOU
Product Overview

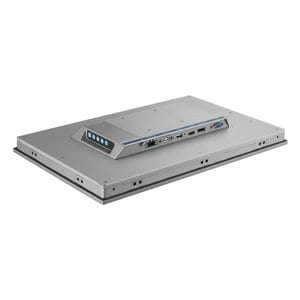

Advantech FPM-724W-P9AE 24" Class LED Touchscreen Monitor - 23.8" Viewable - Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colours - 350 cd/m² - LED Backlight - HDMI - USB - VGA - DisplayPort
In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-715W/FPM-721W/FPM-724W are industrial-grade,widescreen monitor with sleek, simple lines and a true-flat touchscreen. Equipped with P-CAP 10-point multi-touch control and an IP66-rated front bezel,FPM-715W series is specifically designed for industrial applications. Moreover, FPM-715W/FPM-721W support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and various mount options to make these monitors ideal for factory and machine automation display applications.
- 15.6"/21.5"/23.8" Full HD TFT LED LCD with true-flat touchscreen
- 16:9 wide screen aspect ratio, increases viewing area by 40%
- Supports 10-point multi-touch control via USB interface in Windows 7/8/10 OS
- Slim design enables easy installation
- Supports various mount options: panel, desktop, and VESA arm
- Touchscreen with reliable glass surface and P-CAP touch control
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
- Lockable I/O connectors
- Supports various mount options: panel, wall, desktop, rack or VESA arm mounting
Technical Specifications
| Package Contents |
|
| Maximum Power Consumption | 25.47 W |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Brightness | 350 cd/m² |
| Color Supported | 16.7 Million Colours |
| Maximum Resolution | 1920 x 1080 |
| Native Contrast Ratio | 1,000:1 |
| Features | Anti-glare |
| Mount Type | Wall Mountable |
| Stand Mountable | |
| Rack-mountable | |
| Panel Mount | |
| Desk Mountable | |
| Arm-mountable | |
| Viewable Screen Size | 23.8" |
| Screen Mode | Full HD |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Screen Size Class | 24" |
| Ingress Protection (IP) Rating | IP66 |
| Weight (Approximate) | 7.80 kg |
| Height | 374.1 mm |
| Width | 595.9 mm |
| Depth | 53 mm |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Product Type | LED Touchscreen Monitor |
| Manufacturer Part Number | FPM-724W-P9AE |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | FPM-724W-P9AE |
| Product Name | FPM-724W-P9AE Widescreen Touchscreen LED Monitor |
| Product Series | FPM |
| Brand Name | Advantech |
| USB | Yes |
| HDMI | Yes |
| VGA | Yes |
| Number of USB Ports | 2 |
| DisplayPort | Yes |
| Number of VGA Ports | 1 |
| Number of DisplayPorts | 1 |
| Total Number of HDMI Ports | 1 |
