Product Overview

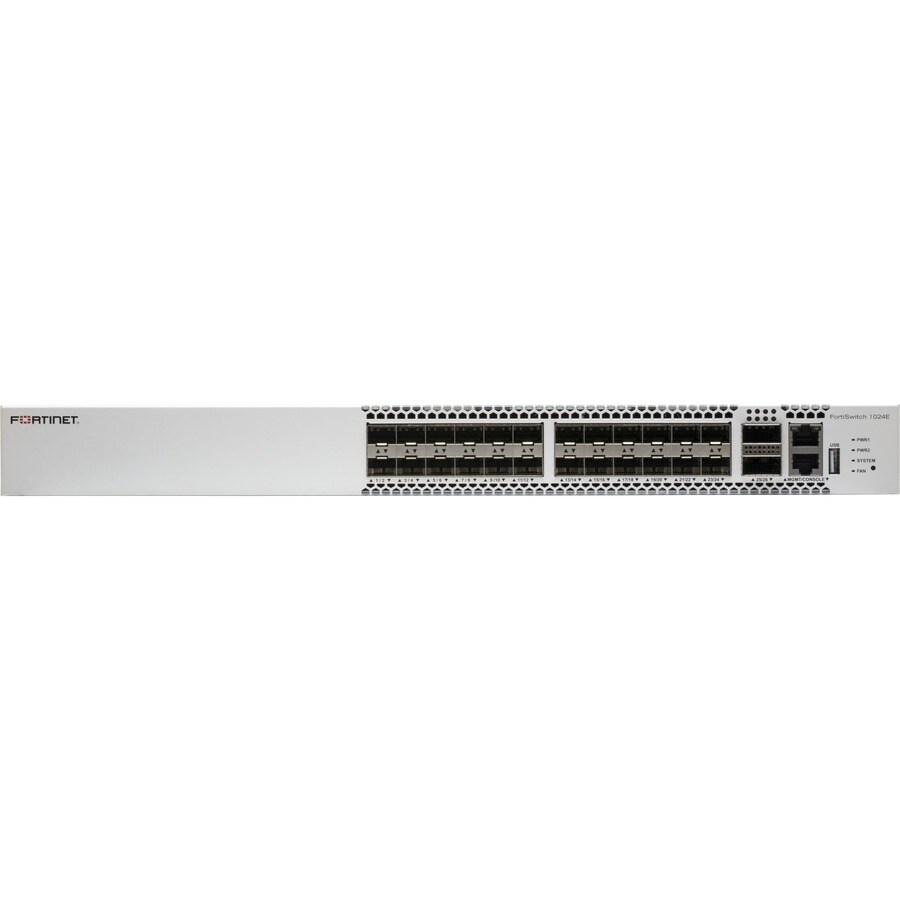

Fortinet FortiSwitch 1024E Manageable Ethernet Switch - 10 Gigabit Ethernet, 100 Gigabit Ethernet, 40 Gigabit Ethernet - 100GBase-X, 40GBase-X, 10GBase-X - 3 Layer Supported - Modular - 176 W Power Consumption - Optical Fiber - 1U High - Rack-mountable - Lifetime Limited Warranty
Secure, Simple, Scalable Ethernet Solution | FortiSwitch Data Center switches deliver a secure, simple, scalable Ethernet solution with outstanding throughput, resiliency, and scalability. Virtualization and cloud computing have created dense high-bandwidth Ethernet networking requirements. FortiSwitch Data Center switches meet these challenges by providing a high-performance 10 GE, 40 GE, or 100 GE capable switching platform, with a low total cost of ownership. Ideal for Top of Rack server or firewall aggregation applications, as well as SD-Branch network core deployments, these switches are purpose-built to meet the needs of today's bandwidth-intensive environments.
Security Fabric Integration Through FortiLink
The FortiSwitch Data Center Series supports FortiGate management through FortiLink, extending the Fortinet Security Fabric to the Ethernet port level. This link allows the same policies configured and applied to FortiGate interfaces to be applied to the FortiSwitch Ethernet ports, reducing complexity and decreasing management cost. With network security and access layer functions enabled and managed through a single console, centralized policy management, including role-based access and control, are easy to implement and manage. Users or devices can be authenticated against the same database and have the same security policy applied regardless of how or where they connect to the network.
- High throughput Ethernet switch suitable for Top of Rack or large SD-Branch network deployments
- Compact 1 RU form factor
- 1GE, 2.5GE, 5GE, 10GE, 40GE, and 100GE capable access ports
- Fixed 10GE copper port option
- 40GE or 100GE capable uplinks with breakout support for 2x50G, 4x25G, 4x10G, and 4x1G
- FortiGate management through FortiLink, enabling the Security Fabric
- Stackable up to 300 switches per FortiGate depending on model
- Dual hot-swappable power supplies for redundancy
- Supports wire-speed switching with both store and forward and cut-through forwarding modes
Technical Specifications
Manageable | Yes |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
Modular | Yes |
Uplink Port | Yes |
Stack Port | Yes |
Port/Expansion Slot Details | 24 x 10 Gigabit Ethernet Expansion Slot |
2 x 100 Gigabit Ethernet Expansion Slot |
Expansion Slot Type | QSFP28 |
QSFP+ | |
SFP+ | |
Number of SFP+ Slots | 24 |
Shared SFP Slot | No |
Total Number of Expansion Slots | 26.0 |
Layer Supported | 3 |
Networking Standards | IEEE 802.1AX |
IEEE 802.1ad | |
IEEE 802.1ab | |
IEEE 1588 | |
IEEE 802.3u | |
IEEE 802.1D | |
IEEE 802.1p | |
IEEE 802.1Q | |
IEEE 802.1Qbb | |
IEEE 802.1s | |
IEEE 802.1w | |
IEEE 802.3z | |
IEEE 802.3x | |
IEEE 802.1x | |
IEEE 802.3 | |
IEEE 802.3ab | |
IEEE 802.3ad | |
IEEE 802.3ae | |
IEEE 802.3ba | |
IEEE 802.3bj | |
IEEE 802.3bz | |
IEEE 802.3bm |
Weight (Approximate) | 6.58 kg |
Form Factor | Rack-mountable |
Height | 43.4 mm |
Width | 438.4 mm |
Depth | 460 mm |
Compatible Rack Unit | 1U |
Network Technology | 40GBase-X |
100GBase-X | |
10GBase-X | |
Ethernet Technology | 100 Gigabit Ethernet |
10 Gigabit Ethernet | |
40 Gigabit Ethernet | |
Media Type Supported | Optical Fiber |
Input Voltage | 110 V AC |
230 V AC | |
Power Source | Power Supply |
Frequency | 60 Hz |
50 Hz | |
Power Consumption | 176 W |
Redundant Power Supply Supported | Yes |
Product Type | Ethernet Switch |
Manufacturer Part Number | FS-1024E |
Manufacturer Website Address | http://www.fortinet.com |
Manufacturer | Fortinet, Inc |
Product Model | 1024E |
Product Name | FortiSwitch 1024E Ethernet Switch |
Product Line | FortiSwitch |
Brand Name | Fortinet |
