FS-148F-FPOE Network Switch
FS-148F-FPOE Network Switch
Product Overview

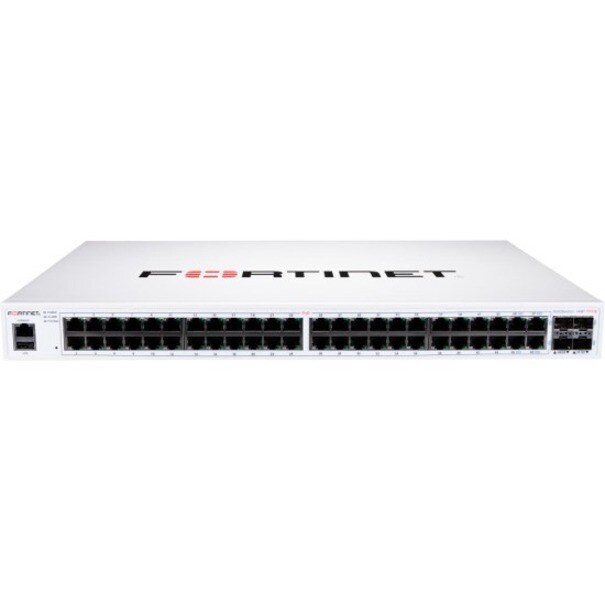

Fortinet FortiSwitch 100 FS-148F-FPOE 48 Ports Manageable Ethernet Switch - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 2 Layer Supported - Modular - 895.70 W Power Consumption - 740 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable
The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat-conscious businesses of all sizes.Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
Technical Specifications
Management & Protocols
Manageable | Yes |
Network & Communication
Layer Supported | 2 |
I/O Expansions
Expansion Slot Type | SFP+ |
Number of SFP+ Slots | 4 |
Total Number of Expansion Slots | 4.0 |
Interfaces/Ports
Modular | Yes |
Uplink Port | Yes |
Total Number of Network Ports | 48 |
Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+ |
4 x 10 Gigabit Ethernet Expansion Slot |
Media & Performance
Network Technology | 10/100/1000Base-T |
10GBase-X | |
Ethernet Technology | Gigabit Ethernet |
10 Gigabit Ethernet | |
Media Type Supported | Twisted Pair |
Optical Fiber |
Physical Characteristics
Weight (Approximate) | 4.68 kg |
Form Factor | Rack-mountable |
Height | 43.9 mm |
Width | 439.9 mm |
Depth | 309.9 mm |
Compatible Rack Unit | 1U |
General Information
Product Type | Ethernet Switch |
Manufacturer Part Number | FS148FFPOE |
Manufacturer Website Address | http://www.fortinet.com |
Manufacturer | Fortinet, Inc |
Product Model | FS-148F-FPOE |
Product Name | FortiSwitch FS-148F-FPOE Ethernet Switch |
Product Line | FortiSwitch |
Product Series | 100 |
Brand Name | Fortinet |
Power Description
Power Source | Power Supply |
Frequency | 60 Hz |
50 Hz | |
Power Consumption | 895.70 W |
Number of Power Supplies Supported | 1 |
Number of Power Supplies Installed | 1 |
PoE (RJ-45) Port | Yes |
Redundant Power Supply Supported | No |
PoE Budget | 740 W |
