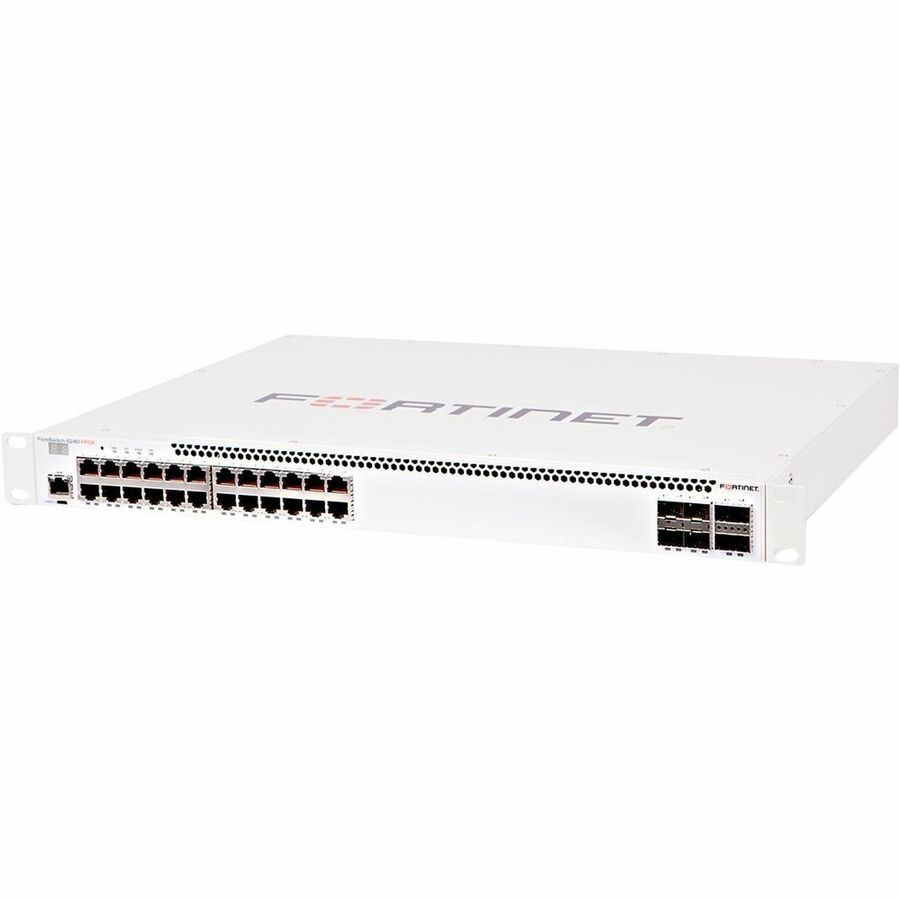

FS-524D-FPOE L2 POE+ Switch 24x GE RJ4
FS-524D-FPOE L2 POE+ Switch 24x GE RJ4
Product Overview
Fortinet FortiSwitch FS-500 524D-FPOE 24 Ports Manageable Ethernet Switch - Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet - 10GBase-X, 40GBase-X, 10/100/1000Base-T - 3 Layer Supported - Modular - 579 W Power Consumption - 400 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U High - Rack-mountable
Security, Performance, and Manageability
The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat- conscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single-pane-of-glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch and campus deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Integration | Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next- Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage.
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 24 networking ports
Technical Specifications
Manageable | Yes |
Expansion Slot Type | SFP+ |
QSFP+ | |
Number of SFP+ Slots | 4 |
Total Number of Expansion Slots | 6.0 |
Application/Usage | Business |
Campus | |
Network | |
Data Center |
Weight (Approximate) | 7.12 kg |
Form Factor | Rack-mountable |
Height | 43.9 mm |
Width | 439.4 mm |
Depth | 350.5 mm |
Compatible Rack Unit | 1U |
Layer Supported | 3 |
Networking Standards | IEEE 802.3at |
IEEE 802.3bm | |
IEEE 802.3bz | |
IEEE 802.3u | |
IEEE 802.3x | |
IEEE 802.3z | |
IEEE 802.1ab | |
IEEE 802.1ad | |
IEEE 802.1ae | |
IEEE 802.1AX | |
IEEE 802.1D | |
IEEE 802.1p | |
IEEE 802.1Q | |
IEEE 802.1s | |
IEEE 802.1w | |
IEEE 802.1x | |
IEEE 802.3 | |
IEEE 802.3ab | |
IEEE 802.3ad | |
IEEE 802.3ae | |
IEEE 802.3af | |
IEEE 802.3az | |
IEEE 802.3bj |
Network (RJ-45) | Yes |
Modular | Yes |
Uplink Port | Yes |
Stack Port | Yes |
Total Number of Network Ports | 24 |
Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
24 x Gigabit Ethernet PoE | |
2 x 40 Gigabit Ethernet Expansion Slot |
Network Technology | 10/100/1000Base-T |
40GBase-X | |
10GBase-X | |
Ethernet Technology | 10 Gigabit Ethernet |
40 Gigabit Ethernet | |
Gigabit Ethernet | |
Media Type Supported | Twisted Pair |
Optical Fiber |
Product Type | Ethernet Switch |
Manufacturer Part Number | FS524DFPOE |
Manufacturer Website Address | http://www.fortinet.com |
Manufacturer | Fortinet, Inc |
Product Model | 524D-FPOE |
Product Name | FortiSwitch FS-500 524D-FPOE Ethernet Switch |
Product Line | FortiSwitch |
Product Series | FS-500 |
Brand Name | Fortinet |
Input Voltage | 230 V AC |
120 V AC | |
Power Source | Power Supply |
Frequency | 60 Hz |
50 Hz | |
Power Consumption | 579 W |
PoE (RJ-45) Port | Yes |
Redundant Power Supply Supported | Yes |
PoE Budget | 400 W |
