FortiSwitch-T1024E
FortiSwitch-T1024E
Product Overview

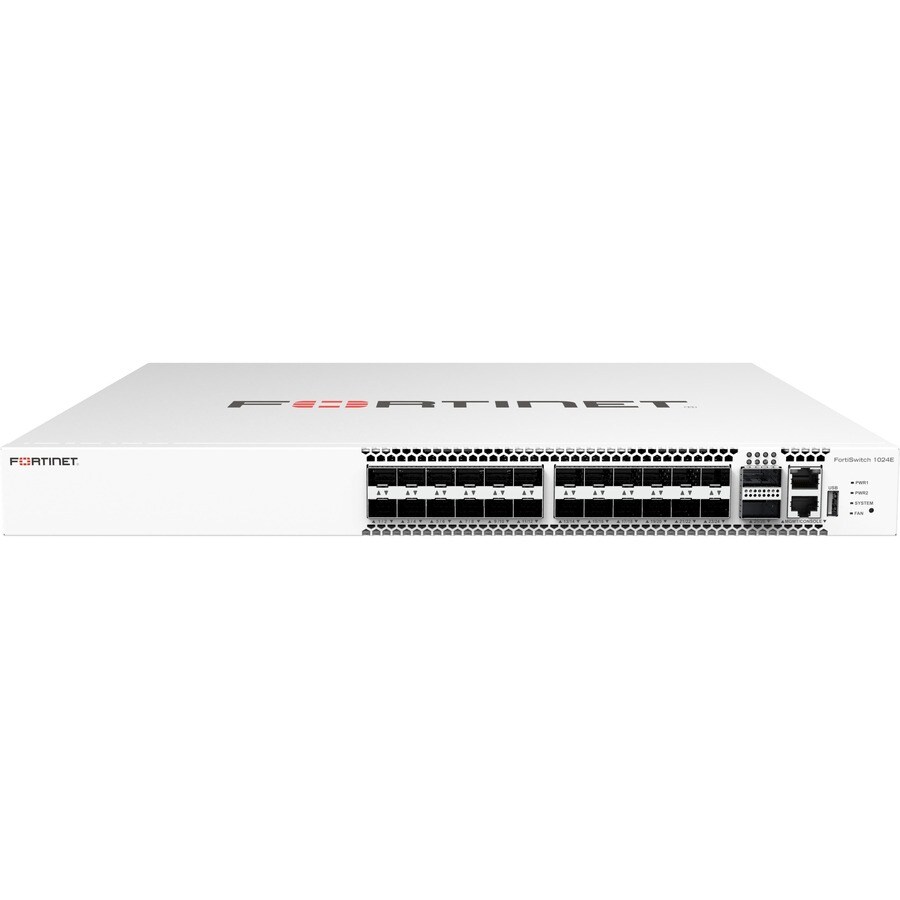

Fortinet FortiSwitch T1024E 24 Ports Manageable Ethernet Switch - 10 Gigabit Ethernet - 10GBase-T, 100GBase-X - 3 Layer Supported - Modular - 128 W Power Consumption - Optical Fiber - 1U High - Rack-mountable
Secure, Simple, Scalable Ethernet Solution | FortiSwitch Data Center switches deliver a secure, simple, scalable Ethernet solution with outstanding throughput, resiliency, and scalability. Virtualization and cloud computing have created dense high-bandwidth Ethernet networking requirements. FortiSwitch Data Center switches meet these challenges by providing a high-performance 10 GE, 40 GE, or 100 GE capable switching platform, with a low total cost of ownership. Ideal for Top of Rack server or firewall aggregation applications, as well as SD-Branch network core deployments, these switches are purpose-built to meet the needs of today's bandwidth-intensive environments.
Security Fabric Integration Through FortiLink
The FortiSwitch Data Center Series supports FortiGate management through FortiLink, extending the Fortinet Security Fabric to the Ethernet port level. This link allows the same policies configured and applied to FortiGate interfaces to be applied to the FortiSwitch Ethernet ports, reducing complexity and decreasing management cost. With network security and access layer functions enabled and managed through a single console, centralized policy management, including role-based access and control, are easy to implement and manage. Users or devices can be authenticated against the same database and have the same security policy applied regardless of how or where they connect to the network.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Quickly and easily set up a wired network with 24 networking ports
Technical Specifications
Manageable | Yes |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
Expansion Slot Type | QSFP28 |
Shared SFP Slot | No |
Total Number of Expansion Slots | 2.0 |
Network Technology | 10GBase-T |
100GBase-X | |
Ethernet Technology | 10 Gigabit Ethernet |
Media Type Supported | Optical Fiber |
Layer Supported | 3 |
Networking Standards | IEEE 802.1Q |
IEEE 802.1Qbb | |
IEEE 802.1s | |
IEEE 802.1w | |
IEEE 802.1x | |
IEEE 802.3 | |
IEEE 802.3ab | |
IEEE 802.3ad | |
IEEE 802.3ae | |
IEEE 802.3ba | |
IEEE 802.3bj | |
IEEE 802.3bm | |
IEEE 802.3bz | |
IEEE 802.3u | |
IEEE 802.3x | |
IEEE 802.3z | |
IEEE 802.1p | |
IEEE 802.1D | |
IEEE 802.1AX | |
IEEE 802.1ad | |
IEEE 802.1ab | |
IEEE 1588 |
Modular | Yes |
Uplink Port | Yes |
Stack Port | Yes |
Total Number of Network Ports | 24 |
Port/Expansion Slot Details | 24 x 10 Gigabit Ethernet Expansion Slot |
2 x 100 Gigabit Ethernet Expansion Slot |
Weight (Approximate) | 6.53 kg |
Form Factor | Rack-mountable |
Height | 43.4 mm |
Width | 438.4 mm |
Depth | 460 mm |
Compatible Rack Unit | 1U |
Input Voltage | 110 V AC |
230 V AC | |
Power Source | Power Supply |
Frequency | 60 Hz |
50 Hz | |
Power Consumption | 128 W |
Redundant Power Supply Supported | Yes |
Product Type | Ethernet Switch |
Manufacturer Part Number | FS-T1024E |
Manufacturer Website Address | http://www.fortinet.com |
Manufacturer | Fortinet, Inc |
Product Model | T1024E |
Product Name | FortiSwitch T1024E Ethernet Switch |
Product Line | FortiSwitch |
Brand Name | Fortinet |
