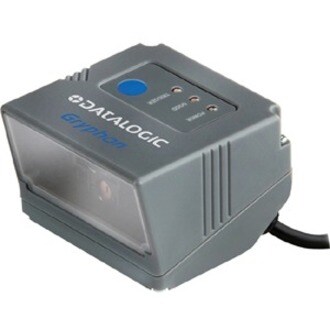

GRYPHON FIXED SCANNER 1D IMAGER
GRYPHON FIXED SCANNER 1D IMAGER
Product Overview
GRYPHON FIXED SCANNER 1D IMAGERRS232 (9P) IN
The Gryphon GFS4100 reader supports several modes that can be used as a trigger. The module has the ability to automatically sense objects and trigger itself. A continuous scan mode transmits data whenever a bar code passes into its field of view. The reader can be triggered remotely using input from programmable logic controller (PLC) or sensor.
Available in two models, the GFS4150-9 model supports an RS-232 serial interface, or the GFS4170 features a USB interface. The USB version supports both USB-HID for easy integration and keyboard emulation, or USB COM for virtual serial communications.
- Perfect for applications that require direct association with a workstation or a notebook
- Wired connectivity makes this scanner ideal for retail and desktop applications
- Laser-free design provides high-performance scanning without the risk of eye injury
- LED aimer is a perfect choice for patient-facing applications
- Scan barcodes with a staggering speed of 320 scan/s
Technical Specifications
| Host Interface | Serial |
| Additional Information | USB Cable separate |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) |
| Product Type | Barcode Scanner |
| Manufacturer Part Number | GFS4150-9 |
| Manufacturer Website Address | http://www.datalogic.com |
| Manufacturer | Datalogic S.p.A |
| Product Model | GFS4150-9 |
| Product Name | Gryphon GFS4150-9 Fixed Mount Bar Code Reader |
| Product Line | Gryphon |
| Product Series | 4100 |
| Brand Name | Datalogic |
| Weight (Approximate) | 170 g |
| Form Factor | Fixed Mount |
| Height | 39 mm |
| Width | 57 mm |
| Depth | 58 mm |
| Product Color | Grey |
| Barcode Symbology Supported |
1D / Linear Codes: |
| Connectivity Technology | Cable |
| Light Source | LED |
| Maximum Scan Resolution | 0.08 mm |
| Depth of Field |
|
| Scan Rate | 320 scan/s |
| Image Sensor Type | CCD |
| Scanning Capability | 1D |
