GT710-SL-2GD5-BRK-EVO

GT710-SL-2GD5-BRK-EVO

GT710-SL-2GD5-BRK-EVO

Product Overview

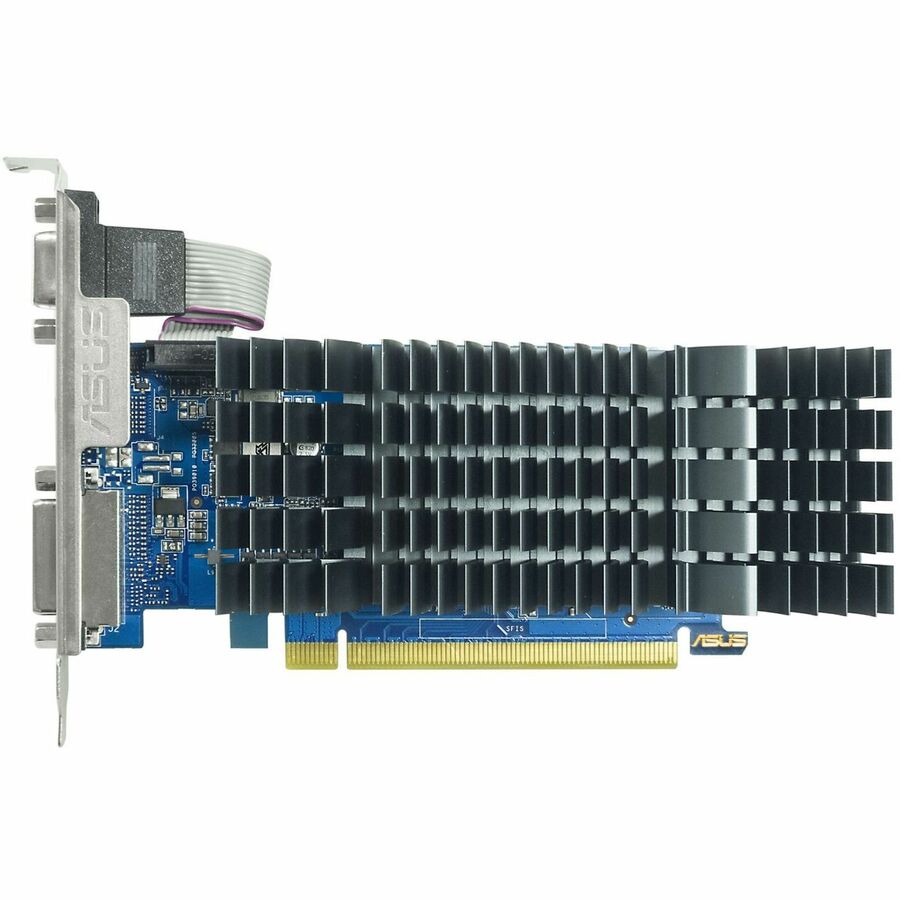

Asus NVIDIA GeForce GT 710 Graphic Card - 2 GB GDDR5 - Low-profile - 3840 x 2160 - 954 MHz Core - 64 bit Bus Width - PCI Express 2.0 - HDMI - VGA - DVI

ASUS GeForce®GT 710 2GB GDDR5 EVO low-profile graphics card for silent HTPC builds

  • passive cooling means true 0dB -perfect for quiet home theater PCs and multimedia centers.
  • Auto-Extreme Technologyuses automation to enhance reliability.
  • Supports 3 displays -connect up to 3 monitors for enhanced multitasking.
  • GPU Tweak IIIprovides intuitive performance tweaking, thermal controls, and system monitoring.

Big Productivity in a Small Package

The ASUS GeForce®GT 710 is a passively-cooled graphics card that enables quiet multi-monitor productivity.

COOLING | Passive Cooling

A passively-cooled design creates a quieter workspace.

ENGINEERING | Supports 3 Displays

ASUS GeForce GT 710 is a compact graphics card with three outputs (HDMI, DVI and D-Sub) that can support up to three displays at the same time for convenient multitasking.

Auto-Extreme Technology Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

SOFTWARE | GPU TWEAK III

Monitor, tweak, and tune

ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.


  • With OpenGL 4.5 API, experience optimum performance on NVIDIA GPUs
  • Cost-efficient NVIDIA GeForce provides effective Blu-ray playback acceleration and great gaming experience
  • Power-efficient passive cooling keeps the board cool and ensures long-lasting usability
  • With increased scalability, PCI Express 2.0 delivers up to 16GB/s of concurrent bandwidth
  • 2 GB GDDR5 on-board memory renders detailed images in a flash

Technical Specifications

Power Description
Power Supply Wattage300 W
Miscellaneous
Platform SupportedPC
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Memory
Standard Memory2 GB
Memory TechnologyGDDR5
Bus Width64 bit
Technical Information
API SupportedOpenGL 4.5
Number of Monitors Supported3
Maximum Digital Display Resolution3840 x 2160
CUDA Cores192
Processor & Chipset
Chipset ManufacturerNVIDIA
Chipset ModelGT 710
Chipset LineGeForce
Chipset SeriesGT 700
GPU Clock954 MHz
Interfaces/Ports
HDMIYes
DVIYes
VGAYes
Number of VGA Outputs1
Number of HDMI Outputs1
Number of DVI-D Ports1
General Information
Product TypeGraphic Card
Manufacturer Part NumberGT710-SL-2GD5-BRK-EVO
Manufacturer Website Addresshttp://www.asus.com/au
ManufacturerASUS Computer International
Product ModelGT710-SL-2GD5-BRK-EVO
Product NameGeForce GT 710 2GB GDDR5 EVO Graphic Card
Brand NameAsus
Physical Characteristics
Form FactorPlug-in Card
Length170 mm
Cooler TypePassive Cooler
Height39 mm
Width69 mm
Card HeightLow-profile
Slot Space RequiredDual
