HD USB4 Mobile Dock
HD USB4 Mobile Dock
Product Overview

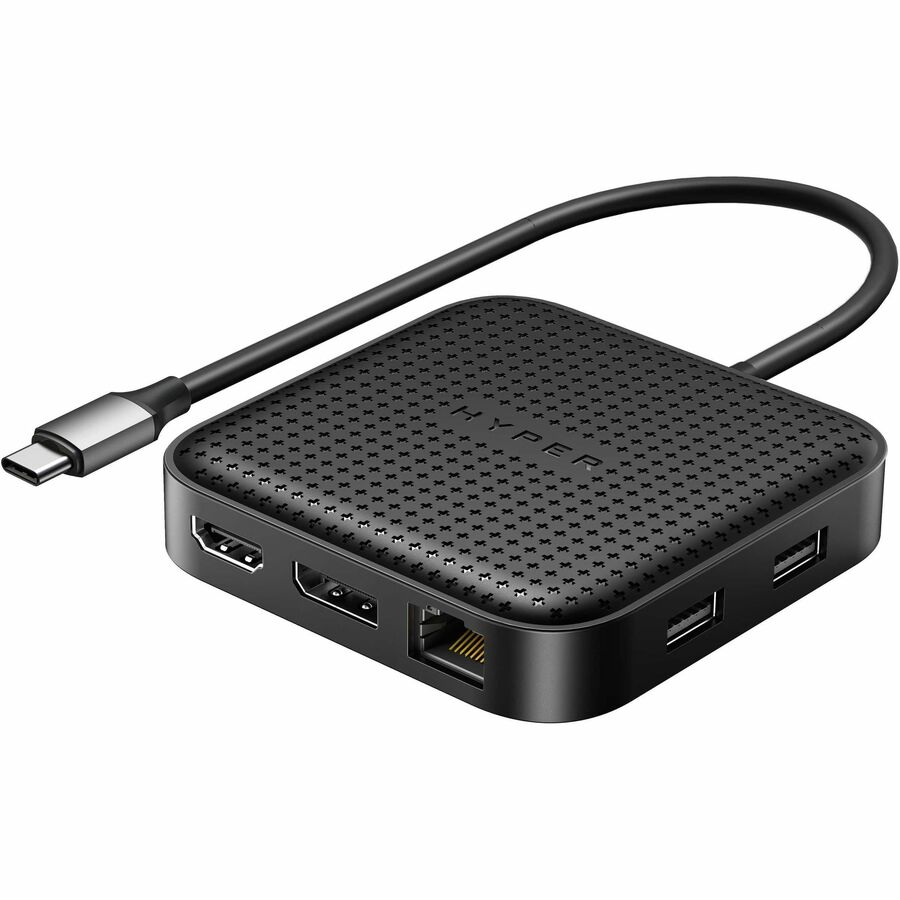

Targus HyperDrive HD583-GL USB4 Docking Station for Desktop PC/Notebook/Monitor - Black - Portable - 2 Displays Supported - 8K, 4K - 3840 x 2160 - 4 x USB Ports - 2 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - 1 x DisplayPorts - DisplayPort - Wired - Gigabit Ethernet - Windows 8, Linux, ChromeOS, iPadOS, macOS Big Sur - 100W
The HyperDrive USB4 Mobile Dock is a slim, portable USB4 docking station that features integrated HDMI 2.1 and DisplayPort 1.4 for single 8K 30Hz display support, and is capable of dual 4K 60Hz display support on MST enabled devices. It also provides the ability to quickly charge a host device with USB-C 85W power delivery while giving 2x USB-A 10Gbps ports for blazing fast file transfers. Compatible with USB4 devices, Mac OS, Thunderbolt 4 and 3 Windows PCs and Thunderbolt docking stations.
Dual Extended Display Support
Easily connect up to 2 external displays at 4K 60Hz with the flexibility of HDMI 2.1 or DP 1.4. Dual extended display only supported on devices that support MST. Not supported for Mac OS.
Single 8K 30Hz Display Support
Easily connect up a single external display at 8K 30Hz with the flexibility of HDMI 2.1 or DP 1.4. USB-C 100W PD Passthrough Quickly charge your host computer with 85 watts of power when connected to an external 100 watt Power Delivery charger.
High Speed USB-A
2x USB-A ports provide 10Gbps for transferring photos, files or high resolution HD movies in under 30 seconds.
Get 4X The Bandwidth
USB4 connectivity provides 4x downstream bandwidth at 40Gbps compared to USB-C Gen 2 10Gbps data transfer speeds.
Technical Specifications
| Ethernet Technology | Gigabit Ethernet |
| Compatibility |
|
| Brand Compatibility | Apple |
| Operating System Supported | ChromeOS |
| iPadOS | |
| Linux | |
| macOS Big Sur | |
| Windows 8 |
| Host Interface | USB4 |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Number of DisplayPorts | 1 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| Mini DisplayPort | No |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x PD 85W Passthrough |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 1 |
| Number of USB Type-A Ports | 2 |
| USB Type-A | Yes |
| Weight (Approximate) | 110 g |
| Form Factor | Portable |
| Height | 84.9 mm |
| Width | 84.9 mm |
| Depth | 19.4 mm |
| Product Color | Black |
| Color Family | Black |
| Connectivity Technology | Wired |
| Memory Card Reader | No |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Number of Displays Supported | 2 |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K |
| 8K |
| Product Type | Docking Station |
| Manufacturer Part Number | HD583-GL |
| Manufacturer Website Address | http://www.targus.com/au |
| Manufacturer | Targus Group International |
| Product Model | HD583-GL |
| Product Name | HyperDrive USB4 Mobile Dock |
| Product Line | HyperDrive |
| Brand Name | Targus |
