40KVA/36KW WITH CASE 80X 12AH BATTERIES
40KVA/36KW WITH CASE 80X 12AH BATTERIES
Product Overview

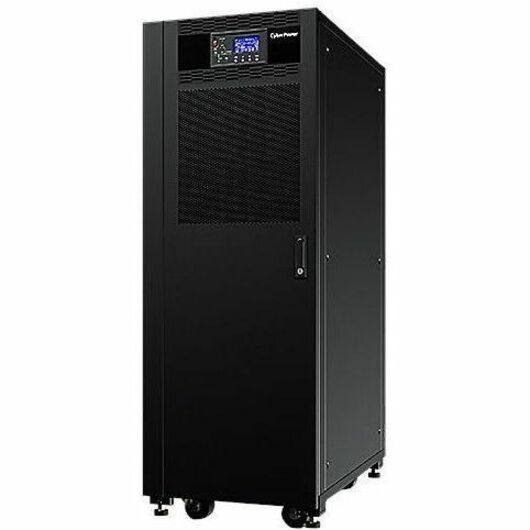

CyberPower HSTP3T40KEBC Double Conversion Online UPS - 40 kVA/36 kW - Three Phase - Tower - 5 Minute Stand-by - 230 V AC, 380 V AC, 400 V AC, 415 V AC Input - 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC Output - Pure Sine Wave - Serial Port - LCD Display
The 3-Phase UPS with parallel expansion capability to achieve N+X power redundancy for enterprise applications
Designed for server room and data center applications, the HSTP3T (3-Phase) Series adopts double-conversion topology to provide seamless pure sine wave output. The products also adopt ECO Mode to save on energy costs, Smart Battery Management (SBM) to extend battery lifespan, and multifunction LCD readout to display precise information. The power management software allows users to easily control and monitor the UPS system.
SERIES FEATURES
- Three-phase Design
- Online (Double Conversion) UPS Topology
- Online ECO Mode
- UPS Parallel Expansion
- Dual Inputs
- Generator Compatible
- Pure Sine Wave Output
- Overload Protection
- Maintenance Bypass Switch
- LCD Status Display
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
Technical Specifications
| Status Indicators |
LCD Display: |
| Display | LCD |
| Certifications & Standards |
|
| Serial Port | Yes |
| EPO Port | Yes |
| Battery Size | 12V |
| Number of Batteries | 80 |
| Battery Characteristics | Valve-regulated |
| Input Voltage | 380 V AC |
| 415 V AC | |
| 120 V AC | |
| 400 V AC | |
| 230 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 228 V AC - 478 V AC |
| 132 V AC - 276 V AC | |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.9 |
| Network Management | RS-485 |
| Dry Contact | |
| RS-232 | |
| SNMP/HTTP Remote Monitoring | |
| Relay (Dry Contact) Card |
| Application/Usage | Server Room |
| Data Center | |
| Generator | |
| Overload Protection | Yes |
| Phase | Three Phase |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | HSTP3T40KEBC |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | HSTP3T40KEBC |
| Product Name | HSTP3T40KEBC 40000VA Tower UPS |
| Product Series | HSTP3T |
| Brand Name | CyberPower |
