Product Overview

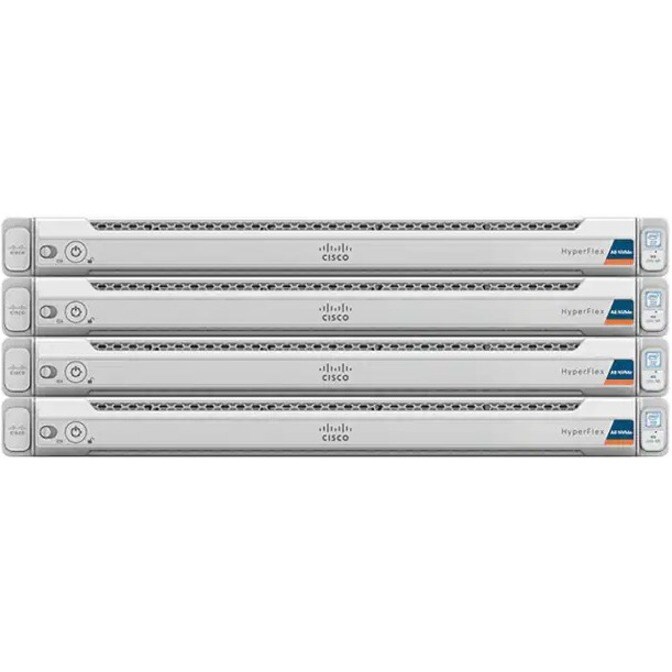

Cisco HyperFlex All Flash Edge 220 M6 system
Cisco HyperFlex Edge Systems are optimized for remote sites, branch offices, and edge environments. As a smaller form factor of Cisco HyperFlex, Cisco HyperFlex Edge keeps the full power of a next generation hyperconverged platform even without connecting to Cisco UCS Fabric Interconnects. Cisco HyperFlex Edge Systems support a variable configuration of 2, 3, or 4 HX converged nodes and supports the scale up of CPU, memory, and storage capacity (hot-add additional capacity drives).Technical Specifications
Display & Graphics
| Graphics Memory Capacity | 8 MB |
Warranty
| Additional Warranty Information |
|
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
Power Description
| Frequency | 50 Hz |
| 60 Hz |
Storage
| Supported Storage Drive Interfaces | Serial ATA III |
| SAS-3 |
Controllers
| Controller Type | 12Gb/s SAS |
| Serial ATA/600 | |
| RAID Supported | No |
I/O Expansions
| Number of Total Expansion Bays | 10 |
| Number of PCI Express x16 Slots | 5 |
| Total Number of Expansion Slots | 5.0 |
General Information
| Product Type | Barebone System |
| Manufacturer Part Number | HXAF-E-220M6S |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Name | HyperFlex HX220 M6 Edge Barebone System |
| Product Line | HyperFlex |
| Product Series | HX220 M6 Edge |
| Brand Name | Cisco |
Interfaces/Ports
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
Memory
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32.0 |
Physical Characteristics
| Weight (Approximate) | 19.30 kg |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 429.3 mm |
| Depth | 762 mm |
Processor
| Processor Supported | Xeon Bronze |
| Xeon Silver | |
| Xeon Platinum | |
| Xeon Gold | |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
