Cisco HyperFlex HX240c
Cisco HyperFlex HX240c
Product Overview

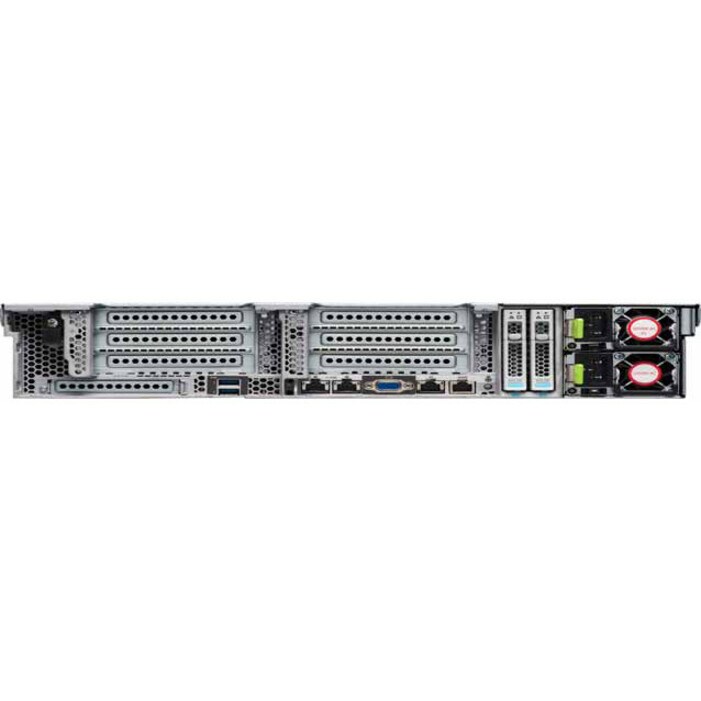

Cisco HyperFlex HX240c M5 All Flash Node
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.Technical Specifications
Display & Graphics
| Graphics Memory Capacity | 16 MB |
I/O Expansions
| Number of Total Expansion Bays | 24 |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
Interfaces/Ports
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
Controllers
| Controller Type | 12Gb/s SAS |
| Serial ATA/600 | |
| RAID Supported | Yes |
General Information
| Product Type | Barebone System |
| Manufacturer Part Number | HXAF240C-M5SX |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Packaged Quantity | 1 |
| Manufacturer | Cisco Systems, Inc |
| Product Name | HyperFlex HXAF240c M5 Barebone System |
| Product Line | HyperFlex |
| Product Series | HXAF240c M5 |
| Brand Name | Cisco |
Memory
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 24.0 |
Processor
| Processor Supported | Xeon Bronze |
| Xeon Gold | |
| Xeon Platinum | |
| Xeon Silver | |
| Number of Processors Supported | 2 |
Physical Characteristics
| Weight (Approximate) | 26.08 kg |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 87.1 mm |
| Width | 481.6 mm |
| Depth | 766.6 mm |
| Product Color | Silver |
