USB to RS232 DB9/DB25 Serial Adapter
USB to RS232 DB9/DB25 Serial Adapter
Product Overview

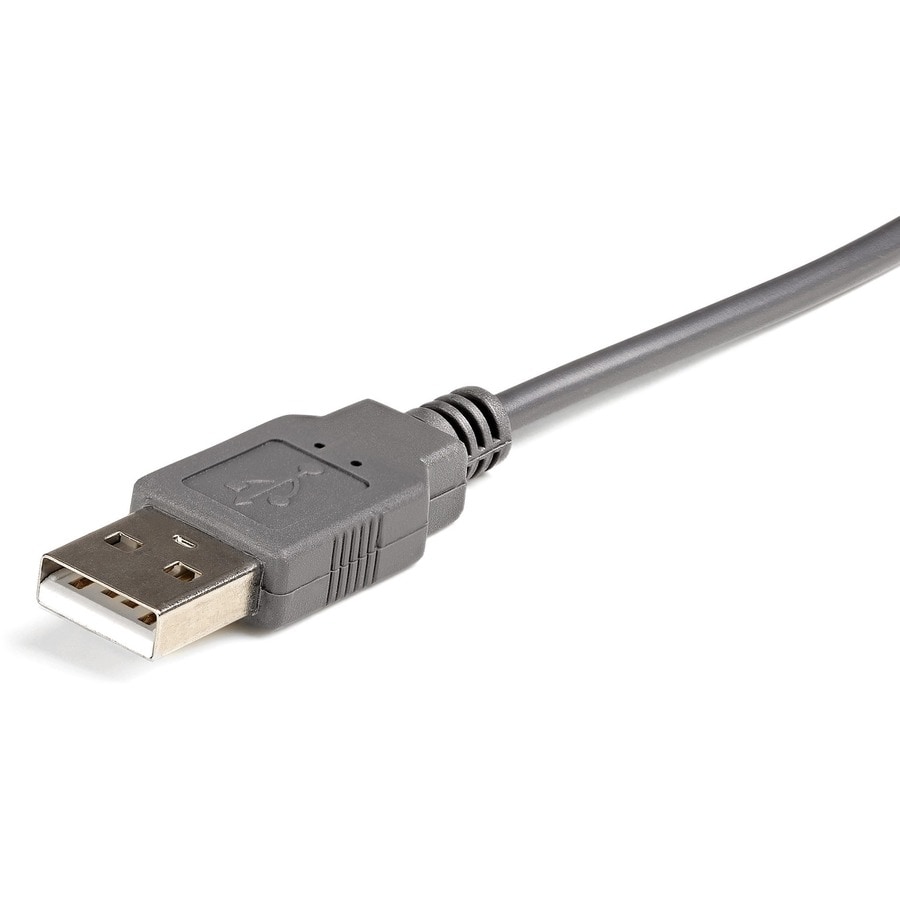

StarTech.com Data Transfer Adapter - 1 x 9-pin DB-9 RS-232 Serial - Male - 1 x USB 2.0 Type A - Male - Grey
The ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable (M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port. The integrated 3-foot (0.9 meter) cable allows it to be connected directly from the serial device to the computer without requiring additional cables.
A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, this high quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25 adapter for connection to varied serial equipment.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- USB TO SERIAL: Connect serial RS232 (DB9 or DB25) devices to a computer with this USB to serial adapter. Secure the cable using the screw-lock nuts located on the male serial DB9/DB25 connector; Reach peripherals with extended cable length 3ft (91cm)
- DEVICE COMPATIBILITY: Use this USB to RS232 serial adapter to reliably connect, configure, and monitor serial devices; Compatible with barcode readers / scanners, network switches, receipt printers, PLCs, medical devices, oscilloscopes, scales, etc.
- APPLICATIONS: This USB to serial cable is ideal for IT applications such as server rooms, industrial control/automation, logistics, POS, AV installations, laboratories, etc; Continue using legacy hardware with modern systems, using this USB to RS232 cable
- USB TO SERIAL ADAPTER SPECS: 3ft (91cm) Cable Length; Max Baud 230.4 Kbps; 512 Byte FIFO; Supports Windows, macOS, and Linux; Prolific PL2303GC Chipset; Odd/Even/Mark/Space/None Parity Modes; 4/5/6/7/8 Data Bits
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB to serial port adapter is backed for 2-years, including free lifetime 24/5 multilingual technical assistance~
Technical Specifications
| Weight (Approximate) | 73.7 g |
| Product Color | Grey |
| Additional Information |
|
| Certifications & Standards |
|
| Operating System Compatibility | macOS Catalina 10.15 |
| macOS Monterey 12.0 | |
| macOS Big Sur 11.0 | |
| Mac OS X 10.6 Snow Leopard | |
| Linux 2.4.x+ LTS | |
| Windows Server 2022 | |
| Windows Server 2019 | |
| Windows Server 2016 | |
| Windows Server 2012 | |
| Windows Server 2008 R2 | |
| Windows Server 2003 | |
| Windows Pocket PC 2003 | |
| Windows Embedded Standard 2009 | |
| Windows Embedded POSReady 2009 | |
| Windows CE 5.2 | |
| Windows CE 4.2 | |
| Windows 8.1 | |
| Windows 8 | |
| Windows 7 | |
| Windows 11 | |
| Windows 10 | |
| macOS Ventura 13.0 | |
| Windows Vista |
| Cable Length | 91.44 cm |
| Connector Type on First End | DB-9 RS-232 Serial - Male |
| Connector Type on Second End | USB 2.0 Type A - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Product Type | Data Transfer Adapter |
| Manufacturer Part Number | ICUSB232DB25 |
| Manufacturer Website Address | http://www.startech.com/au |
| Manufacturer | StarTech.com |
| Product Name | USB to RS232 DB9/DB25 Serial Adapter Cable - M/M |
| Brand Name | StarTech.com |
