IE-1000 GUI Based L2 switch
IE-1000 GUI Based L2 switch
Product Overview

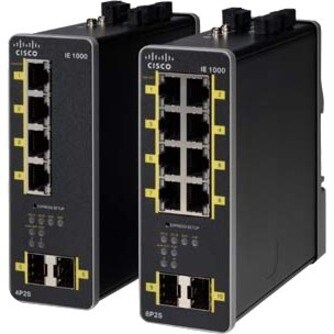

IE-1000 GUI Based L2 switch 5 FE copper ports
The Cisco® Industrial Ethernet (IE) 1000 Series Switches are compact rugged switches aimed to operational technology (OT) users with limited IT network knowledge. The IE 1000 Series Switches provide an easy transformation from the legacy factory to digital solution. For machine builders and machine-to-machine (M2M) solutions is an attractive entry level product as a GUI-based, lightly-managed switch. The IE 1000 is a good fit for locations with harsh temperatures and small spaces, and is Power over Ethernet (PoE) capable with and zero IT management.The IE 1000 is ideal for industrial Ethernet applications where small and easy-to-be-managed hardened products are required, including factory automation, intelligent transportation systems, city-surveillance programs, building automations etc.
The Cisco IE 1000 Series Switches complement the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000, IE 3000, IE 4000 and IE 5000 Series managed Switches.
The IE 1000 can be easily installed on your network. Through a user-friendly web device manager, the IE 1000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced and secure multiservices over industrial networks.
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Rail mounting is ideal for factory areas, in vehicles and marine applications
- The switch is rail mountable, you can easily install it in racks with concrete stability
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 5 networking ports
Technical Specifications
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 2 |
Power Description
| Power Source | Power Supply |
Miscellaneous
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
Media & Performance
| Network Technology | 10/100Base-T |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
Interfaces/Ports
| Modular | No |
| Uplink Port | Yes |
| Stack Port | No |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 1 x Fast Ethernet Uplink |
| 4 x Fast Ethernet Downlink |
Physical Characteristics
| Weight (Approximate) | 499 g |
| Form Factor | Rail-mountable |
| Height | 127 mm |
| Width | 38.1 mm |
| Depth | 114.3 mm |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IE-1000-4T1T-LM |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | IE-1000-4T1T-LM |
| Product Name | IE-1000-4T1T-LM Industrial Ethernet Switch |
| Product Series | 1000 |
| Brand Name | Cisco |
Price Trend
Current Price
AUD 1,688.32
