IE 16 10/100.2 FE SFP+2 T/SFP Base with
IE 16 10/100.2 FE SFP+2 T/SFP Base with
Product Overview
IE 16 10/100.2 FE SFP+2 T/SFP Base with 1588 + NAT

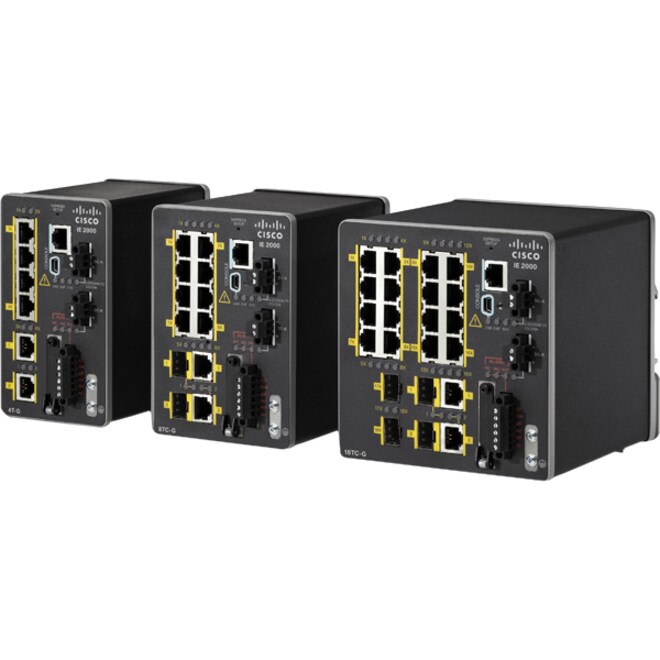

The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- The switch is rail mountable, you can easily install it in racks with concrete stability
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 20 networking ports
Technical Specifications
Network & Communication
| Layer Supported | 2 |
Reliability
| MTBF | 374052 Hour |
Management & Protocols
| Management |
|
| Manageable | Yes |
Power Description
| Power Source | Power Supply |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
I/O Expansions
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 4.0 |
Memory
| Flash Memory | 64 MB |
| Standard Memory | 256 MB |
| Memory Technology | DRAM |
| Memory Card Supported | SD |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IE-2000-16TC-G-N |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | IE-2000-16TC-G-N |
| Product Name | IE-2000-16TC-G-N Ethernet Switch |
| Product Series | IE-2000 |
| Brand Name | Cisco |
Physical Characteristics
| Weight (Approximate) | 1.97 kg |
| Form Factor | Rail-mountable |
| Height | 129.5 mm |
| Width | 127 mm |
| Depth | 133.6 mm |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| 10/100Base-TX | |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | Fast Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
Interfaces/Ports
| Token Ring Port | No |
| LRE Port | No |
| USB | Yes |
| Number of Network (RJ-45) Ports | 16 |
| Uplink Port | Yes |
| Bypass | No |
| Total Number of Network Ports | 20 |
| Port/Expansion Slot Details | 16 x Fast Ethernet Network |
| 2 x Gigabit Ethernet Uplink | |
| 2 x Gigabit Ethernet Expansion Slot | |
| 2 x Fast Ethernet Expansion Slot |
