Product Overview

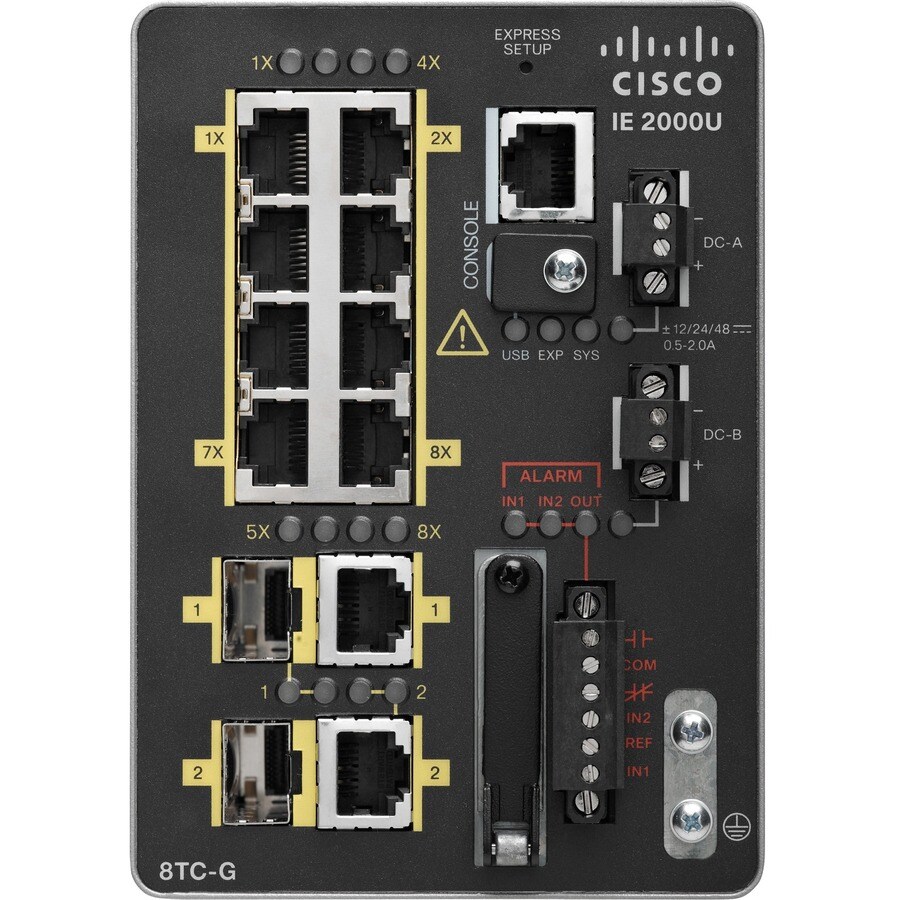

IE 8 10/1002 T/SFP BASE WITH 1588
The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Rail mounting is ideal for factory areas, in vehicles and marine applications
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 10 networking ports
Technical Specifications
| Layer Supported | 2 |
| MTBF | 374052 Hour |
| Management |
|
| Manageable | Yes |
| Form Factor | Desktop |
| Rail-mountable |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 2.0 |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IE-2000-8TC-G-E |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | IE-2000-8TC-G-E |
| Product Name | IE-2000-8TC-G-E Ethernet Switch |
| Product Series | IE-2000 |
| Brand Name | Cisco |
| Network Technology | 10/100Base-TX |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Flash Memory | 64 MB |
| Standard Memory | 256 MB |
| Memory Technology | DRAM |
| Memory Card Supported | SD |
| Token Ring Port | No |
| LRE Port | No |
| USB | Yes |
| Number of Network (RJ-45) Ports | 8 |
| Modular | No |
| Management Port | Yes |
| Uplink Port | Yes |
| Stack Port | No |
| Bypass | No |
| Total Number of Network Ports | 10 |
