RackM SW16 100 SFP 8 10/100PoE
RackM SW16 100 SFP 8 10/100PoE
Product Overview

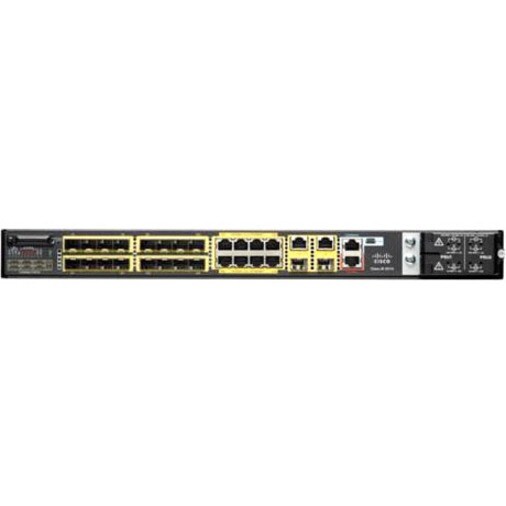

RackM SW16 100 SFP 8 10/100PoE 2GEuplink.NoPS REMANUFACTURED
The Cisco® Industrial Ethernet 3010 Series (IE 3010) is a family of rack-mount L2/L3 switches provide fiber SFP layer 3 aggregation and Power over Ethernet (PoE) configurations in the harsh industrial environment. It brings Cisco's leadership in switching to industrial Ethernet application with innovative features, robust security, and end-to-end Ethernet in the industrial network.
The Cisco IE 3010 Series features:
- Industrial design and compliance
- Tools for easy deployment, management, and replacement
- Market leading resiliency and availability features
- Network performance for the most demanding applications
- Network security based on open standards
- Integration of IT and industrial networks
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Electrical power is transmitted along with data in a single cable to devices such as Access Points, IP cameras or IP phones
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 10 ports
- Quickly and easily set up a wired network with 10 networking ports
Technical Specifications
Network & Communication
| Layer Supported | 3 |
Reliability
| MTBF | 230112 Hour |
Management & Protocols
| Management |
|
| Manageable | Yes |
Power Description
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
Memory
| Flash Memory | 1 GB |
| Standard Memory | 256 MB |
| Memory Technology | DDR2 SDRAM |
I/O Expansions
| Expansion Slot Type | SFP |
| Number of SFP Slots | 18 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 18.0 |
Interfaces/Ports
| Token Ring Port | No |
| LRE Port | No |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Management Port | Yes |
| Uplink Port | Yes |
| Number of PoE (RJ-45) Ports | 8 |
| Stack Port | No |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 16 x Fast Ethernet Expansion Slot |
| 2 x Gigabit Ethernet Expansion Slot | |
| 2 x Gigabit Ethernet Uplink | |
| 8 x Fast Ethernet Network |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| 10/100Base-TX | |
| 1000Base-X | |
| 100Base-FX | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
Physical Characteristics
| Weight (Approximate) | 4.54 kg |
| Form Factor | Rack-mountable |
| Desktop | |
| Height | 44.5 mm |
| Width | 444.5 mm |
| Depth | 355.6 mm |
| Compatible Rack Unit | 1U |
General Information
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | IE-3010-16S-8PC-RF |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | IE-3010-16S-8PC |
| Product Name | Rugged Industrial Ethernet switch |
| Product Series | 3010 |
| Brand Name | Cisco |
