Product Overview

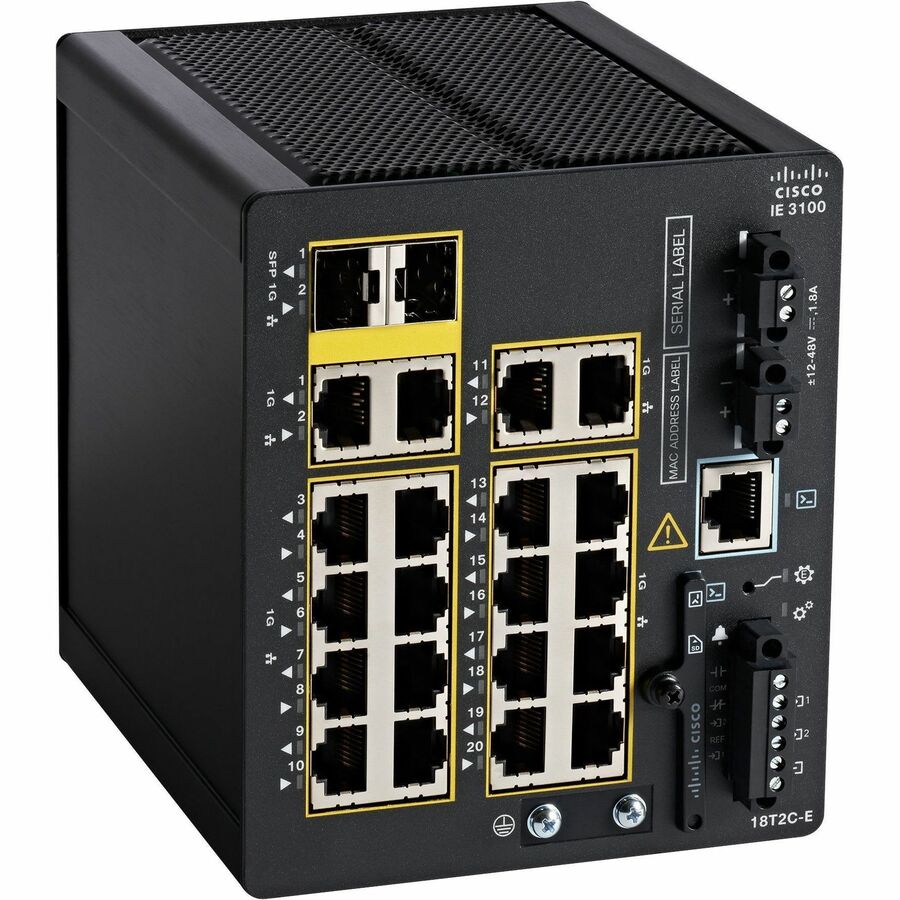

IE3100 w/18GE Copper 2GE Combo Fixed sys Network Essentials
The Cisco Catalyst IE3100 Rugged Series delivers mainstream adoption of Gigabit Ethernet connectivity in a compact, fixed form-factor switch that is purpose-built for a wide variety of extended enterprise and industrial applications in the most space constrained scenarios.
Product overview
Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.
The IE3100 Rugged Series switches offer:
- Models offering 6, 10, 12, or 20 Gigabit Ethernet ports with up to 4 Gigabit SFP uplink ports or 2 Gigabit Combo uplink ports
- Robust resiliency enabled by features such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and dual-input DC power supplies
- Simplified software management with universal images
- Support for industrial automation protocols EtherNet/IP (CIP), Modbus and PROFINET
- Support for Layer-2 Network Address Translation
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 20 ports
Technical Specifications
| Manageable | Yes |
| MTBF | 642050 Hour |
| Features | Fanless |
| Network Technology | 1000Base-T |
| Maximum Data Transfer Rate | 125 MB/s |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 20 |
| Port/Expansion Slot Details | 18 x 10/100/1000 Base-T RJ-45 Network Port |
| 1 x Micro-USB Type B | |
| 2 x Gigabit Ethernet Uplink Network Port | |
| 1 x (RS-232) RJ-45 Serial Port |
| Weight (Approximate) | 1.27 kg |
| Form Factor | DIN Rail Mountable |
| Compact | |
| Height | 127 mm |
| Width | 109.2 mm |
| Depth | 129 mm |
| Product Color | Black |
| Color Family | Black |
| Input Voltage | 60 V |
| 9.6 V | |
| 12 V | |
| 48 V | |
| Power Source | DC |
| Power Adapter | |
| Power Consumption | 36.70 W |
| Number of Power Supplies Supported | 2 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 240 W |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | IE-3100-18T2C-E |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Packaged Quantity | 1 |
| Manufacturer | Cisco Systems, Inc |
| Product Name | Catalyst IE3100 Rugged Layer 3 Switch |
| Product Line | Catalyst |
| Product Series | IE3100 Rugged |
| Brand Name | Cisco |
| Application/Usage | Industrial |
| Wireless Access Point | |
| Outdoor | |
| IP Camera | |
| Enterprise | |
| Certifications & Standards |
Information Technology Equipment: Industrial floor (control equipment): Hazardous Locations: Emissions, immunity and regulatory compliance |
| Energy Star | No |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1p |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3ab | |
| IEEE 802.3ad | |
| IEEE 802.3af | |
| IEEE 802.3ah | |
| IEEE 802.3at | |
| IEEE 802.3u | |
| IEEE 802.3z | |
| IEEE 802.1ab | |
| IEEE 802.1D | |
| IEEE 802.1Q | |
| IEEE 802.1s |
