CATALYST IE3300 W/ 8 GE COPPER (4PPOE) 2
CATALYST IE3300 W/ 8 GE COPPER (4PPOE) 2
Product Overview

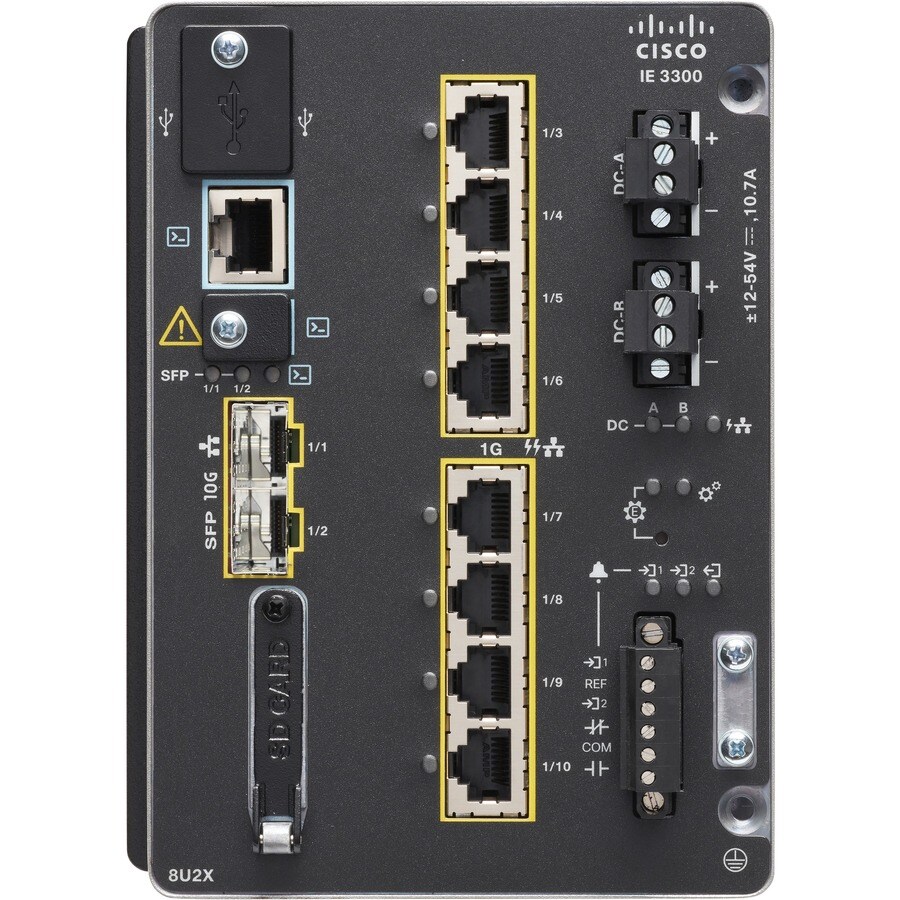

CATALYST IE3300 W/ 8 GE COPPER (4PPOE) and 2 10G SFP MOD NE
The Cisco Catalyst® IE3300 Rugged Series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact, form-factor, modular switch that is purpose-built for a wide variety of extended enterprise and industrial applications.
Product overview
Cisco Catalyst IE3300 Rugged Series switches deliver high-speed up to 10 Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3300 Rugged Series offers the flexibility to expand to up to 26 ports of Gigabit Ethernet or up to 24 ports of Gigabit Ethernet and 2 ports of 10 Gigabit (10G) Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3300 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3300 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Cisco Industrial Network Director, and can be easily set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch®.
The IE3300 all Gigabit series (with expansion module) supports power budget of up to 360W for PoE/PoE+, shared across up to 24 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
The IE3300 10G series (with expansion module) supports power budget of up to 480W (pending safety & compliance approval) for IEEE® 802.3af / 802.3at / 802.3bt (type 3 & type 4), shared across up to 24 ports, and is ideal for connecting high power PoE end devices such as PTZ IP cameras, phones, high power 802.11ac Wave 2 / 802.11ax wireless access points, sensors, and more.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Quickly and easily set up a wired network with 8 networking ports
Technical Specifications
| Manageable | Yes |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Weight (Approximate) | 2.04 kg |
| Form Factor | DIN Rail Mountable |
| Height | 152.4 mm |
| Width | 111.8 mm |
| Depth | 134.6 mm |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3z |
| IEEE 802.3at | |
| IEEE 802.3ah | |
| IEEE 802.3af | |
| IEEE 802.3ad | |
| IEEE 802.3 | |
| IEEE 802.1x | |
| IEEE 802.1w | |
| IEEE 802.1s | |
| IEEE 802.1Q | |
| IEEE 802.1p | |
| IEEE 802.3bt | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.11ac | |
| IEEE 802.1ab | |
| IEEE 802.1D |
| Power Source | DC |
| Power Consumption | 42 W |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 480 W |
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE |
| 4 x Gigabit Ethernet Network | |
| 2 x 10 Gigabit Ethernet Expansion Slot |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IE-3300-8U2X-E |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | IE-3300-8U2X |
| Product Name | Catalyst IE-3300-8U2X Ethernet Switch |
| Product Line | Catalyst |
| Product Series | IE3300 |
| Brand Name | Cisco |
