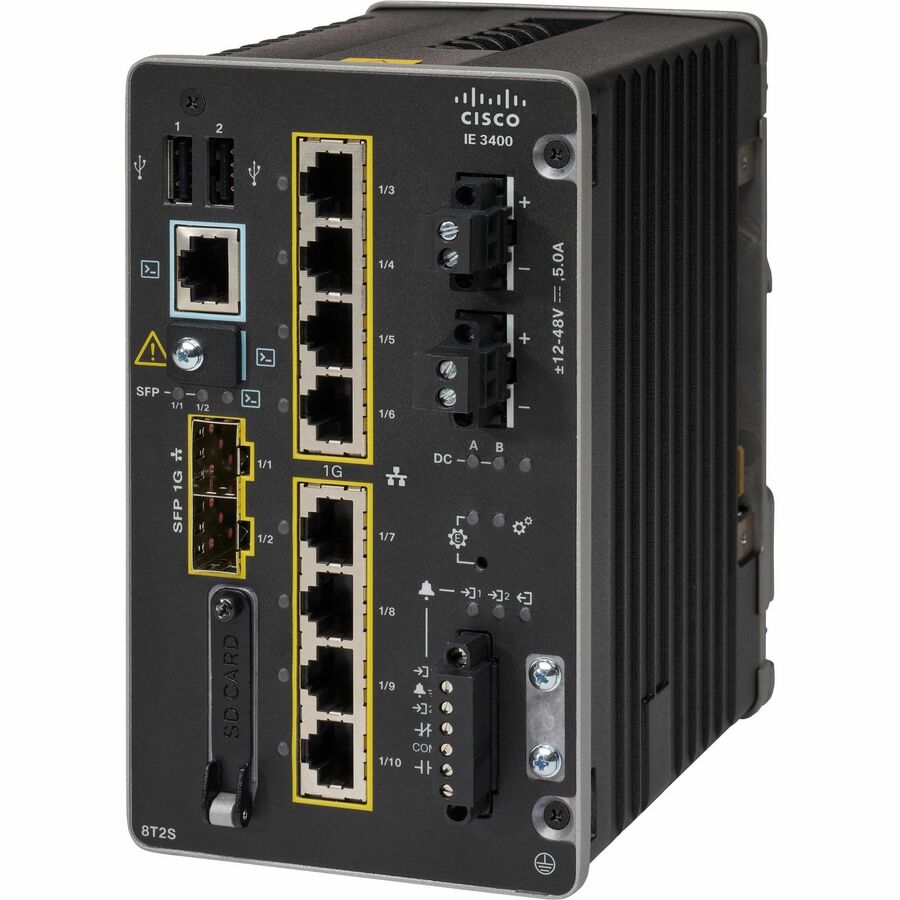

Catalyst IE3400 with 8 GE Copper and 2 G
Catalyst IE3400 with 8 GE Copper and 2 G
Product Overview
Catalyst IE3400 with 8 GE Copper and 2 G
The Cisco Catalyst® IE3400 Rugged Series ushers in mainstream adoption of advanced Gigabit Ethernet connectivity in a compact form-factor, modular switch purpose-built for a wide variety of extended enterprise and industrial applications.
Product overview
The Cisco Catalyst IE3400 Rugged Series switches deliver advanced, high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3400 Rugged Series offers the flexibility to expand up to 26 ports of Gigabit Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3400 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
The IE3400 Series runs Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3400 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch®.
The IE3400 series (with expansion module) supports power budget of up to 480W for PoE/PoE+, shared across 24 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 8 networking ports
Technical Specifications
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Power Source | DC |
| Power Consumption | 36 W |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| 8 x Gigabit Ethernet Network |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3ad |
| IEEE 802.3 | |
| IEEE 802.1x | |
| IEEE 802.1w | |
| IEEE 802.1s | |
| IEEE 802.1Q | |
| IEEE 802.1p | |
| IEEE 802.1D | |
| IEEE 802.1ab | |
| IEEE 802.3z | |
| IEEE 802.11ac | |
| IEEE 802.3u | |
| IEEE 802.3bt | |
| IEEE 802.3at | |
| IEEE 802.3ah | |
| IEEE 802.3af |
| Weight (Approximate) | 1.70 kg |
| Form Factor | DIN Rail Mountable |
| Height | 152 mm |
| Width | 91 mm |
| Depth | 135 mm |
| Network Technology | 100/1000Base-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| 2.5 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Application/Usage | Enterprise |
| Business | |
| Network | |
| IP Camera | |
| IP Phone | |
| Wireless Access Point | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IE34008T2SE |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | IE-3400-8T2S |
| Product Name | Catalyst IE-3400-8T2S Ethernet Switch |
| Product Line | Catalyst |
| Product Series | IE3400 |
| Brand Name | Cisco |
