IE 4000 16 X RJ45 10/100/1000M 4 X 1G C
IE 4000 16 X RJ45 10/100/1000M 4 X 1G C

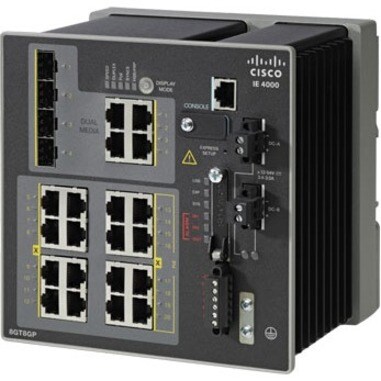

Product Overview
PYP:IE 4000 16 X RJ45 10/100/1000M. 4 X 1G C
Developed specifically to withstand the harshest industrial manufacturing environments, these switches offer today's most flexible and scalable industrial Ethernet platform that will grow with your network.The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.
The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 20 ports
- Quickly and easily set up a wired network with 20 networking ports
Technical Specifications
Network & Communication
| Layer Supported | 3 |
Reliability
| MTBF | 558630 Hour |
Management & Protocols
| Management |
|
| Manageable | Yes |
Power Description
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
Interfaces/Ports
| Token Ring Port | No |
| LRE Port | No |
| USB | No |
| Number of Network (RJ-45) Ports | 20 |
| Modular | No |
| Management Port | No |
| Uplink Port | Yes |
| Bypass | No |
| Total Number of Network Ports | 20 |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| 4 x Gigabit Ethernet Uplink |
Memory
| Flash Memory | 128 MB |
| Standard Memory | 512 MB |
| Memory Technology | DRAM |
| Memory Card Supported | SD |
Physical Characteristics
| Weight (Approximate) | 2.88 kg |
| Height | 155.4 mm |
| Width | 155.4 mm |
| Depth | 129.3 mm |
General Information
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | IE-4000-16GT4G-E |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Name | 4000 Layer 3 Switch |
| Product Series | 4000 |
| Brand Name | Cisco |
