IE 4000 8 x SFP 1G 4 x 1G Combo LAN Base
IE 4000 8 x SFP 1G 4 x 1G Combo LAN Base
Product Overview

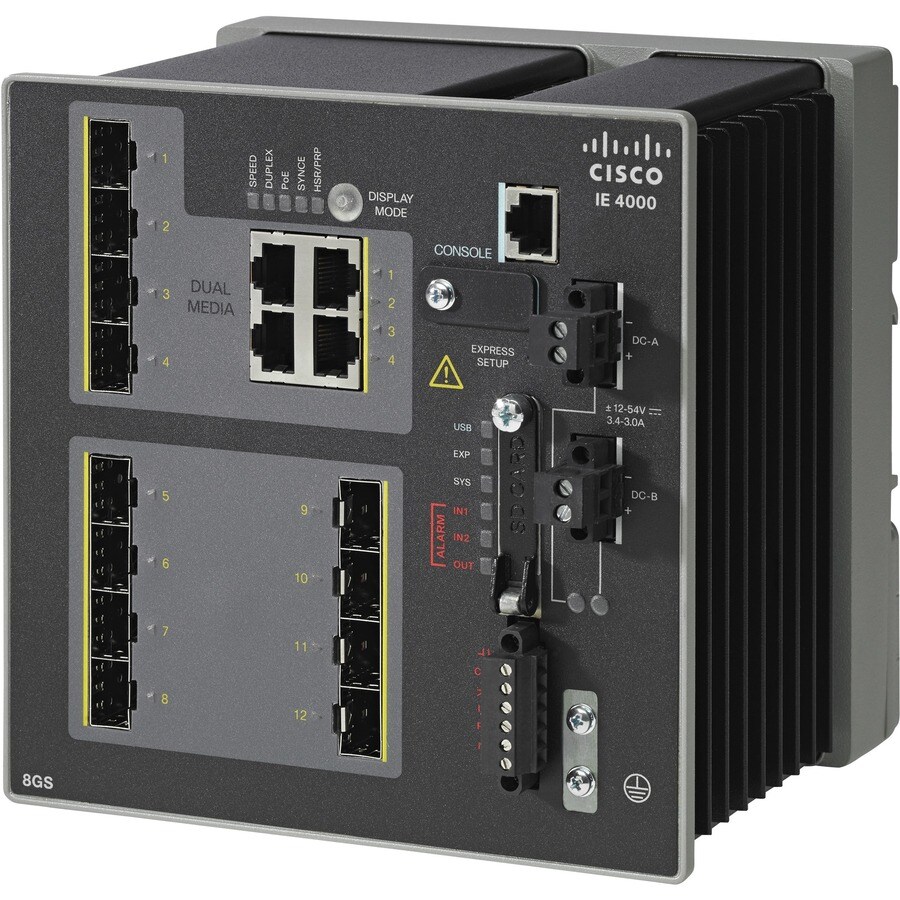

IE 4000 8 x SFP 1G 4 x 1G Combo LAN Base
The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.
The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rail mounting is ideal for factory areas, in vehicles and marine applications
- The switch is rail mountable, you can easily install it in racks with concrete stability
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
- Quickly and easily set up a wired network with 4 networking ports
Technical Specifications
Management & Protocols
Manageable | Yes |
Miscellaneous
Environmentally Friendly | Yes |
Network & Communication
Layer Supported | 3 |
Power Description
Power Source | Power Supply |
I/O Expansions
Expansion Slot Type | SFP |
Number of SFP Slots | 8 |
Shared SFP Slot | Yes |
Total Number of Expansion Slots | 8.0 |
General Information
Product Type | Ethernet Switch |
Manufacturer Part Number | IE-4000-8GS4G-E |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | IE-4000-8GS4G-E |
Product Name | IE-4000-8GS4G-E Ethernet Switch |
Product Series | 4000 |
Brand Name | Cisco |
Media & Performance
Network Technology | 1000Base-T |
1000Base-X | |
Ethernet Technology | Gigabit Ethernet |
Media Type Supported | Twisted Pair |
Optical Fiber |
Physical Characteristics
Weight (Approximate) | 2.88 kg |
Form Factor | Rail-mountable |
Height | 129.3 mm |
Width | 155.4 mm |
Depth | 155.4 mm |
Interfaces/Ports
Modular | No |
Uplink Port | Yes |
Stack Port | No |
Total Number of Network Ports | 4 |
Port/Expansion Slot Details | 8 x Gigabit Ethernet Expansion Slot |
4 x Gigabit Ethernet Uplink |
