IE4010 4x 1G SFP 24 10/100/1000 GE PoE
IE4010 4x 1G SFP 24 10/100/1000 GE PoE
Product Overview

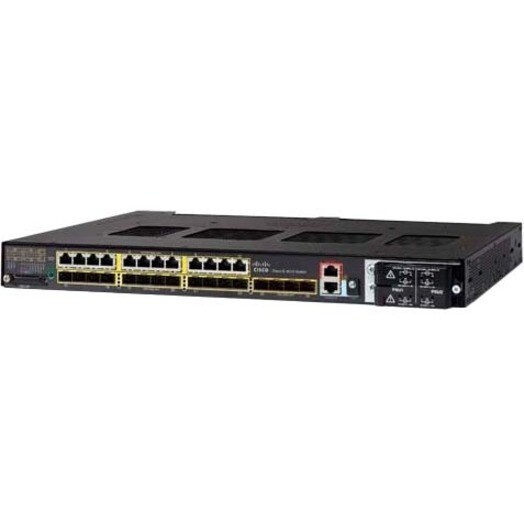

IE4010 4X 1G SFP 24 10/100/1000 GE POE
Cisco® Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The 4010 delivers comprehensive Cisco IOS® Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.The 4010 has a comprehensive software feature set, developed from manufacturing, utility, and enterprise switching products making it excellent for extended temperature range locations, such as smart buildings, utility, process control, intelligent transportation systems (ITS), and city surveillance programs. The 4010 complements the existing Cisco IE 2000, IE 2000U, IE 3000, IE 3010, IE 4000, and IE 5000 Series Switching families, as well as the Cisco CGS 2520 Switch.
The 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Quickly and easily set up a wired network with 24 networking ports
Technical Specifications
Management & Protocols
Manageable | Yes |
Miscellaneous
Environmentally Friendly | Yes |
Network & Communication
Layer Supported | 3 |
Power Description
Power Source | Power Supply |
Redundant Power Supply Supported | Yes |
I/O Expansions
Expansion Slot Type | SFP |
Number of SFP Slots | 4 |
Shared SFP Slot | No |
Total Number of Expansion Slots | 4.0 |
General Information
Product Type | Ethernet Switch |
Manufacturer Part Number | IE-4010-4S24P |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | IE-4010-4S24P |
Product Name | IE-4010-4S24P Industrial Ethernet Switch |
Product Series | 4010 |
Brand Name | Cisco |
Media & Performance
Network Technology | 1000Base-X |
10/100/1000Base-T | |
Ethernet Technology | Gigabit Ethernet |
Media Type Supported | Twisted Pair |
Optical Fiber |
Interfaces/Ports
Modular | Yes |
Uplink Port | Yes |
Stack Port | No |
Total Number of Network Ports | 24 |
Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
4 x Gigabit Ethernet Expansion Slot |
Physical Characteristics
Weight (Approximate) | 5.49 kg |
Form Factor | Rack-mountable |
Height | 44.5 mm |
Width | 444.5 mm |
Depth | 355.6 mm |
Compatible Rack Unit | 1U |
Price Trend
Current Price
AUD 17,688.72
