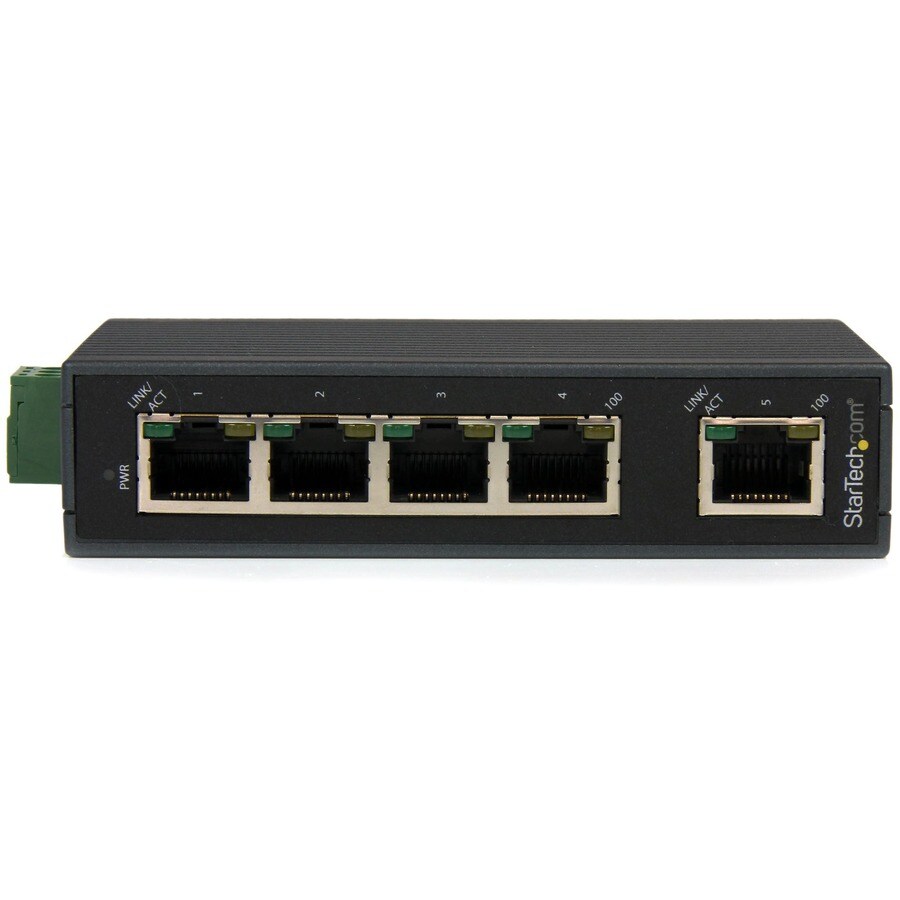

5 Port Industrial 10/100 Ethernet Switch
5 Port Industrial 10/100 Ethernet Switch
Product Overview
StarTech.com 5 Ports Ethernet Switch - Fast Ethernet - 10/100Base-TX - TAA Compliant - 2 Layer Supported - 2.12 W Power Consumption - Twisted Pair - Rail-mountable
This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.Conquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
Get up and running in no time
This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- The switch is rail mountable, you can easily install it in racks with concrete stability
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
Technical Specifications
Management & Protocols
| Manageable | No |
Miscellaneous
| TAA Compliant | Yes |
Network & Communication
| Layer Supported | 2 |
Reliability
| MTBF | 1179133 Hour |
Media & Performance
| Network Technology | 10/100Base-TX |
| Media Type Supported | Twisted Pair |
Interfaces/Ports
| Token Ring Port | No |
| LRE Port | No |
| USB | No |
| Number of Network (RJ-45) Ports | 5 |
| Network (RJ-45) | Yes |
| Modular | No |
| Management Port | No |
| Stack Port | No |
| Bypass | No |
| Total Number of Network Ports | 5 |
Power Description
| Power Consumption | 2.12 W |
| PoE (RJ-45) Port | No |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IES5102 |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 5-Port Industrial Ethernet Switch - DIN Rail Mountable |
| Brand Name | StarTech.com |
Physical Characteristics
| Weight (Approximate) | 150.3 g |
| Length | 71.1 mm |
| Height | 109.2 mm |
| Width | 25.4 mm |
| Product Color | Black |
| Color Family | Black |
| Product Material | Plastic |
Price Trend
Current Price
AUD 201.99
