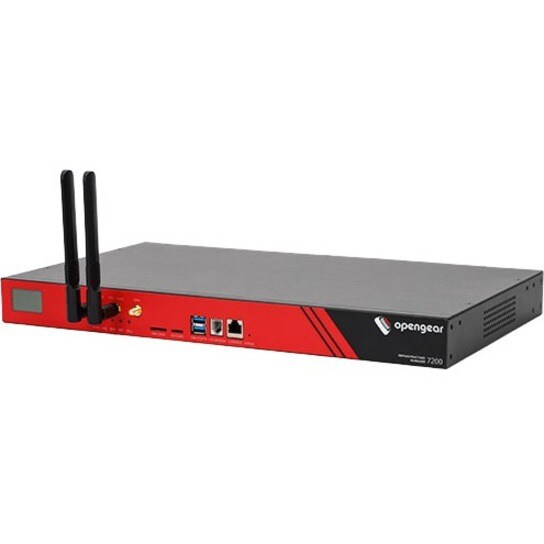

Product Overview

16 Port Serial Console, software selectable, Dual DC PSU, 24 Port GbE Switch, 2x1GbE/Fiber SFP, 16GB flash,Verizon 4G LTE, 4 Year Warranty

16 SERIAL SOFTWARE SELECTABLE DUAL DC 24 ETHERNET PORTS 2 GBE ETHERNET OR FIBER SFP 16GB FLASH VERIZON 4G LTE CELLULAR MULTI CARRIER V.92 MODEM

Technical Specifications

Power Description
Input Voltage120 V AC
230 V AC
General Information
Product TypeInfrastructure Management Equipment
Manufacturer Part NumberIM7216-2-24E-DDC-LMV
Manufacturer Website Addresshttp://www.opengear.com
ManufacturerOpengear
Product ModelIM7216-2-24E-DDC-LMV
Product NameIM7216-2-24E-DDC-LMV Infrastructure Management Equipment
Product SeriesIM7200
Brand NameOpengear
Miscellaneous
Additional Information
    • Multicarrier Verizon
    • 16 x RJ45 RS-232 Software Selectable Console Ports and 24 Port Gigabit Switch
    • Ethernet Ports: 2 x 10/100/1000 Ethernet/SFP Fiber port with 1500V AC Isolation and ESD Protection
    • Console Port: 1 x RJ45 RS-232 Console Port
    • PSTN Modem: 1 x Internal V.92 modem with RJ11 Socket
    • Serial Ports: Software Selectable 50 to 230,400 bps
    • CPU: 1 GHz ARM SoC (Marvell 88F6283)
    • Operating Temperature: 5°C to 50°C, 41°F to 122°F
    • Storage Temperature: -30°C to +60°C, -22°F to +140°F
    • Humidity: 5% to 90%
    • Environmental Monitoring: Serial EMD5000 to support physical, smoke, water leak and vibration sensors
    Memory:
    • 256 MB DDR2 SDRAM
    • 64 MB Embedded NOR Flash
    Security, Encryption & Authentication:
    • SSH
    • FIPS-140-2 compliant Open SSL Module
    • Strong ciphers -AES encryption
    • Cisco-compatible IPsec
    • OpenVPN
    • AAA - TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback
    • Two factor authentication via remote AAA
    • Configurable stateful firewall
    • Actively developed & support and security notifications-frequent firmware updates
Application/UsageRemote Management
Package Contents
  • IM7216-2-24E-DDC-LMV Infrastructure Management Equipment
  • Rack Mount Kit - 2 x Ears and Screws
  • 1 x Cisco Straight DB9F-RJ45 Adapter
  • 1 x CAT5 Patch Cable 5'
  • Quick Start Guide
  • 2 x Cellular Antennas
  • 1 x Cellular Antenna Extender with Magnetic Base
Certification
    Emissions:
    • FCC Part 15 Subpart B (Class A)
    • ICES-003 Issue 5 (2014)
    • AS/NZS CISPR 22: 200410 (Class A)
    • EN 55032:2015 (Class A)
    • EN 61000-3-2 Harmonics Current Emissions (2014)
    • EN 61000-3-3 Voltage Fluctuation and Flicker (2013)
    Immunity:
    • EN 55024 ITE Immunity (2010)
    • IEC 61000-4-2 (2008)
    • IEC 61000-4-3 (2006) A1 (2007) A2 (2010)
    • IEC 61000-4-4 (2012)
    • IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013, C-Tick
    • IEC 61000-4-5 (2014)
    • IEC 61000-4-6 (2014)
    • IEC 61000-4-8 (2010)
    • IEC 61000-4-11 (2004)

Price Trend

Current Price
AUD 9,668.56
