Product Overview

16 Port Serial Console, software selectable, Dual AC PSU, 24 USB console ports, 2x1GbE/Fiber SFP, 16GB flash, 4G LTE, 4 Year Warranty

IM7200 Infrastructure Manager

In data centers and large IT deployments, the Infrastructure Manager allows network operations staff to securely access critical network devices from the control room or Network Operations Center (NOC).

Smart Out-of-Band, provides a physical connection to your network devices, managed via a secure remote link. Reduce your reliance on third-party remote-hands for configuration, power cycling and many standard processes.

The IM units have 8-48 software-selectable serial console ports, dual GbE connections with built-in Fiber SFP, 16GB internal storage, and available 4G-LTE cellular embedded module. 24 port Gigabit switch and 24 USB console port models are also available.

  • 8 - 48 port serial console server. Also available in 16 port + 24 USB 2.0 console ports and 16 port + 24 Gigabit Ethernet Switch
  • Dual network connections with built-in Fiber SFP and GbE copper ports
  • Software selectable serial pinouts
  • PSTN, and optional 4G LTE cellular module for remote Smart OOB™ access during primary outage
  • Centralize the management of all your enterprise data centers and remote sites with Lighthouse
  • Failover to Cellular™ for out-of-band access
  • Integrated RESTful API engine on devices running firmware 4.0 or higher
  • Zero Touch Provisioning (ZTP) automation over the network, without manual user interaction
  • Link Layer Discovery Protocol (LLDP) discover, identify and verify attached devices on your local network.

Technical Specifications

Power Description
Input Voltage120 V AC
230 V AC
General Information
Product TypeInfrastructure Management Equipment
Manufacturer Part NumberIM7216-2-24U-DAC-LMP-AU
Manufacturer Website Addresshttp://www.opengear.com
ManufacturerOpengear
Product ModelIM7216-2-24U-DAC-LMP
Product NameIM7216-2-24U-DAC-LMP Infrastructure Management Equipment
Product SeriesIM7200
Brand NameOpengear
Miscellaneous
Additional Information

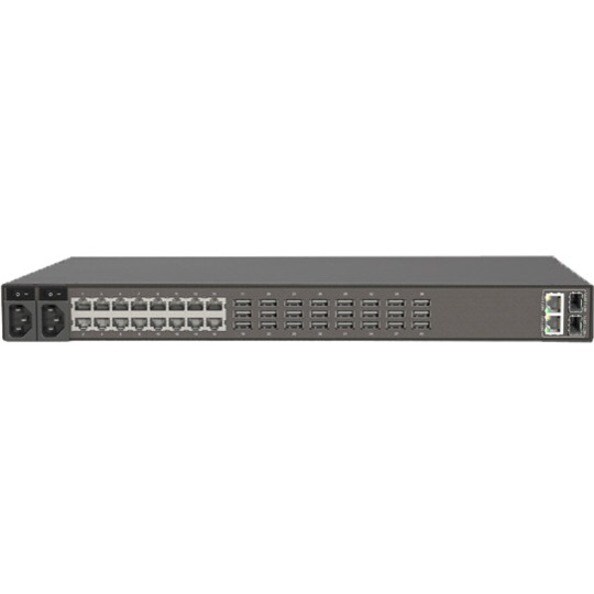

    • 16 x RS-232 serial ports + 24 USB 2.0 console ports
    • Dual LAN Ports available by selecting two from four available ports (x 10/100/1000 RJ45 copper and 2 x SFP fiber module slots)
    • All serial ports are RJ45 RS-232 (50 to 230,400bps, software selectable Cisco-straight or Cisco-rolled pinout)
    • 1 x Internal V.92 Modem with RJ11 Phone Socket
    • 2 x USB 3.0 Host Ports
    • LCD Panel
    • 1 x RJ45 RS-232 Local Console Port (Cisco-straight)
    • Dual Internal Universal AC Power Supplies
    • 16 Gigabytes Internal Flash
    • 4G LTE Cellular Multi Carrier
Application/UsageRemote Management
Package Contents
  • IM7216-2-24U-DAC-LMP Infrastructure Management Equipment
  • Rack Mount Kit - Two Ears and Screws (Part# 590001)
  • 1 x Cisco Straight DB9F-RJ45 Adapter (Part# 319015 )
  • 1 x CAT5 Patch Cable 5' (Part# 440016)
  • Quick Start Guide
  • 2 x AU A/C Power Cords
  • 2 x Cellular Antennas (Part# 569028)
  • 1 x Cellular Antenna Extender with Magnetic Base (Part# 449041)
TAA CompliantYes

Price Trend

Current Price
AUD 8,986.19
