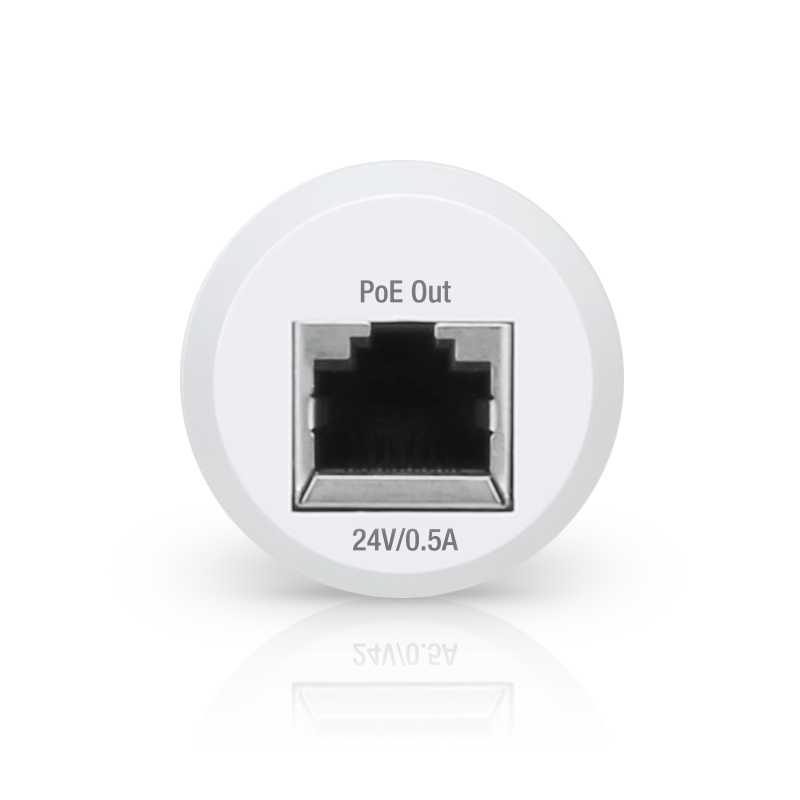

INS-3AF-I-G
Product Overview
| Mechanical | |
|---|---|
| Model | INS-3AF-i-G |
| Dimensions | Ø30.3 x 95.5 mm (Ø1.2 x 3.7") |
| Weight | 50 g (1.8 oz) |
| Networking interface | (1) GbE RJ45 port (PoE in) (1) GbE RJ45 port (PoE out) |
| Power method | 24V passive PoE (Pairs 4, 5+; 7, 8 return) |
| Power supply | PoE, 48V DC, 0.5A |
| Max. power output | 24V DC, 0.5A |
| Ethernet ESD/surge protection | ±15kV |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
Technical Specifications
| Mechanical | |
|---|---|
| Model | INS-3AF-i-G |
| Dimensions | Ø30.3 x 95.5 mm (Ø1.2 x 3.7") |
| Weight | 50 g (1.8 oz) |
| Networking interface | (1) GbE RJ45 port (PoE in) (1) GbE RJ45 port (PoE out) |
| Power method | 24V passive PoE (Pairs 4, 5+; 7, 8 return) |
| Power supply | PoE, 48V DC, 0.5A |
| Max. power output | 24V DC, 0.5A |
| Ethernet ESD/surge protection | ±15kV |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
