Product Overview

829 INDUSTRIAL ISR 4G/LTE MULTIMODE GLOBAL 802.11N ETSI

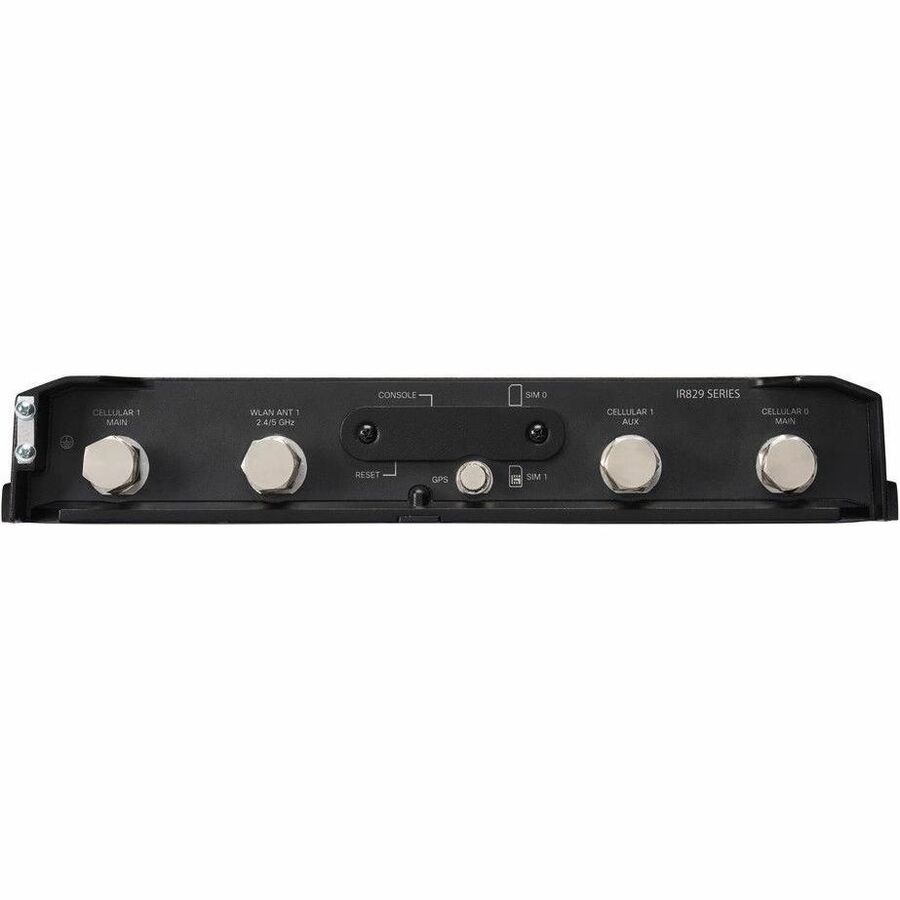

Cisco® IR829 Industrial Integrated Services Routers are ruggedized integrated services routers designed for deployment in harsh industrial environments.

The IR829 Industrial Integrated Services Routers (IR829) have a compact form factor, multimode 4G LTE and 3G wireless WAN (dual active LTE and single LTE models), IEEE 802.11a/b/g/n WLAN, Ethernet (RJ45 and SFP), serial connections, integrated storage and compute capability for edge application hosting, and integrated 9-32 VDC power input. The IR829 also extends the connectivity to include Low Power Wide-Area (LPWA) access using Cisco Interface Module for LoRaWANTM. With it, you can rapidly deploy a wide variety of Internet of Things (IoT) solutions, including fleet management, mass transit, and remote asset monitoring. The 829 routers are designed to withstand hostile environments including shock, vibration, and humidity, as well as a wide temperature range (-40°C to +60°C and type-tested at +85°C for 16 hours). The IR829 brings together enterprise-grade wireline-like services such as Quality of Service (QoS), Cisco advanced VPN technologies (DMVPN and Flex VPN) and multi-VRF for WAN, highly secure data, voice, and video communications and Cisco IOx, an open, extensible environment for hosting applications at the network edge.IR829 meets FirstNet requirements, has passed certification, and supports all FirstNet features.

  • Gigabit Ethernet port for ultra-fast wired network speeds
  • Fits neatly into a panel and allows you to keep your cables tidy and organized
  • Maximize the throughput for smoother and faster HD video streaming and file transfer by utilizing the ISM Band
  • Offers cost-effective and reliable primary WAN connectivity in locations where wireline services such as DSL and ISDN are not available

Technical Specifications

Storage
Storage MediaeMMC
Flash Memory Capacity4 GB
Interfaces/Ports
Number of Network (RJ-45) Ports4
Number of Broadband (RJ-45) Ports1
Total Number of Network Ports5
Miscellaneous
Certifications & Standards
    • 47 CFR Part 15 B
    • EN 55032:2015
    • CISPR 32 Edition 2
    • CNS13438: 2006
    • EN 300 386 V1.6.1
    • EN61000-3-2: 2014 (AC Power Supply)
    • EN61000-3-3: 2013 (AC Power Supply)
    • ICES-003 Issue 6: 2016
    • KN 32: 2015
    • TCVN 7189: 2009
    • V-2/2015.04
    • V-3/2015.04
    • CISPR24: 2010 + A1: 2015
    • EN 300 386 V1.6.1
    • EN 55024: 2010 + A1: 2015
    • EN 55035: 2017
    • KN35: 2015
    • TCVN 7317:2003
    • QCVN 18:2014
    • FCC Part 15.407
    • FCC Part 15.247
    • RSS 247
    • FCC Part 2.1091 (MPE)
    • RSS 102 (RF Exposure)
    • EN 300 328 v2.1.1
    • EN 301 893 v2.1.1
    • EN 62311 (RF Exposure)
    • AS/NZ 4268:2017
    • MIC Article -19, 19-3.2, 19-3
    • MIC Article 2, 9
    • NCC LP0002:2018
    • KCC Article 13:2013
    • EN 300 328 v1.9.1
    • EN 301 893 v1.8.1
    • EN 301 489 - 1,17
    • FCC 47 CFR Part 22,24,27
    • RSS 102, 132, 133
    • AS/NZ ACMA EMR, AS/CA S042.1, 4
    • MIC Article 2 Paragraph 1, Item 11-3,7,19
    • EN 301 908-1,2,13
    • EN 301 511
    • EN 301 489 -1, 52 v2.1.1
    • EN 301 489 - 1,3,7,24
    • EN 303 413 v1.1.1
    • EN 301 489 - 1,19
    • EN 50121-3-2:2016
    • EN 50121-4:2016
    • EN 50155:2007 (Clause nrs: 12.2.1, 12.2.3-12.2.5, 12.2.7-12.2.8, 12.2.11, 12.2.14)
    • UL/CSA 60950-1
    • EN 60950-1
    • IEC 60950-1 CB
    • UL 121201
    • CSA 213
    • UL/CSA 60079-0, -15
    • IEC 60079-0, -15 IECEx Test Report
    • EN 60079-0, -15 ATEX Certificate
    • USL, CNL- Class 1, Division 2, Groups A,B,C & D Hazardous Locations
    • USL - Class 1, Zone 2, AEx nA IIC T4
    • CNL - Class 1, Zone 2, Ex nA IIC T4 Gc
Environmentally FriendlyYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Wireless Specifications
Broadband Transmission TechnologyCellular
Ethernet
Wireless LAN StandardIEEE 802.11a/b/g/n
ISM BandYes
UNII BandYes
ISM Maximum Frequency2.40 GHz
UNII Maximum Frequency5 GHz
Encryption StandardAES (128-bit)
3DES
DES
AES (256-bit)
AES (192-bit)
Cellular Generation4G
Firewall TypeNAT
Total Wireless Transmission Speed37.50 MB/s
Technical Information
Standard Memory2 GB
Network BandDual Band
Wi-Fi GenerationWi-Fi 4
Network & Communication
VPN SupportedYes
Ethernet TechnologyGigabit Ethernet
Multi-SIM SupportedYes
Number of SIM Card Supported2
General Information
Product TypeWireless Integrated Services Router
Manufacturer Part NumberIR829GWLTELAZK9
Manufacturer Website Addresshttp://www.cisco.com/c/en_au
ManufacturerCisco Systems, Inc
Product ModelIR829
Product NameIR829 Wireless Integrated Services Router
Brand NameCisco
Physical Characteristics
Weight (Approximate)2.04 kg
Form FactorPanel-mountable
DIN Rail Mountable
Door Mount
Desktop
Height43.9 mm
Width279.4 mm
Depth195.6 mm
