Cisco Catalyst IR8340 Rugged Router
Cisco Catalyst IR8340 Rugged Router
Product Overview

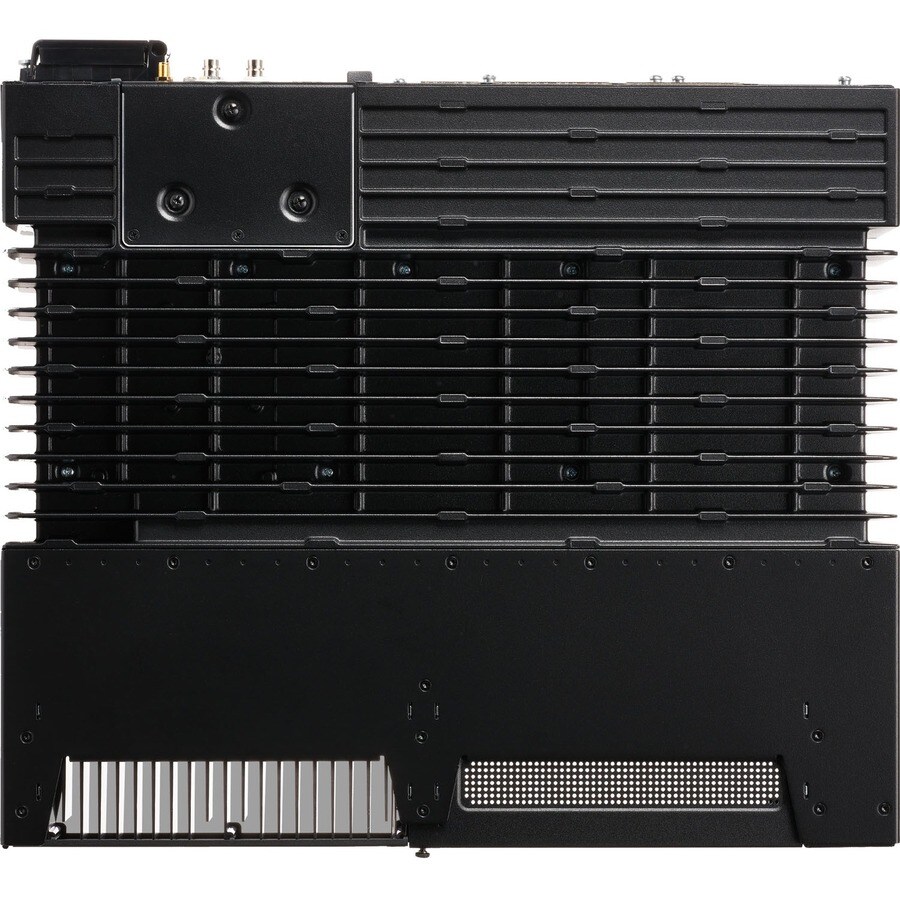

Cisco Catalyst IR8340 Rugged Router
5G, all-in-one, industrial-grade routing and switching platform
The Cisco Catalyst IR8300 Rugged Series Router is Cisco's first industrial-grade fully integrated routing and switching platform. Built on the Cisco Unified Access Data Plane (UADP) Application-Specific Integrated Circuit (ASIC) and Quantum Flow Processor (QFP), which powers the industry-leading Cisco Catalyst products, the IR8300 is designed to provide outstanding flexibility and adaptability to address the latest needs of the network evolution. The IR8300 supports U.S. public safety FirstNet services and new 5G services and is built for accelerated services, multilayer security, and edge intelligence. It can be deployed in the harsh, rugged environments found in the energy, transportation, and oil and gas industries.
The Catalyst IR8300 is designed to support the communications needs of the energy delivery infrastructure. This infrastructure includes substation applications supporting electrical transmission and distribution, renewable generation, oil and gas, water, distributed generation, co-generation, and trackside operations. Additional applications include transmission pipelines, distribution mains, and service lines for oil and gas and water. Router has been extensively tested to meet challenging substation compliance standards, including IEEE 1613 and IEC 61850-3.
The Catalyst IR8300 with Cisco IOS XE supports Cisco vManage, delivering Cisco's secure, cloud-scale SD-WAN solution. It is purpose-built for high performance and integrated SD-WAN services, with the flexibility to deliver security and networking services together from the cloud or on premises. Powered by the Cisco IOS XE fully programmable software architecture with API support, the platform can facilitate automation at scale. It comes with a Trustworthy Solutions 2.0 infrastructure that secures the platform against threats and vulnerabilities with integrity verification and remediation of threats.
- With Gigabit Ethernet, retrieve up to 10x faster than standard Ethernet connectivity and provides high-performance
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability provides control over the router's setup and configuration
- With 1000Base-T technology, get up to 1000 mbps data transfer rate over twisted pair cable
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Create a wired network with all the PCs connected with this router and share your Internet connection as well as files while checking emails
Technical Specifications
| Total Number of Expansion Slots | 10.0 |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Power Source | Power Supply |
| Power Consumption | 86 W |
| PoE (RJ-45) Port | Yes |
| USB Standard | USB 3.0 |
| Management Port | Yes |
| Total Number of Ports | 8 |
| Number of WAN Ports | 2 |
| Weight (Approximate) | 10.89 kg |
| Form Factor | Rack-mountable |
| Height | 88.9 mm |
| Width | 438.2 mm |
| Depth | 381 mm |
| Compatible Rack Unit | 2U |
| Product Type | Router |
| Manufacturer Part Number | IR8340-K9 |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Name | Catalyst IR8340 Rugged Router |
| Product Line | Catalyst |
| Product Series | IR8300 |
| Brand Name | Cisco |
| Network Technology | 1000Base-X |
| 1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Networking Standards | IEEE 802.1D |
| IEEE 802.1Q | |
| IEEE 802.1x | |
| IEEE 802.1s | |
| IEEE 802.3ae | |
| IEEE 802.1w |
