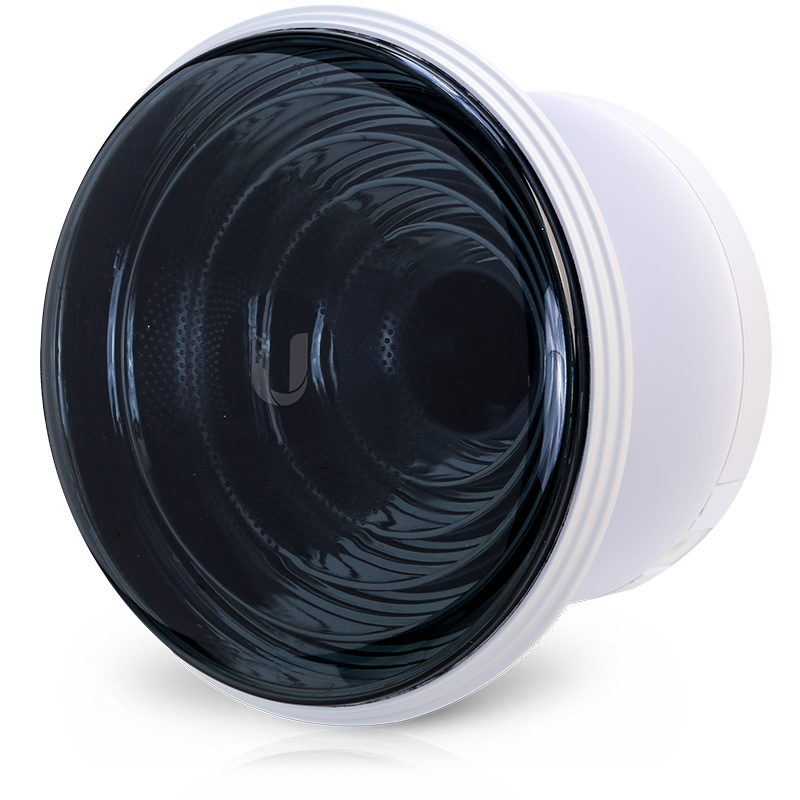

IS-5AC
Product Overview
| Mechanical | |
|---|---|
| Dimensions | Without horn: 131 x 131 x 65 mm (5.2 x 5.2 x 2.6") With horn: 174 x 174 x 150 mm (6.9 x 6.9 x 5.9") |
| Weight | Without horn: 408.2 g (0.9 lb) With horn: 725.7 g (1.6 lb) |
| Mounting | Pole mount kit (Included) |
| Wind loading | 36N at 200 km/h (8.09 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Max. power consumption | 8.5W |
| Supported voltage range | 20—27V DC |
| LED | (1) Power |
| Ambient operating temperature | -40 to 70 C (-40 to 158 F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 14 dBi |
| Beamwidth | 45° (Default horn) |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Without horn: 131 x 131 x 65 mm (5.2 x 5.2 x 2.6") With horn: 174 x 174 x 150 mm (6.9 x 6.9 x 5.9") |
| Weight | Without horn: 408.2 g (0.9 lb) With horn: 725.7 g (1.6 lb) |
| Mounting | Pole mount kit (Included) |
| Wind loading | 36N at 200 km/h (8.09 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Max. power consumption | 8.5W |
| Supported voltage range | 20—27V DC |
| LED | (1) Power |
| Ambient operating temperature | -40 to 70 C (-40 to 158 F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 14 dBi |
| Beamwidth | 45° (Default horn) |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
