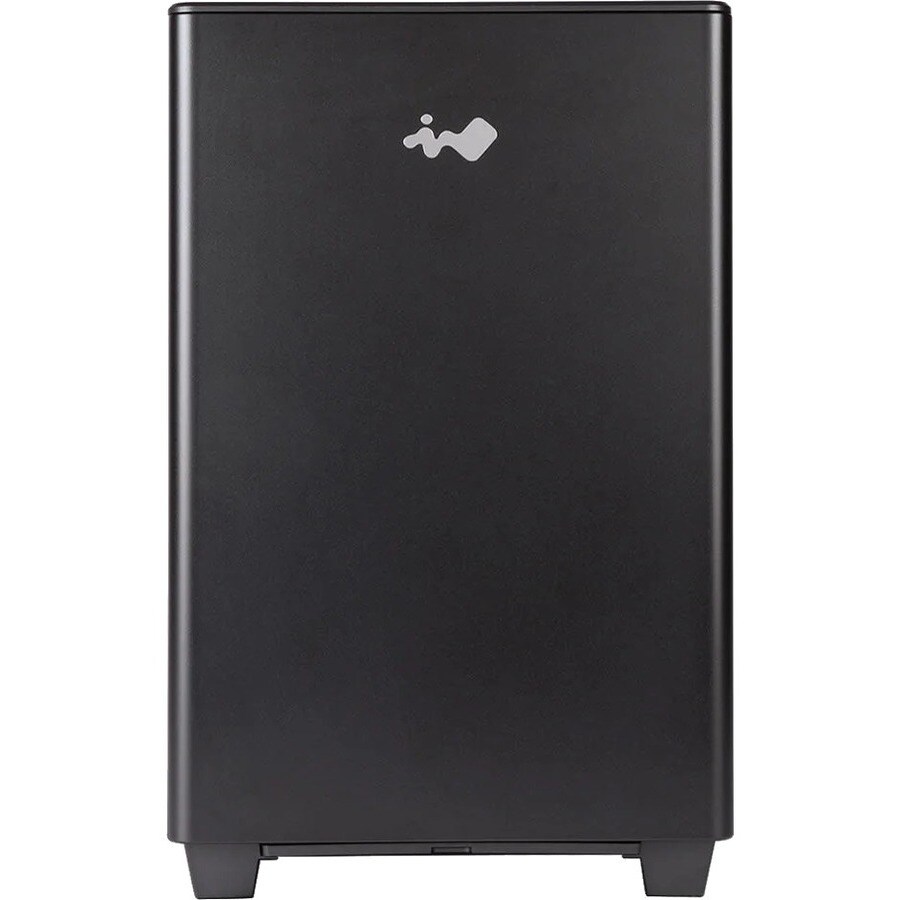

A3 MINI TOWER
A3 MINI TOWER
Product Overview
In Win IW-CS-A3BLK-1AM120S Computer Case - Micro ATX, Mini ITX Motherboard Supported - Micro Tower - Tempered Glass, Aluminium, Acrylonitrile Butadiene Styrene (ABS), SECC - Black Piano Finish - 3 x Bay(s) - 0 - 5 x Fan(s) Supported - 1 x Internal 2.5" Bay(s) - 2 x Internal 2.5"/3.5" Bay(s) - 4 x Slot(s) - 3 x USB(s) - 1 x Audio In - 1 x Audio Out - Fan Cooler
A3 is a highly expandable Micro-ATX Mini Tower in a strategically compact frame with a modern, minimalistic design. The included slim, silent fan Mercury AM120S complements this small case and keeps your system cool.
- Sleek, Minimalistic Design
- Supports High-end Graphics Card
- Screwless Tempered Glass and Filter Panels
- Slim Silent ARGB Fan Mercury AM120S Included
Technical Specifications
I/O Expansions
| Total Number of Expansion Slots | 4 |
Miscellaneous
| Environmentally Friendly | Yes |
Bays
| "Number of Internal 2.5"" Bays" | 1 |
| Number of Total Expansion Bays | 3 |
| "Number of Internal 2.5""/3.5"" Bays" | 2 |
Power Description
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 0 |
| Power Supply Installed | No |
Physical Characteristics
| Weight (Approximate) | 5.24 kg |
| Form Factor | Micro Tower |
| Cooler Type | Fan Cooler |
| Height | 347 mm |
| Width | 215 mm |
| Depth | 401 mm |
| Product Color | Black Piano Finish |
| Maximum CPU Cooler Height | 162 mm |
| Maximum PSU Length | 200 mm |
| Color Family | Black |
| Product Material | SECC |
| Acrylonitrile Butadiene Styrene (ABS) | |
| Aluminium | |
| Tempered Glass |
Technical Information
| Motherboard Supported | Mini ITX |
| Micro ATX | |
| Number of Fans Supported | 5 |
| Number of Fans Installed | 1 |
| Installed Fan Size | 120 mm |
Interfaces/Ports
| Front USB | Yes |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Total Number of USB Ports | 3 |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
General Information
| Product Type | Computer Case |
| Manufacturer Part Number | IW-CS-A3BLK-1AM120S |
| Manufacturer Website Address | http://www.in-win.com.tw/Corporate/zh/ |
| Manufacturer | In Win Development, Inc |
| Product Model | IW-CS-A3BLK-1AM120S |
| Product Name | IW-CS-A3BLK-1AM120S A3 Computer Case |
| Brand Name | In Win |
