A5 MINI TOWER
A5 MINI TOWER
Product Overview
In Win IW-CS-A5BLK-1AM120S Computer Case - Micro ATX, Mini ITX, EATX, ATX Motherboard Supported - Mid-tower - Tempered Glass, Aluminium, Acrylonitrile Butadiene Styrene (ABS), SECC, Polycarbonate - Black - 4 x Bay(s) - 0 - 5 x Fan(s) Supported - 2 x Internal 2.5" Bay(s) - 2 x Internal 2.5"/3.5" Bay(s) - 7 x Slot(s) - 3 x USB(s) - 1 x Audio In - 1 x Audio Out - Fan Cooler
Extended ATX
A5 is a highly expandable E-ATX Mid Tower in a strategically compact frame with a modern, minimalistic design. The included slim, silent fan Mercury AM120S complements this small case and keeps your system cool.
Sleek, Minimalistic Design

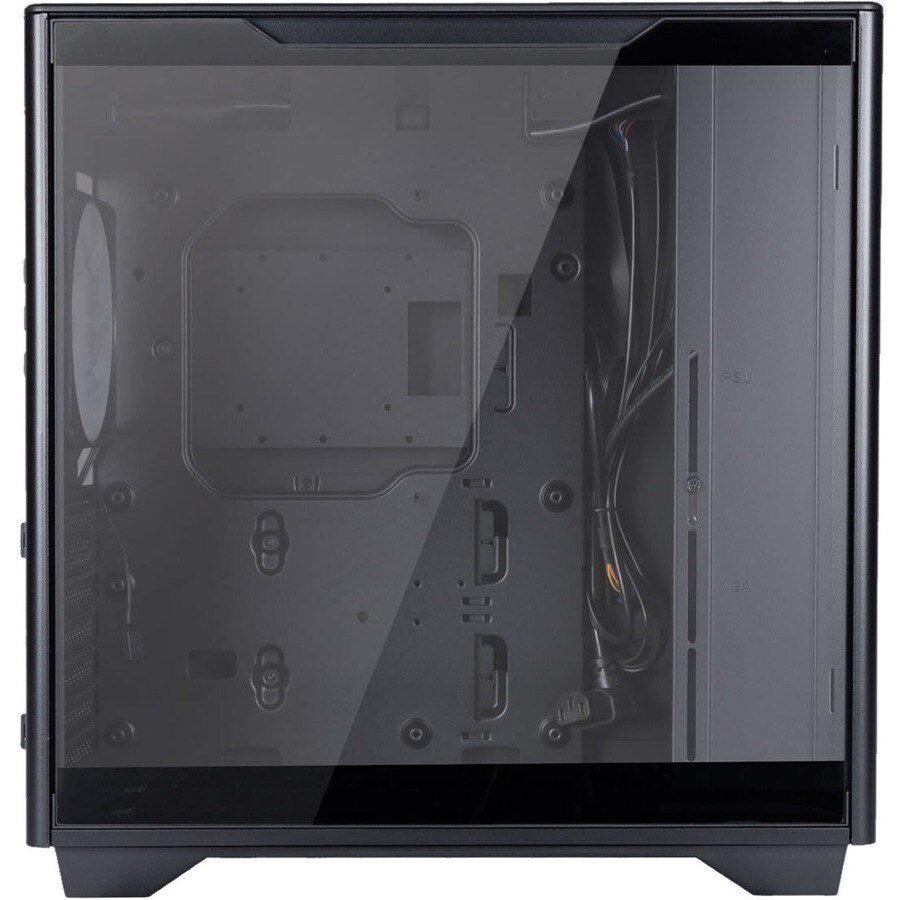

The A5 features a pristinely clean front panel embellished with a silver InWin logo and a brushed golden aluminium sheet. Showcase your build through the tinted tempered glass window in a modern vibe.
Highly Expandable in a Compact Frame
The A5 supports E-ATX M/B, high-end graphics cards, multiple 2.5" / 3.5" storage devices, and a high-efficiency power supply in a small footprint.
Powerful Cooling
The A5 allows air and water cooling solutions to keep your system fresh. The top and bottom feature ventilated filter panels to combat dust and heat.
Go Screwless!
The tempered glass, filter, and side panels are all screwless for easy access and cleaning.
Outstanding I/O
The A5 features one USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen 1 Type-A ports for fast charging speeds and outstanding data transfer rates and a headset audio jack utilizing the international CTIA standard.
Slim Silent Fan Mercury AM120S
Pre-installed silent ARGB fan AM120S provides powerful cooling performance within a slim 20 mm frame.
- Sleek, Minimalistic Design
- Supports E-ATX M/B in a Compact Frame
- Screwless Tempered Glass and Filter Panels
- Slim Silent ARGB Fan Mercury AM120S Included
Technical Specifications
| Total Number of Expansion Slots | 7 |
| Package Contents |
|
| Environmentally Friendly | Yes |
| "Number of Internal 2.5"" Bays" | 2 |
| Number of Total Expansion Bays | 4 |
| "Number of Internal 2.5""/3.5"" Bays" | 2 |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 0 |
| Power Supply Installed | No |
| Weight (Approximate) | 5.86 kg |
| Form Factor | Mid-tower |
| Cooler Type | Fan Cooler |
| Height | 407 mm |
| Width | 215 mm |
| Depth | 399 mm |
| Product Color | Black |
| Maximum CPU Cooler Height | 162 mm |
| Maximum PSU Length | 200 mm |
| Color Family | Black |
| Product Material | Aluminium |
| Tempered Glass | |
| SECC | |
| Polycarbonate | |
| Acrylonitrile Butadiene Styrene (ABS) |
| Front USB | Yes |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Total Number of USB Ports | 3 |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Motherboard Supported | Micro ATX |
| Mini ITX | |
| ATX | |
| EATX | |
| Number of Fans Supported | 5 |
| Number of Fans Installed | 1 |
| Installed Fan Size | 120 mm |
| Product Type | Computer Case |
| Manufacturer Part Number | IW-CS-A5BLK-1AM120S |
| Manufacturer Website Address | http://www.in-win.com.tw/Corporate/zh/ |
| Packaged Quantity | 1 |
| Manufacturer | In Win Development, Inc |
| Product Model | IW-CS-A5BLK-1AM120S |
| Product Name | IW-CS-A5BLK-1AM120S A5 Computer Case |
| Brand Name | In Win |
