F5 FULLTOWER DETACHABLE 3AN140 FANS INC
F5 FULLTOWER DETACHABLE 3AN140 FANS INC
Product Overview

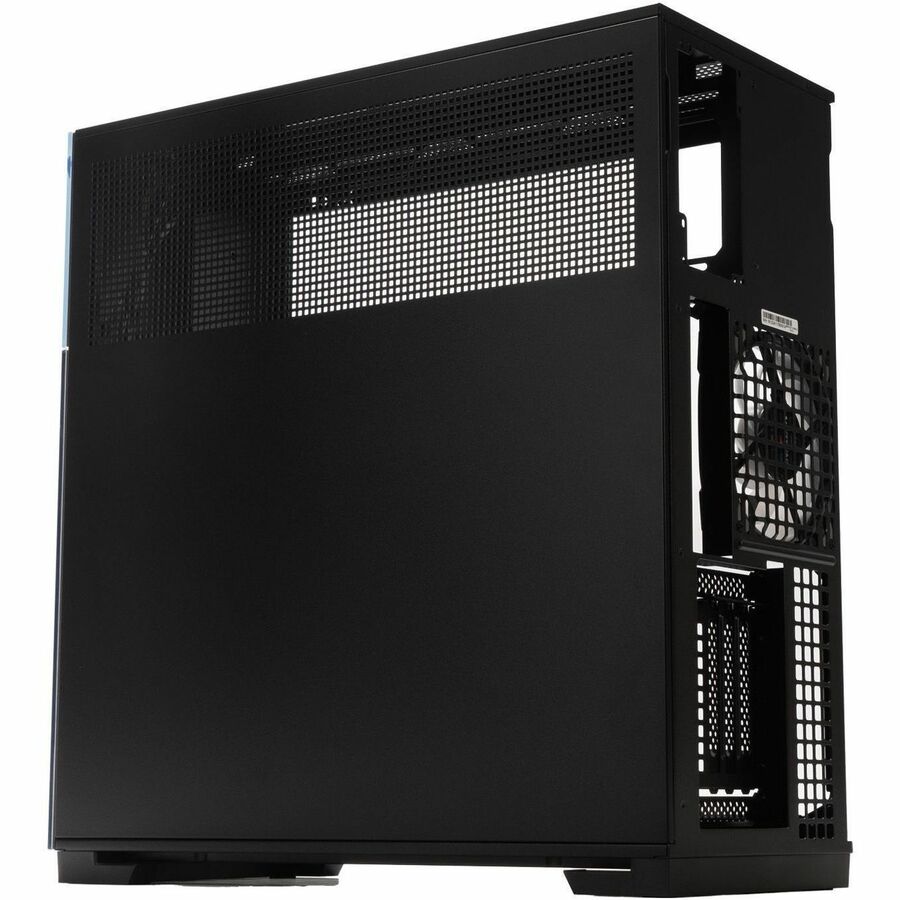

In Win IW-CS-F5BLK-3AN140 Computer Case - EATX, ATX Motherboard Supported - Full-tower - SECC, Tempered Glass, Wood - Black - 9 x Fan(s) Supported - 2 x Internal 2.5" Bay(s) - 2 x Internal 2.5"/3.5" Bay(s) - 11 x Slot(s) - 3 x USB(s) - 2 x USB-A 3.2 Gen 1, 1 x USB 3.2 Gen 2x2 Type C - 1 x Audio In - 1 x Audio Out - Fan Cooler
Shift and Shuffle Your Front Panel
The F5's front panel features detachable panels, providing the freedom to swap for various PC appearances. Make it your personal PC now!
Select Your Vibe
Elegant Maple Wood and Modern Tinted Glass offer different materials on a PC that blends into your home or office setting.
- Vertical
- Horizontal
Versatile GPU Support
InWin has innovated a magnetic GPU holder and a modular PCI-E slot for dual GPU orientation to ensure GPU stability and displays the card horizontally or vertically.
The PCI-E riser cable is not included in package.
Highly Expandable
The F5 supports Back-Connector motherboards, compatible with GPUs up to 435 mm, and possesses multiple 2.5"/3.5" storage drive trays.
Supports ASUS BTF and MSI Back-Connect ATX motherboards.
Versatile Cooling Options
The F5 provides versatile cooling configurations, supporting up to 9 fans and accommodating radiator sizes of 240, 280, 360, and 420 mm. F5 comes with three complementary Neptune AN140/AN140P fans.
* AN140 x 3 for Black version
* AN140P x 3 for White version
- Full-tower structure grants ample space for more hardware components
- Supports EATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
Technical Specifications
| Total Number of Expansion Slots | 11 |
| Environmentally Friendly | Yes |
| "Number of Internal 2.5"" Bays" | 2 |
| "Number of Internal 2.5""/3.5"" Bays" | 2 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Total Number of USB Ports | 3 |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| USB Port Details | 2 x USB-A 3.2 Gen 1 |
| 1 x USB 3.2 Gen 2x2 Type C |
| Weight (Approximate) | 10.73 kg |
| Form Factor | Full-tower |
| Cooler Type | Fan Cooler |
| Height | 543 mm |
| Width | 235 mm |
| Depth | 510 mm |
| Product Color | Black |
| Maximum PSU Length | 230 mm |
| Color Family | Black |
| Product Material | Tempered Glass |
| Wood | |
| SECC | |
| Maximum GPU Length | 435 mm |
| Product Type | Computer Case |
| Manufacturer Part Number | IWCSF5BLK3AN140 |
| Manufacturer Website Address | http://www.in-win.com.tw/Corporate/zh/ |
| Manufacturer | In Win Development, Inc |
| Product Model | IW-CS-F5BLK-3AN140 |
| Product Name | Computer Case |
| Product Series | F5 |
| Brand Name | In Win |
| Motherboard Supported | ATX |
| EATX | |
| Micro ATX | |
| Mini ITX | |
| Number of Fans Supported | 9 |
| Number of Fans Installed | 3 |
| Fan Size Supported | 140 mm |
| Installed Fan Size | 140 mm |
