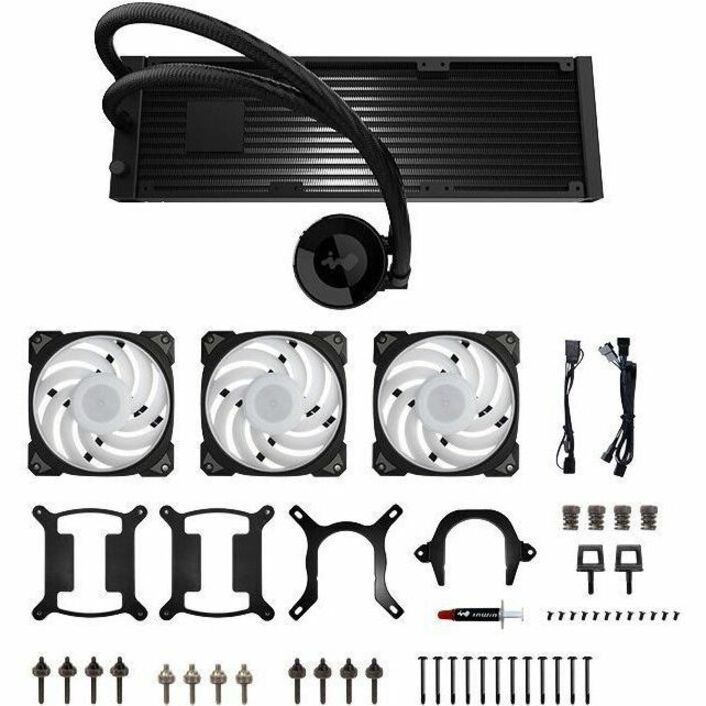

MR36 AIO LIQUID CPU COOLER 450MM TUBE
MR36 AIO LIQUID CPU COOLER 450MM TUBE
Product Overview
In Win MR36 All-In-One Liquid CPU Coolder - Rotatable CPU Blockhead - Neptune AN120 Fans - 450 mm Tube Length - 3 Year Warranty - 120 mm Maximum Fan Diameter - 3 x Fan(s) - 1701.8 L/min Maximum Airflow - 2200 rpm - Liquid Cooler Cooler - Long Life Sleeve Bearing - 4-Pin (12V, PWM), 3-Pin (5V, ARGB) - Compatible Intel Socket: LGA-1700, LGA-1200, H4 LGA-1151, LGA-115X - Compatible AMD Socket: AM5, AM4 - ARGB LED
Rotatable CPU Blockhead
The MR Series features an aluminium rotatable CPU blockhead that's accented with an alluring ARGB ring. The blockhead can rotate a full 360 degrees to match your build.
Silent Static Pressure Neptune AN120 Fans
The MR Series is armed with the Neptune AN120 fans. These fans offer excellent cooling performance without sacrificing your peaceful area.
FIN-Tastic Heat Dissipation
The high-density microchannel fins and a large radiator heat dissipation area enhances heat conducting efficiency.
Radiator Mounted Pump Design
The pump is mounted into the radiator to suppress noise pollution and reduce vibrations. The high-speed pump quickly returns the liquid back into the cooling loop.
Supports Latest CPU Sockets
The modular, tool-free mounting brackets are designed for simple installation on all the latest CPU sockets, and includes LGA 1700 and AM5.
- Inexpensive long life sleeve bearing - Offers the best performance when installed vertically
- 4-Pin (12V, PWM) connector enables quick and stable connection with cpus
- Colourful argb LEDs add an ultra-modern style
Technical Specifications
| Application/Usage | Processor |
| CPU | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Cooler Type | Liquid Cooler |
| Compatible Intel Socket | H4 LGA-1151 |
| LGA-1700 | |
| LGA-1200 | |
| LGA-115X | |
| Compatible AMD Socket | AM4 |
| AM5 |
| Fan Bearing Type | Long Life Sleeve Bearing |
| Number of Fans | 3 |
| Maximum Air Pressure | 2.27mmH2O |
| LED Color | ARGB |
| Minimum Airflow | 675.9 L/min |
| Maximum Airflow | 1701.8 L/min |
| Fan Speed (Min) | 900 rpm |
| Fan Speed (Max) | 2200 rpm |
| Noise Levels (A-Weighted) | 20.5 dB(A) |
| Product Type | Cooling Fan/Radiator/Water Block/Pump |
| Manufacturer Part Number | IWLCMR36 |
| Manufacturer Website Address | http://www.in-win.com.tw/Corporate/zh/ |
| Packaged Quantity | 3 |
| Manufacturer | In Win Development, Inc |
| Product Model | IW-LC-MR36 |
| Product Name | IW-LC-MR36 Cooling Fan/Radiator/Water Block/Pump |
| Product Series | MR |
| Brand Name | In Win |
| Material Details |
|
| Weight (Approximate) | 1.70 kg |
| Radiator Height | 27 mm |
| Radiator Width | 120 mm |
| Fan Height | 25 mm |
| Fan Width | 120 mm |
| Water Block Height | 39 mm |
| Water Block Width | 68 mm |
| Radiator Material | Aluminium |
| Maximum Fan Diameter | 120 mm |
