P85FII 850W GOLD PCI-E GEN 5.0 READY RET
P85FII 850W GOLD PCI-E GEN 5.0 READY RET
Product Overview

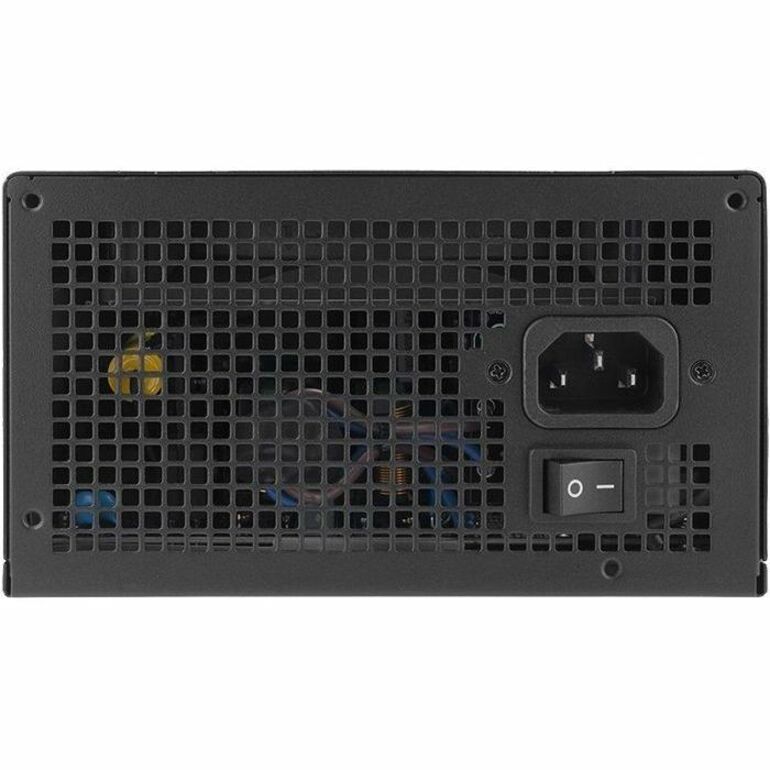

In Win P85FII 850W GOLD PCI-E Gen 5.0 Ready Power Supply - 5 Year Warranty - Retail Box - Internal - 12 V DC, 5 V DC, 3.3 V DC Output - 1 +12V Rails - 1 Fan(s) - 90% Efficiency
New PFII Series born for ATX3.0
The PFII Series ATX 3.0 fully meets the newest generation of Intel's PSDG (power supply design guide). This avoids potential system instability or power failure, provides better output stability, and allow users to game or work with peace of mind.
- 100us Power Excursion
- 100us GPU Power Excursion
PCI-E Gen 5.0 Ready
Includes PCI-E 5.0, 16-pin connector (12VHPWR) with high-quality 16AWG cable. Exclusive for next-generation high-performance graphics cards. Fully unleash your GPU's powerful performance!
Meet various GPU
The PFII Series contains flat cables, which not only facilitates cable management, but also provides sufficient PCIe cables to meet various GPU connectors
80 PLUS® Gold Certified for High Efficiency
The PFII Series ATX 3.0 is an 80 PLUS® Gold certified power supply that delivers up to 90% conversion efficiency which can generate less heat, effectively lowering energy consumption and noise.
Multi-Protection Safeguards
The PFII Series ATX 3.0 comes with plenty of safeguards against over-currents, over-and-under voltages, short circuits, over-heating and over-power. These precautions are to ensure quality and safe power usage.
Technical Specifications
| Efficiency | 90% |
| Specification Compliance | ATX12V v3.0 |
| Output Power | 850 W |
| Output Voltage | -12 V DC |
| 12 V DC | |
| 3.3 V DC | |
| 5 V DC | |
| 5 V SB | |
| Output Current | 70.80 A |
| 300 mA | |
| 3 A | |
| 20 A | |
| Number of +12V Rails | 1 |
| Output Voltage Detail | 12 V DC @ 70.8 A |
| -12 V DC @ 0.3 A | |
| 5 V SB @ 3 A | |
| 5 V DC @ 20 A | |
| 3.3 V DC @ 20 A |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 2.30 kg |
| Height | 86 mm |
| Width | 150 mm |
| Product Type | Power Supply |
| Manufacturer Part Number | IWPSPFII850W |
| Manufacturer Website Address | http://www.in-win.com.tw/Corporate/zh/ |
| Manufacturer | In Win Development, Inc |
| Product Model | P85FII |
| Product Name | PFII P85FII 850W Power Supply |
| Product Series | PFII |
| Brand Name | In Win |
