VE SERIES 750W 80+ GOLD FULLY MODULAR
VE SERIES 750W 80+ GOLD FULLY MODULAR
Product Overview

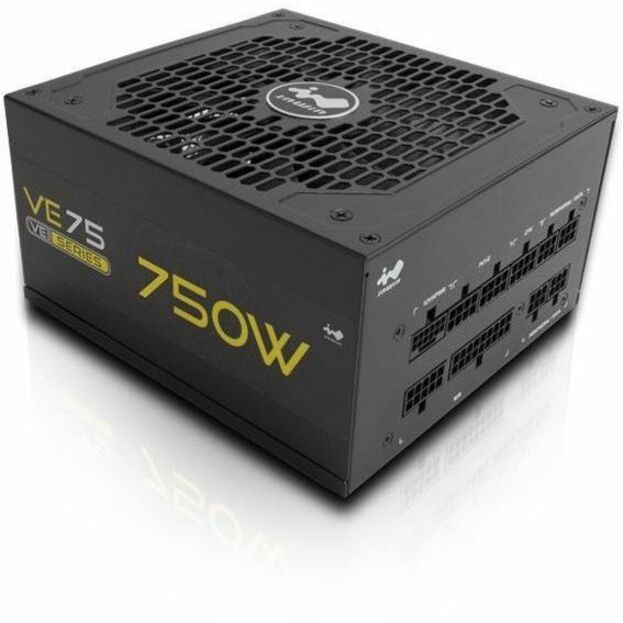

In Win VE Series 750W 80 Plus GOLD Fully Modular ATX 3.0 Power Supply - 5 Year Warranty - Internal - 12 V DC, 5 V DC, 3.3 V DC Output - 1 +12V Rails - 1 Fan(s) - 90% Efficiency
VE Series 750W 80 PLUS Gold Fully Modular ATX 3.0 Power Supply - 5 Year Warranty- Fully Meets the Newest Generation (ATX3.0) of Intel's PSDG
- Includes PCI-E 5.0, 16 Pin Connector with High Quality 16 AWG Cable
- Fully Modular with High Quality Flat Cables
- Smart Temperature-Controlled FDB Fan with zero RPM mode
- Multi-Protection Safeguards (OCP, OVP, UVP, SCP, OTP, OPP)
- 5-Year Warranty
Technical Specifications
Miscellaneous
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Power Description
| Output Power | 750 W |
| Output Voltage | 5 V DC |
| 12 V DC | |
| -12 V DC | |
| 3.3 V DC | |
| Output Current | 62.50 A |
| 20 A | |
| 3 A | |
| 300 mA | |
| Number of +12V Rails | 1 |
| Output Voltage Detail | 5 V DC @ 3 A |
| 3.3 V DC @ 20 A | |
| 12 V DC @ 62.5 A | |
| -12 V DC @ 0.3 A | |
| 5 V DC @ 20 A |
Physical Characteristics
| Weight (Approximate) | 1.60 kg |
| Height | 86 mm |
| Width | 150 mm |
Technical Information
| Efficiency | 90% |
| Modular | Yes |
| Specification Compliance | ATX12V v3.0 |
General Information
| Product Type | Power Supply |
| Manufacturer Part Number | IWPSVE750W |
| Manufacturer Website Address | http://www.in-win.com.tw/Corporate/zh/ |
| Manufacturer | In Win Development, Inc |
| Product Model | IW-PS-VE750W |
| Product Name | VE IW-PS-VE750W 750W Power Supply |
| Product Series | VE |
| Brand Name | In Win |
