FF 5940 48XGT 6QSFP28 S
FF 5940 48XGT 6QSFP28 S
Product Overview

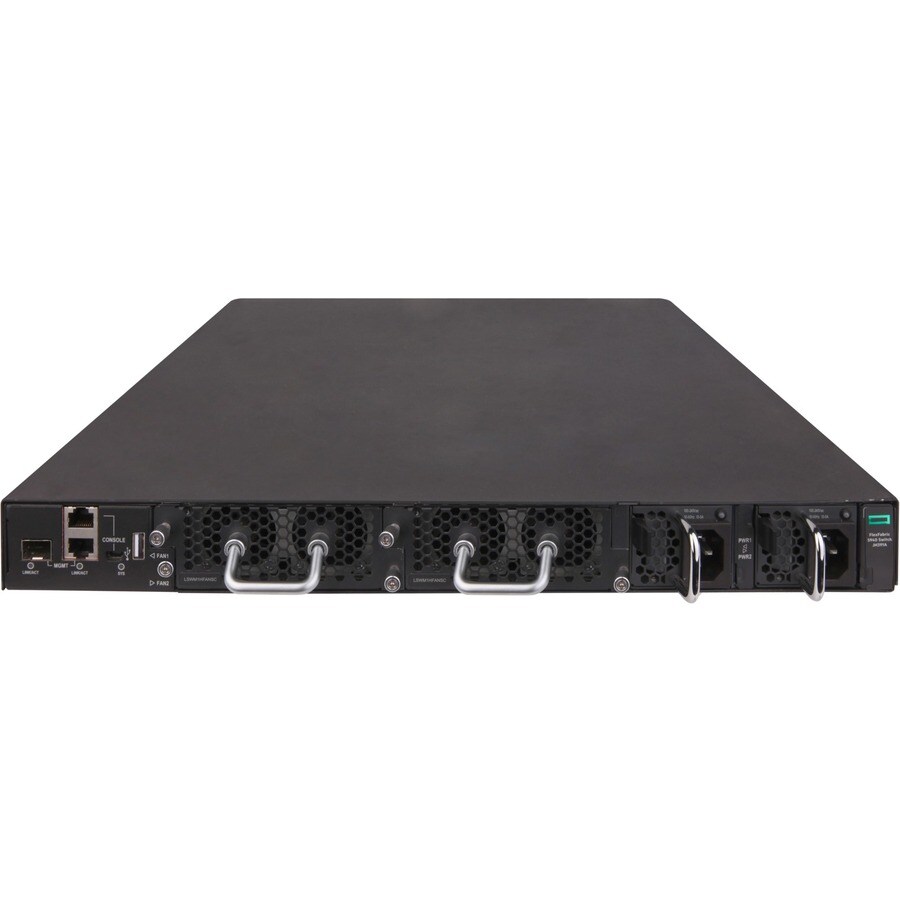

HPE FlexFabric 5940 5940 48XGT 48 Ports Manageable Layer 3 Switch - 10 Gigabit Ethernet, 100 Gigabit Ethernet - 10GBase-T, 100GBase-X - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - Rack-mountable
The HPE FlexFabric 5940 Switch Series is a family of high-performance and low-latency 10GbE and 40GbE top-of-rack (ToR) data center switches. This also includes 100G uplink technology which is part of the HPE FlexFabric data center solution, and is a cornerstone of the FlexNetwork architecture.The FlexFabric 5940 Switch is suited for deployment at the aggregation or server access layer of large enterprise data centers, or at the core layer of medium-sized enterprises. It is optimized for high-performance server connectivity, convergence of Ethernet and storage traffic, and virtual environments.
Features
High-Density, Advanced, Datacenter Switches
The HPE FlexFabric 5940 Switch Series enables customers to scale their server-edge 10/40/100 GbE ToR deployments with high-density 48 x 10 GbE with 6 x 40GbE ports, 48 x 10 GbE with 6 x 100GbE ports, and 32 x 40 GbE ports, delivered in a 1RU design.
High-Performance Datacenter SwitchingThe HPE FlexFabric 5940 Switch Series delivers up to 2.56 Tbps switching capacity for the most demanding data center applications.
It supports up to 1904 MPPS throughput for data-intensive environments.
Low latency, under 1µs for 40GbE, gives your business agility.
VXLAN support for network virtualization and overlay solutions.
OVSDB for dynamic VXLAN tunnel management.
Business Agility and Resilience with Comware 7The HPE FlexFabric 5940 Switch Series delivers Intelligent Resilient Fabric (IRF) <50 msec convergence time enabling faster application response time.
The In Service Software Update (ISSU) enables high availability with modular updates accomplished without a reboot or power cycle, in the background.
Simplicity and Lower TCOHPE FlexFabric 5940 Switch Series simplifies switch management by up to 88% with 9-unit Intelligent Resilient Fabric (IRF).
No extra hidden cost with simple one license per switch for all OS features.
All switch ports are active and ready to use without need for activation licenses.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
- Quickly and easily set up a wired network with 48 networking ports
Technical Specifications
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Layer Supported | 3 |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | QSFP |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 6.0 |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | JH391A |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Packaged Quantity | 1 |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 5940 48XGT |
| Product Name | FlexFabric 5940 48XGT 6QSFP28 Switch |
| Product Line | FlexFabric |
| Product Series | 5940 |
| Brand Name | HPE |
| Weight (Approximate) | 13 kg |
| Form Factor | Rack-mountable |
| Height | 43.7 mm |
| Width | 439.9 mm |
| Depth | 659.9 mm |
| Modular | Yes |
| Uplink Port | No |
| Stack Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x 10 Gigabit Ethernet Network |
| 6 x 100 Gigabit Ethernet Expansion Slot |
| Network Technology | 10GBase-T |
| 100GBase-X | |
| Ethernet Technology | 100 Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
