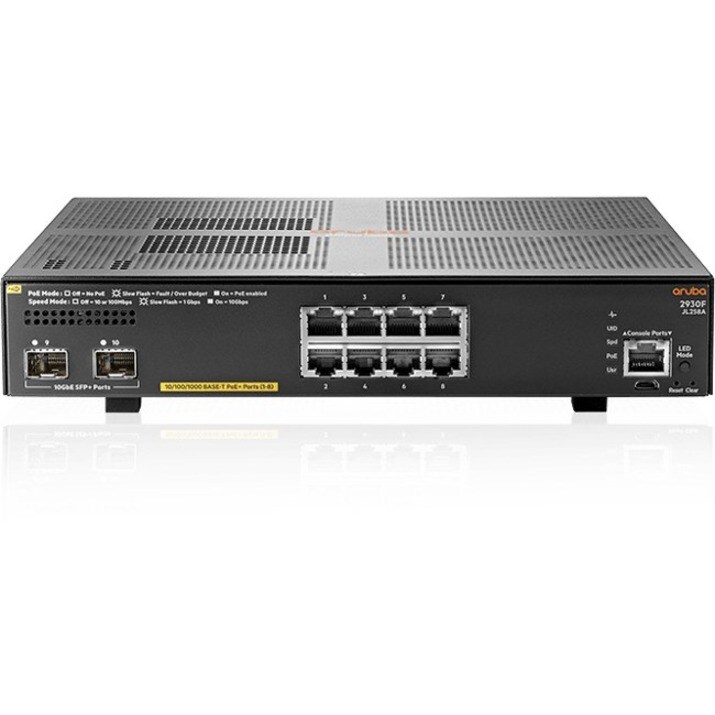

ARUBA 2930F 8G POE+ 2SFP+ SWCH

ARUBA 2930F 8G POE+ 2SFP+ SWCH

ARUBA 2930F 8G POE+ 2SFP+ SWCH

Product Overview

ARUBA 2930F 8G POE+ 2SFP+ SWCH

The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices.

A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. It supports 10GbE uplinks, PoE+, robust QoS, and RIP routing.

Features
High-Performance Access Layer Switches

The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.

Delivers a consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.

Convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.

Robust basic Layer 3 feature set includes static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.

Designed with a powerful ProVision ASIC and support for OpenFlow, the Aruba 2930F is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Software products.

Performance and Power at the Edge

The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.

Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.

Supports up to 370 W of internal PoE+ power for wireless access points, cameras and phones.

Security and Quality of Service You Can Rely on

The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.

Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.

Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

Simplify with Integrated Wired/Wireless Management

The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.

Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.

RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.

  • Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • Supports layer 3 switching for enhanced performance and usability
  • Managed switch provides a reliable foundation for your network
  • Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Cascade to other network devices through the uplink port to expand your local area network
  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
  • Quickly and easily set up a wired network with 8 networking ports

Technical Specifications

Management & Protocols
ManageableYes
Miscellaneous
Environmentally FriendlyYes
Network & Communication
Layer Supported3
Power Description
Power SourcePower Supply
I/O Expansions
Expansion Slot TypeSFP+
Number of SFP+ Slots2
Total Number of Expansion Slots2.0
Interfaces/Ports
ModularYes
Uplink PortYes
Stack PortNo
Total Number of Network Ports8
Port/Expansion Slot Details8 x Gigabit Ethernet PoE+
2 x 10 Gigabit Ethernet Uplink
Media & Performance
Network Technology10/100/1000Base-T
10GBase-X
Ethernet Technology10 Gigabit Ethernet
Gigabit Ethernet
Media Type SupportedTwisted Pair
Optical Fiber
General Information
Product TypeEthernet Switch
Manufacturer Part NumberJL258A#ABG
Manufacturer Website Addresshttps://www.hpe.com/au/
Packaged Quantity1
ManufacturerHewlett Packard Enterprise
Product Name2930F 8G PoE+ 2SFP+ Switch
Brand NameHPE
Physical Characteristics
Weight (Approximate)2 kg
Form FactorDesktop
Rack-mountable
Height43.9 mm
Width254 mm
Depth254 mm
Compatible Rack Unit1U
