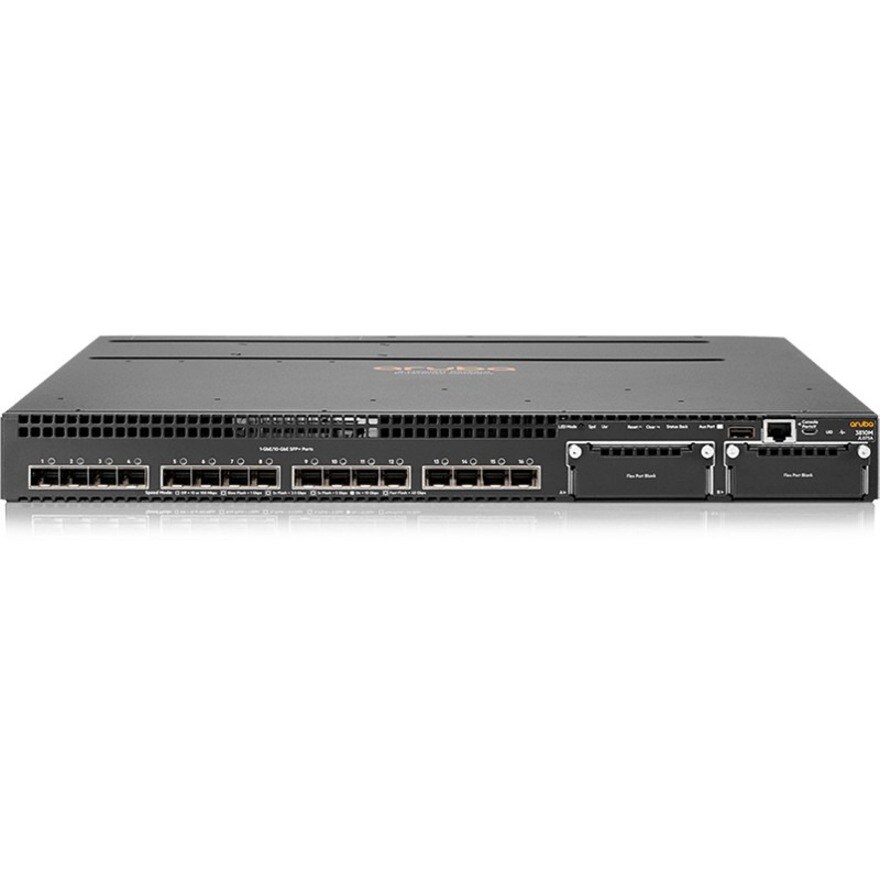

ARUBA 3810M 24SFP+250W SWCH
ARUBA 3810M 24SFP+250W SWCH
Product Overview
ARUBA 3810M 24SFP+250W SWCH
Aruba 3810M Switch Series
The Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high speed access points and IoT devices, this advanced Layer 3 network switch delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity.
A powerful Aruba ProVision ASIC delivers performance, robust feature support, and value with flexible programmability for the latest applications. The 3810 delivers resiliency and scalability via innovative backplane stacking technology and redundant, hotswappable power supplies all in a convenient 1U form factor. It supports an advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, Dynamic Segmentation, robust QoS, and policy-based routing are included with no software licensing.
The 3810M is easy to deploy, use and manage using Aruba AirWave or Aruba Central. Aruba ClearPass offers centralized security and external captive portal support. The switches offer a limited lifetime warranty.
The Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high speed access points and IoT devices, this advanced Layer 3 network switch delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity.- Advanced Layer 3 switch series with backplane stacking, dynamic segmentation, low latency and resiliency
- Advanced security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central
- Modular 10GbE and 40GbE uplinks for wireless aggregation
- HPE Smart Rate for high-speed multi-gigabit capacity and PoE+ power
- Software-defined ready with REST APIs and OpenFlow support
Technical Specifications
| Manageable | Yes |
| Package Contents |
|
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 24 |
| Total Number of Expansion Slots | 24.0 |
| Network Technology | 10GBase-X |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 1 x Stack |
| 24 x 10 Gigabit Ethernet Expansion Slot |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1s |
| IEEE 802.1v | |
| IEEE 802.3az | |
| IEEE 802.3ad | |
| IEEE 802.1w | |
| IEEE 802.3x | |
| IEEE 802.3bz | |
| IEEE 802.1Q | |
| IEEE 802.1p | |
| IEEE 802.1D | |
| IEEE 802.1AX | |
| IEEE 802.1ad |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 103 W |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | JL430A#ABG |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | 3810M 24SFP+ 250W Switch |
| Product Series | 3810 |
| Brand Name | HPE |
| Weight (Approximate) | 6.02 kg |
| Form Factor | Cabinet Mount |
| Rack-mountable | |
| Surface Mount | |
| Height | 43.9 mm |
| Width | 442.5 mm |
| Depth | 431.3 mm |
| Compatible Rack Unit | 1U |
