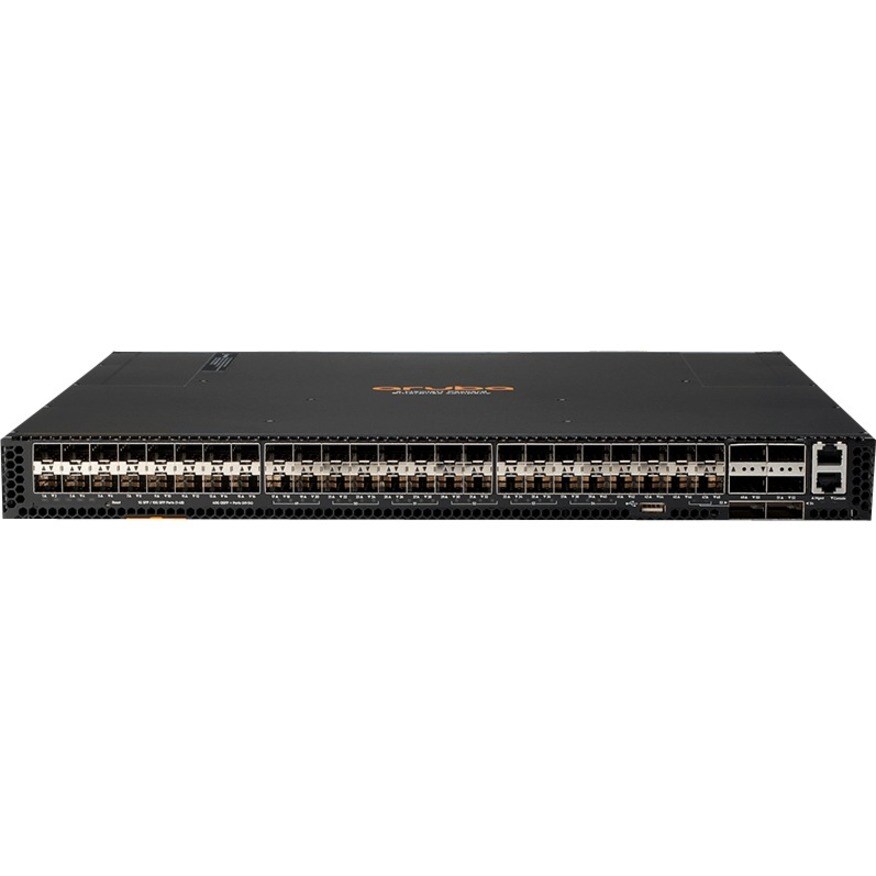

Product Overview
ARUBA 8320 48 10/6 40 X472 5 2 BDL
The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The Aruba 8320 Switch Series, a campus core and aggregation switch, is a game-changing solution that offers an innovative approach to dealing with the demands of the mobile, cloud and IoT era. The Aruba 8320 is based on ArubaOS-CX, a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. The key innovations in ArubaOS-CX are its micro-services style modular architecture, REST APIs, Python scripting capabilities and the Aruba Network Analytics Engine. The Aruba 8320 Switch Series provides line rate 10GbE/40GbE in a compact 1U form factor and together with the modular Aruba 8400 Switch, rounds out the Aruba Mobile First switching portfolio with an enterprise core and aggregation solution.
What's new
- High-performance Aruba campus core and aggregation switch with 2.5 Tbps switching capacity.
- ArubaOS-CX automates using REST APIs and Python scripts.
- Monitor and troubleshoot with Aruba Network Analytics Engine.
- Compact 1U switch with 48 ports of 10GbE and 6 ports of 40GbE.
- Advanced Layer 2/3 feature set includes BGP, OSPF, VRF and IPv6.
Features
Game-changing Business Agility
The Aruba 8320 Switch Series is a campus core and aggregation switch solution with an innovative and powerful approach to dealing with the new applications, security and scalability demands of the mobile, cloud and IoT era.
Fully programmable with ArubaOS-CX, it brings automation and visibility and helps troubleshoot via simple scripting.
Aruba Network Analytics Engine provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple python agents and REST APIs.
Offers high-speed fully distributed architecture with 2.5 Tbps switching capacity for always on networking.
Provides robust security and QoS with advanced Layer 2 and Layer 3 features including support for BGP, OSPF, and VRF.
Modern Software System Simplifies and Automates
The Aruba 8320 Switch Series is based on the new ArubaOS-CX, a modern software system for the core that automates and simplifies many critical and complex network tasks.
The built-in time series database enables customers and developers to develop software modules for historical troubleshooting, as well as analysis of historical trends, to predict and avoid future problems due to scale, security and performance bottlenecks.
It includes stability, independent monitoring and restart of individual software modules, and enhanced software process serviceability functions. And it allows individual software modules to be upgraded for higher availability.
High Performance
The Aruba 8320 Switch Series includes a high-speed, fully distributed architecture and provides up to 2.5 Tbps switching capacity to meet the demands and bandwidth-intensive applications today and in the future.
The compact 1U switch delivers line rate 10GbE/40GbE connectivity and very low latency for support of full Internet routes.
You get resiliency and high availability with redundant power supplies and fans.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
Technical Specifications
| Modular | Yes |
| Port/Expansion Slot Details | 6 x 40 Gigabit Ethernet Expansion Slot |
| 48 x 10 Gigabit Ethernet Expansion Slot |
| Power Source | Power Supply |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3z |
| IEEE 802.1t | |
| IEEE 802.1ab | |
| IEEE 802.1ae | |
| IEEE 802.1ak | |
| IEEE 802.1AX | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.3x | |
| IEEE 802.3ba | |
| IEEE 802.3ae | |
| IEEE 802.3ad | |
| IEEE 802.1w |
| Expansion Slot Type | QSFP+ |
| SFP+ | |
| Number of SFP+ Slots | 48 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 54.0 |
| Network Technology | 40GBase-X |
| 10GBase-X | |
| Ethernet Technology | 40 Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Weight (Approximate) | 9.40 kg |
| Form Factor | Rack-mountable |
| Height | 43.2 mm |
| Width | 442 mm |
| Depth | 505.5 mm |
| Compatible Rack Unit | 1U |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL479A#ABG |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | 8320 Ethernet Switch |
| Product Series | 8320 |
| Brand Name | HPE |
