ARUBA 8320 48 T/6 40 X472 5 2 BDL
ARUBA 8320 48 T/6 40 X472 5 2 BDL
Product Overview
ARUBA 8320 48 T/6 40 X472 5 2 BDL

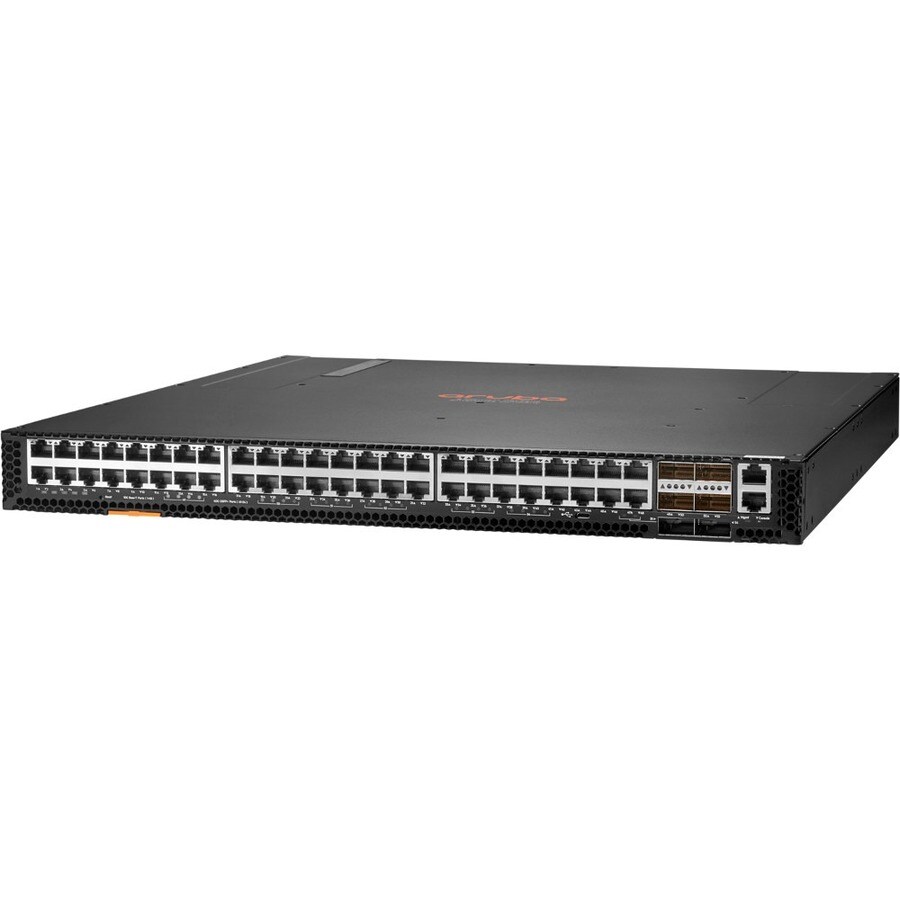

Aruba 8320 Switch Series
The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The Aruba CX 8320 campus core and aggregation switch is a game-changing solution offering a flexible and innovative approach to dealing with the demands of the mobile, cloud and IoT era. The Aruba CX 8320 also serves as a top of rack (ToR) switch for data centers needing 10GbE connectivity to servers and 40GbE to the spine.
The CX 8320 provides industry-leading line rate 1/10GbE (SFP/SFP+ and 10GBASE-T) and 40GbE connectivity in a compact 1U form factor. Together with the modular Aruba CX 8400 chassis and the Aruba CX 8325 series,, the CX 8320 rounds out Aruba's switching portfolio with an enterprise core and aggregation solution that ensures higher performance and higher uptime.
- High performance 2.5Tbps with 1,905 mpps
- High availability with Aruba Virtual Switching Extension (VSX), and redundant, hot-swappable power supplies and fans
- AOS-CX enables automation and programmability using built-in REST APIs and Python scripts
- Intelligent monitoring, visibility, and remediation with Aruba Network Analytics Engine
- One touch deployment with the Aruba CX Mobile App
- Aruba NetEdit support for automated configuration and verification
- Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6
- Compact 1U switches with 1/10GbE (SFP+ and 10GBASE-T) and 40GbE connectivity
Technical Specifications
| Manageable | Yes |
| Expansion Slot Type | QSFP+ |
| Total Number of Expansion Slots | 6.0 |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 6 x 40 Gigabit Ethernet Expansion Slot |
| 48 x 10 Gigabit Ethernet Network |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3ad |
| IEEE 802.3ae | |
| IEEE 802.3ba | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1w | |
| IEEE 802.1t | |
| IEEE 802.1s | |
| IEEE 802.1AX | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1D | |
| IEEE 802.1ab | |
| IEEE 802.1ak |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
| Network Technology | 10GBase-T |
| 40GBase-X | |
| Ethernet Technology | 40 Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | JL581A#ABG |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | 8320 Layer 3 Switch |
| Product Series | 8320 |
| Brand Name | HPE |
| Weight (Approximate) | 9.50 kg |
| Form Factor | Cabinet Mount |
| Rack-mountable | |
| Surface Mount | |
| Height | 43.4 mm |
| Width | 472.4 mm |
| Depth | 442 mm |
| Compatible Rack Unit | 1U |
