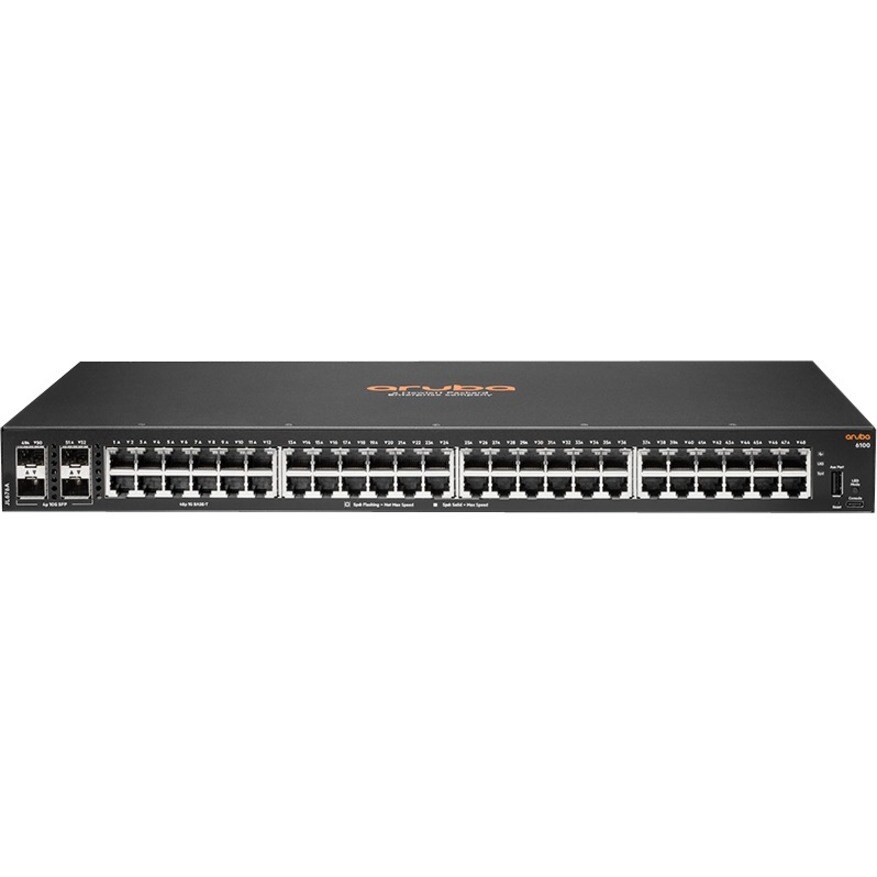

ARUBA 6100 48G 4SFP+ SWCH
ARUBA 6100 48G 4SFP+ SWCH
Product Overview
ARUBA 6100 48G 4SFP+ SWCH
Aruba 6100 Switch Series
The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.
The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes acompact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements..
- Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
- Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
- Compact and fanless 12 port model for quiet deployment
- Automated configuration and verification with Aruba NetEdit
- Software defined ready with REST APIs
- Simplify adds, moves and changes with colorless ports
Technical Specifications
| Manageable | Yes |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| 4 x 10 Gigabit Ethernet Expansion Slot |
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 44.20 W |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL676A#ABG |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | 6100 48G 4SFP+ Switch |
| Product Series | 6100 |
| Brand Name | Aruba |
| Weight (Approximate) | 3.42 kg |
| Form Factor | Rack-mountable |
| Wall Mountable | |
| Height | 43.9 mm |
| Width | 442 mm |
| Depth | 247.4 mm |
| Compatible Rack Unit | 1U |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1ab |
| IEEE 802.3az | |
| IEEE 802.3ad | |
| IEEE 802.3 | |
| IEEE 802.1x | |
| IEEE 802.1w | |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s |
